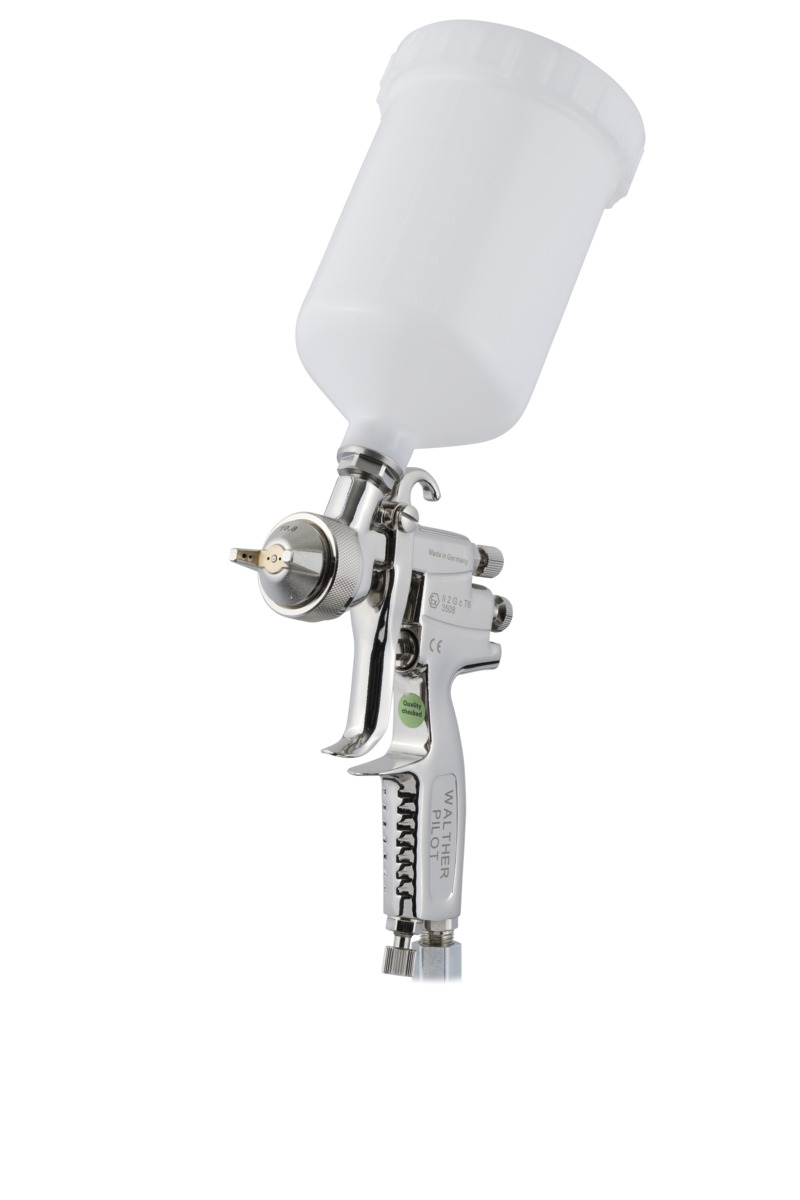

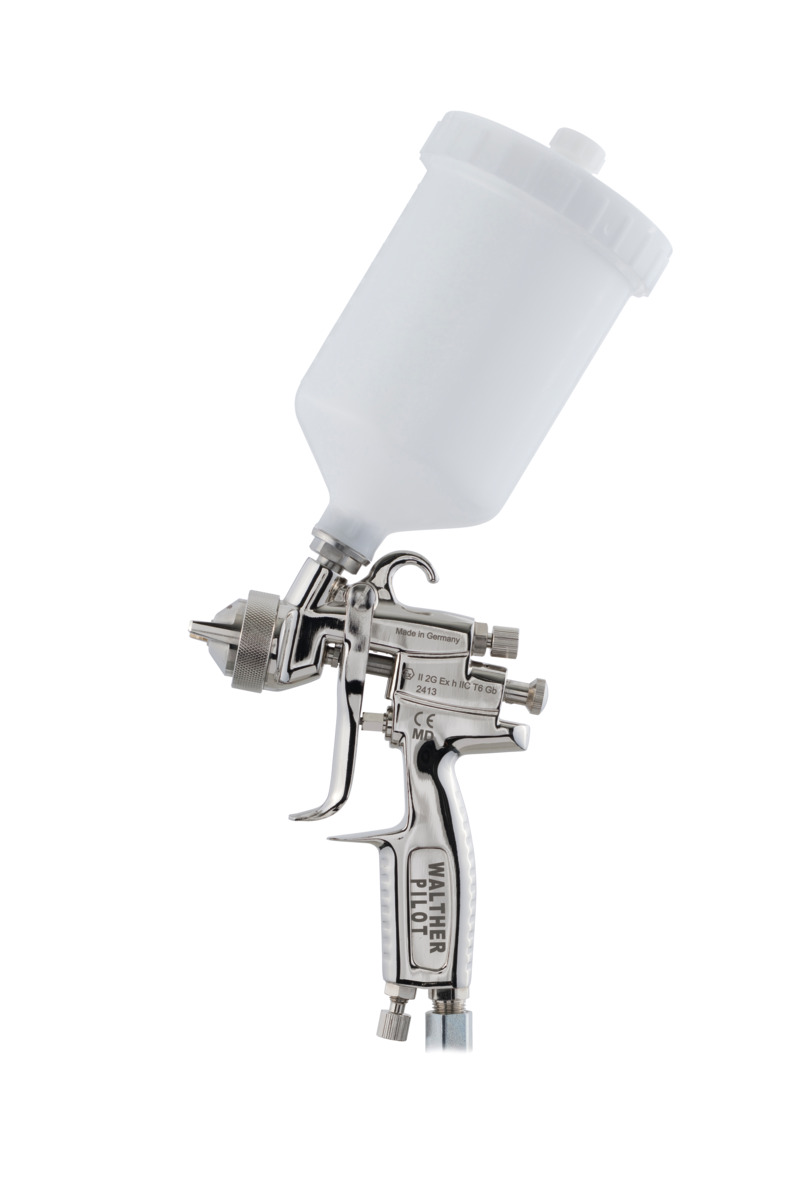

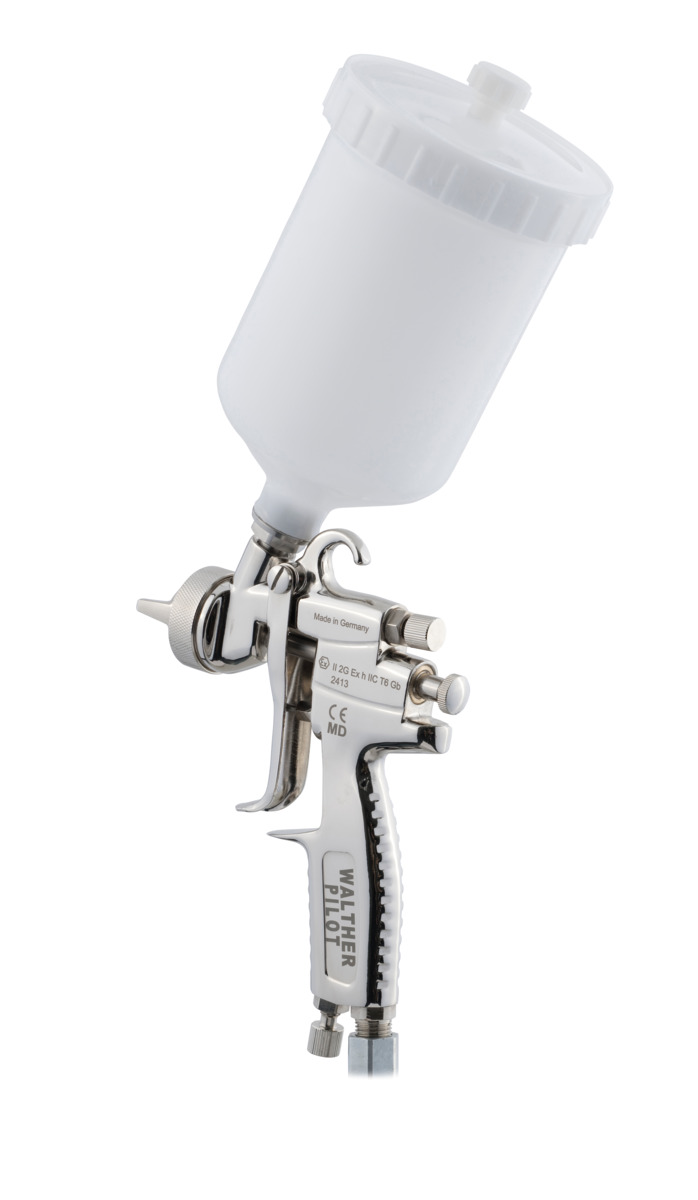

Pilot Trend FB

Spray gun for common painting jobs, with proven air cap technology. Available as a gravity cup version or with material connection, it offers great price-performance ratio.

Benefits

Benefit Checkmark

Affordable all-rounder - for universal applications

The Pilot Trend guarantees a high standard for versatile spraying work, from small details to large areas, with reliable performance.

Benefit Checkmark

Durable construction for demanding conditions

Our aluminum body, highly compacted and nickel-plated, ensures robustness and durability. In addition, all material-carrying parts are made of stainless steel.

Benefit Checkmark

Excellent surface results

Our high-precision WALTHER PILOT air cap technology guarantees first-class surface results.

Benefit Checkmark

Available versions

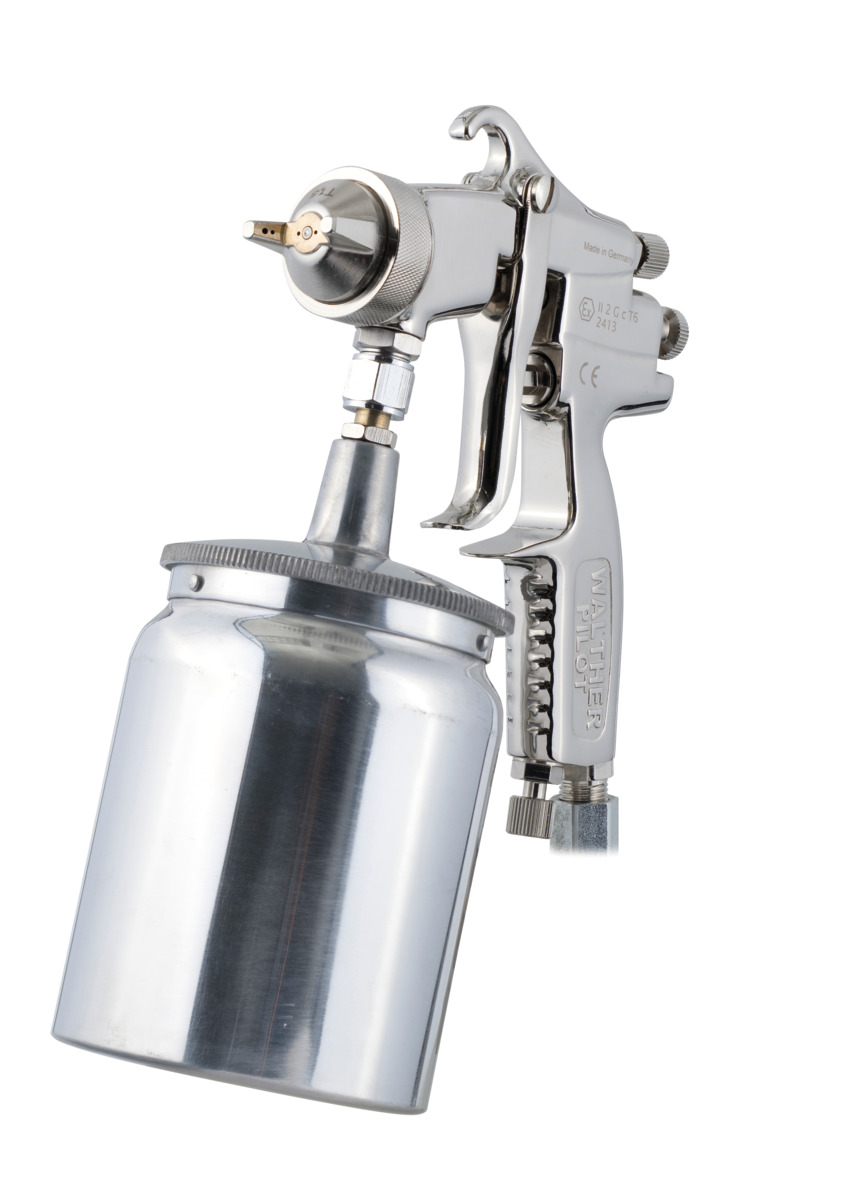

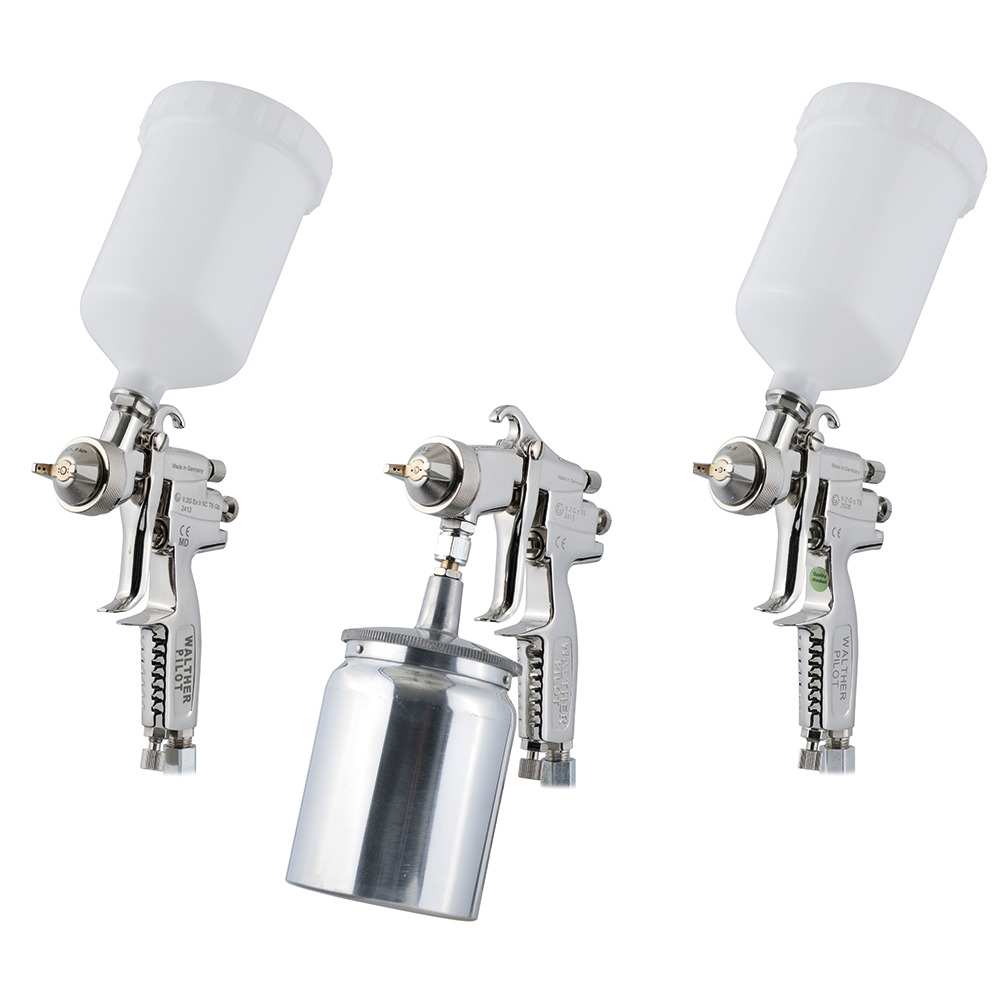

The gun is available both as a conventional atomizer unit in the standard version and in a medium-pressure version. These versions can be supplied either with a flow cup, suction cup (with medium pressure as a suspended pressure cup) or as a material connection version for pressure tanks and pumps.

Technical data

Material pressure
max. 8 bar
Sound level
85 dB(A)
Processable materials
Solvent-based
Nozzle sizes
0.5mm - 2.5mm
Operating temperature
max. 43°C
Product dimensions [LxWxH]
145x38x355 mm
Weight [net/gross]
677g / 901g

Certifications

certificate ce
certificate ex
