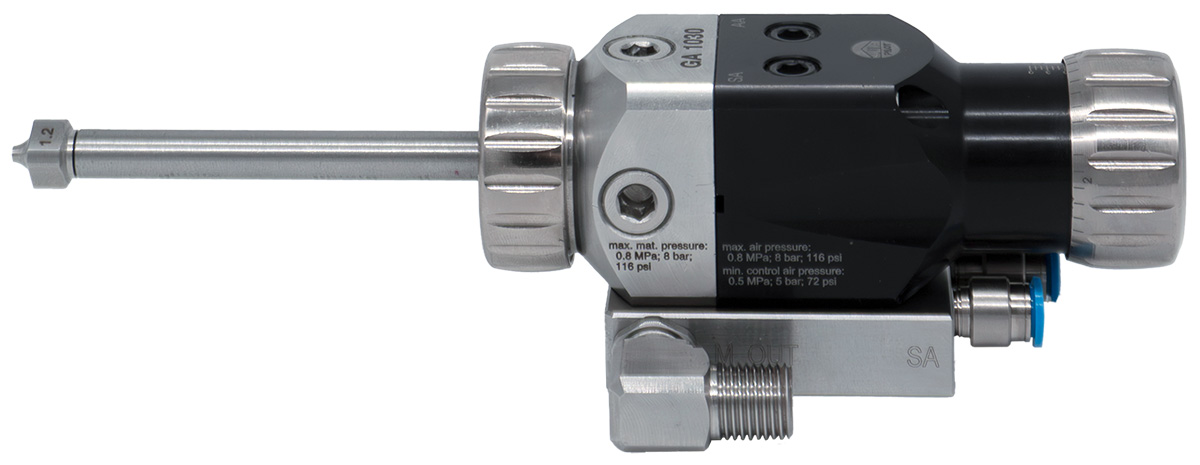

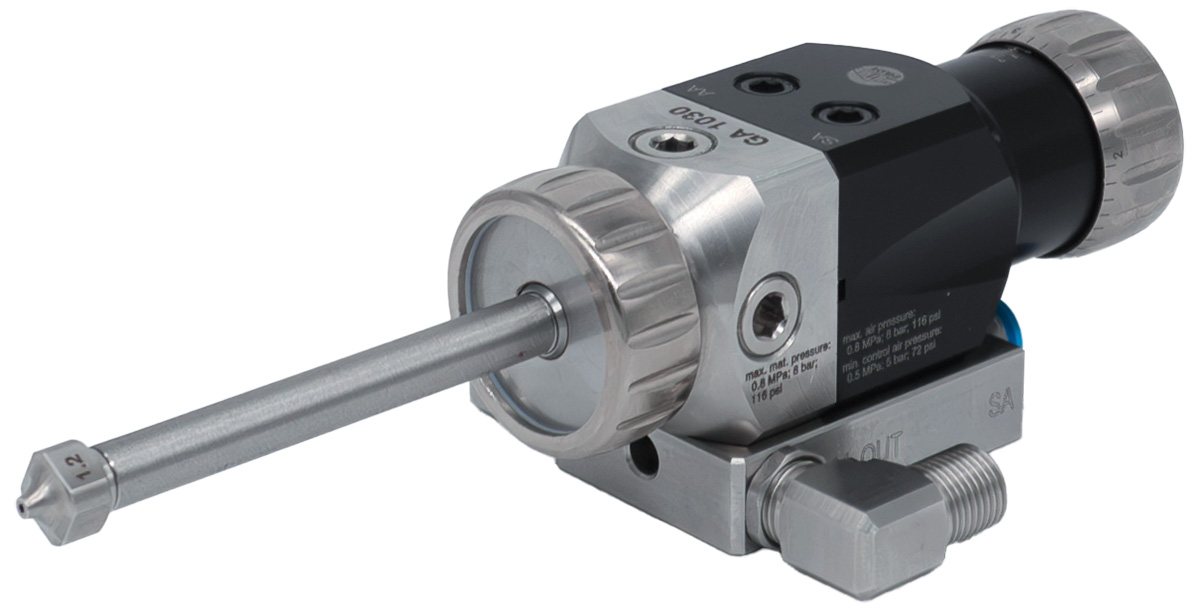

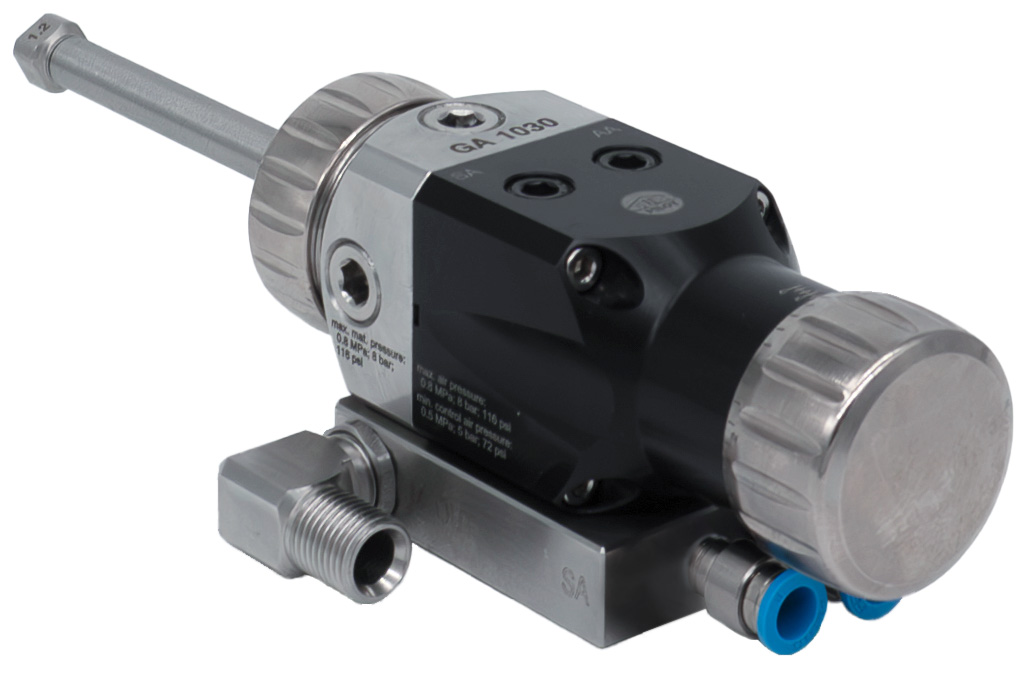

GA 1030 Extrusion

Spray gun with 100 mm extension for extrusion - particularly suitable for applying beads or dots. This allows materials to be applied quickly, efficiently and with pinpoint accuracy. The automatic gun can be freely configured in terms of control and can be operated with or without an adapter plate.

Technical data

Material pressure
max. 8 bar
Sound level
85 dB(A)
Processable materials
Solvent-based, water-based
Nozzle sizes
1.5 - 2.5mm
Operating temperature
43 °C
Product dimensions [LxWxH]
144x40x40mm (100mm extension)
Weight [net/gross]
643g / 794g

Certifications

certificate ce
certificate ex
