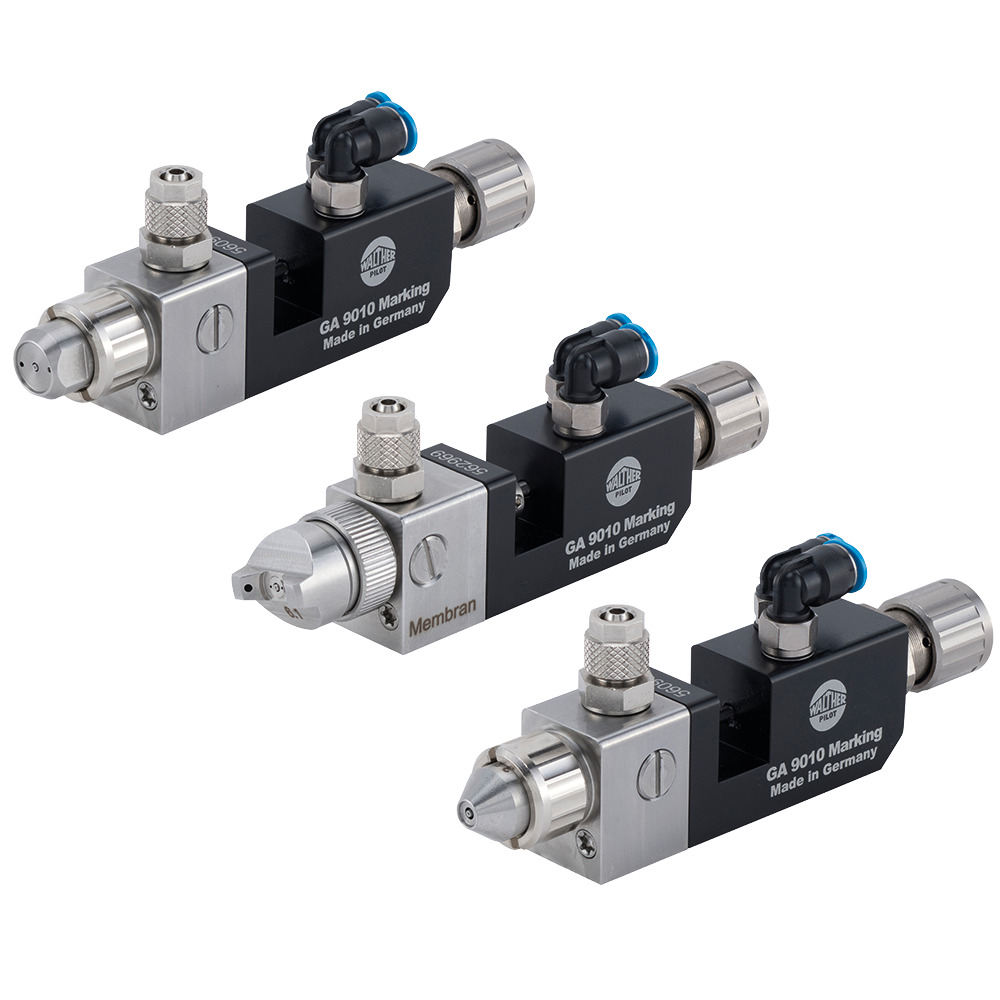

GA9010

Precision atomizer for sharp-edged coatings of paints, inks and adhesives. Available as a packing and membrane version, optionally with adapter plate and rinsing device. Ideal for productions with short cycle times thanks to extremely short switching times.

Benefits

Benefit Checkmark

Extremely short switching times (opening, spraying, closing) make it ideal for use in productions with short cycle times.

Benefit Checkmark

Guaranteed by specially adapted flushing devices and a robust design

Benefit Checkmark

Marking as a result of weld seam testing on sheet metal and tubes, marking of rejects, marking of good parts, machine-recognizable marking as a result of leak testing, precision spraying, etc.

Technical data

Material pressure
max. 6 bar
Sound level
87 dB(A)
Processible materials
Solvent-based, Water-based, UV/moisture sensitive
Nozzle sizes
0.5mm - 1.5mm
Product dimension [LxWxH]
120x23x50mm
Weight [net/gross]
295g / 394g

Certifications

certificate ce
certificate ex
