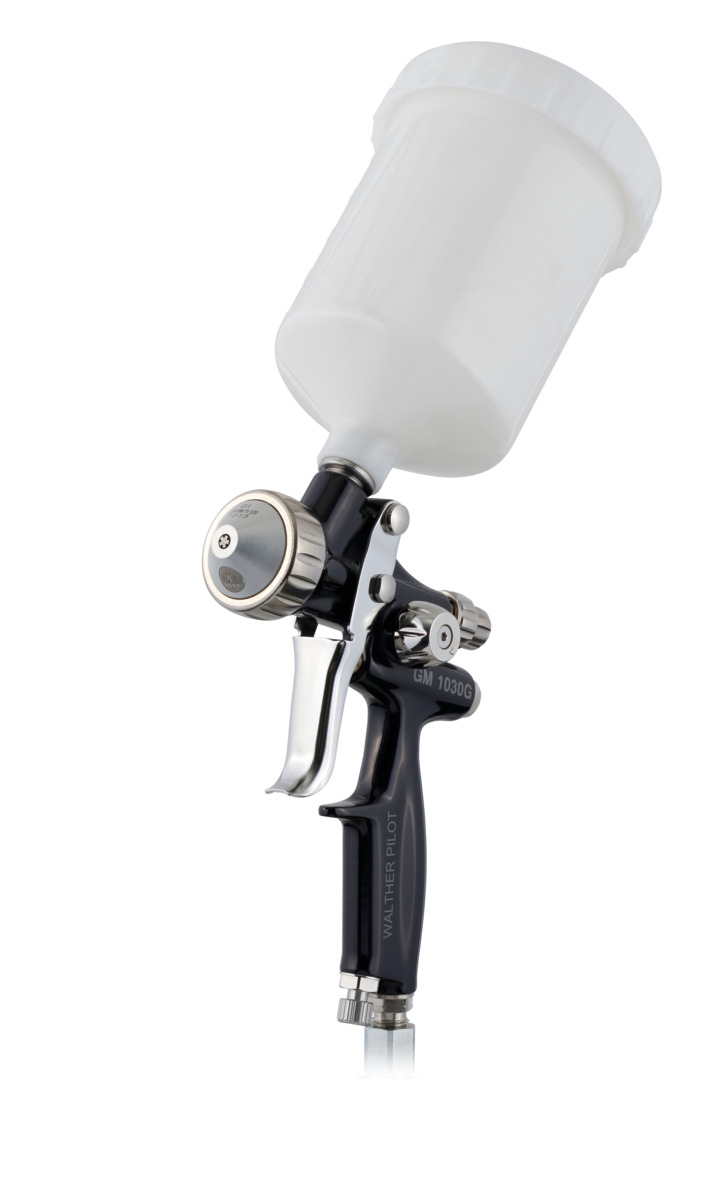

Universal manual spray gun for first-class coating results with high application efficiency and versatile application options. Ideal for paints, release agents, dispersion and solvent-based adhesives and other media.
The flow cup gun is ideal for small-area coating applications and touch-up work, such as in the wood, metal or plastics industries. Suitable for all material types as all wetted parts are made of stainless steel. High flexibility due to a wide range of nozzle sizes and air caps.
Application efficiency of up to 88%. Excellent atomization quality and low paint mist thanks to optimized air channel and 12-way air distribution nozzle.
Individual and precise material flow with fixable needle stroke adjustment. Large material and air passages of the components allow very fast working.
Due to the two-part nozzle, it is sufficient to replace only the nozzle head instead of the complete nozzle if necessary. Long-life needle packings and solvent-resistant polyethylene seals contribute to high availability.
Easy positioning of the air cap without loosening the screw ring. Individual adjustment of the spray jet width with just one rotary knob - from flat to round jet. Fatigue-free working thanks to ergonomic design and optimum weight distribution.
| Material pressure | max. 8bar |
|---|---|
| Sound level | 85 dB(A) |
| Processable materials | Solvent-based, Water-based |
| Nozzle sizes | 0.5mm - 2.5mm |
| Operating temperature | 43 °C |
| Product dimensions [LxWxH] | 350x40x180mm |
| Weight [net/gross] | 663g / 887g |
