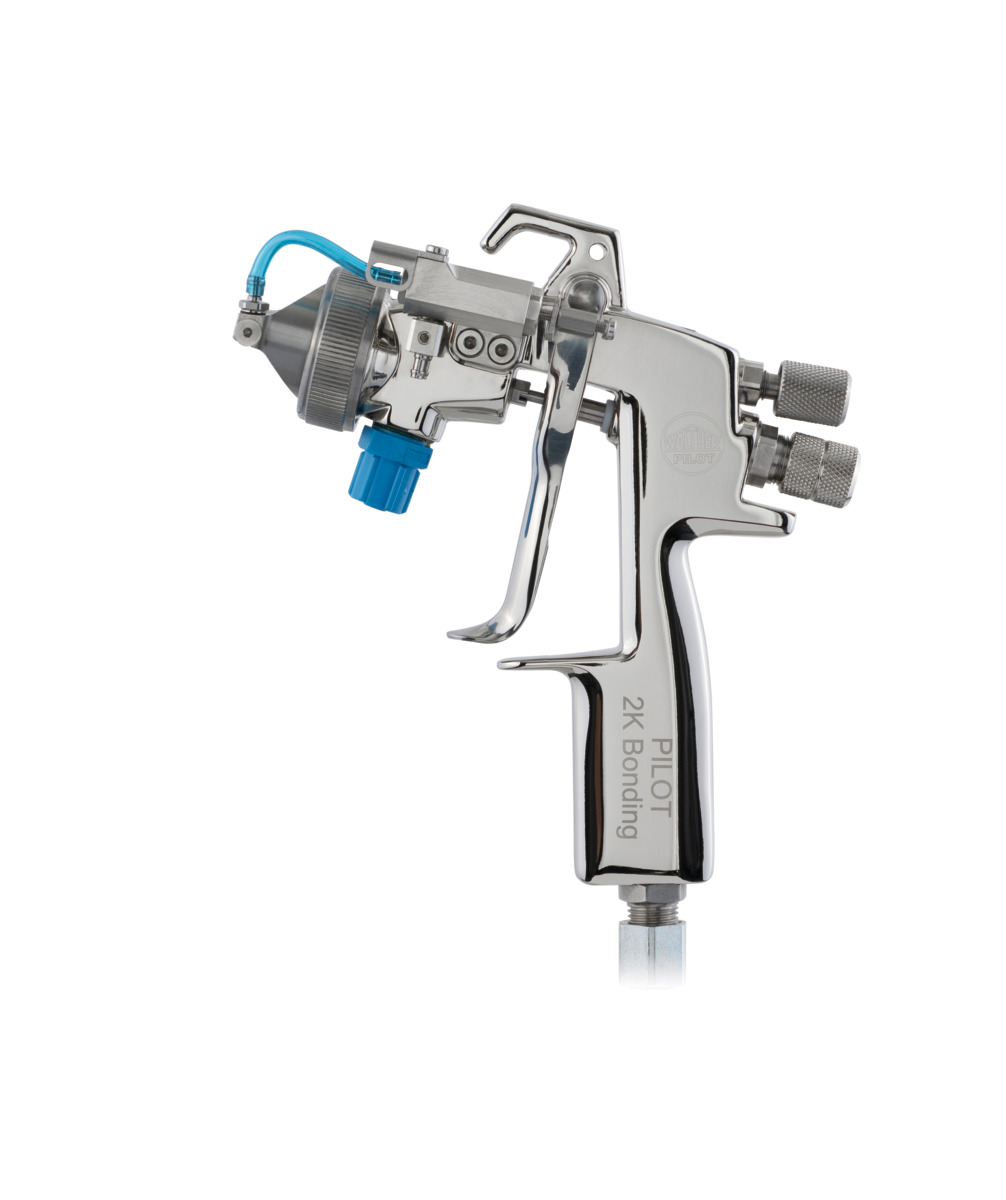

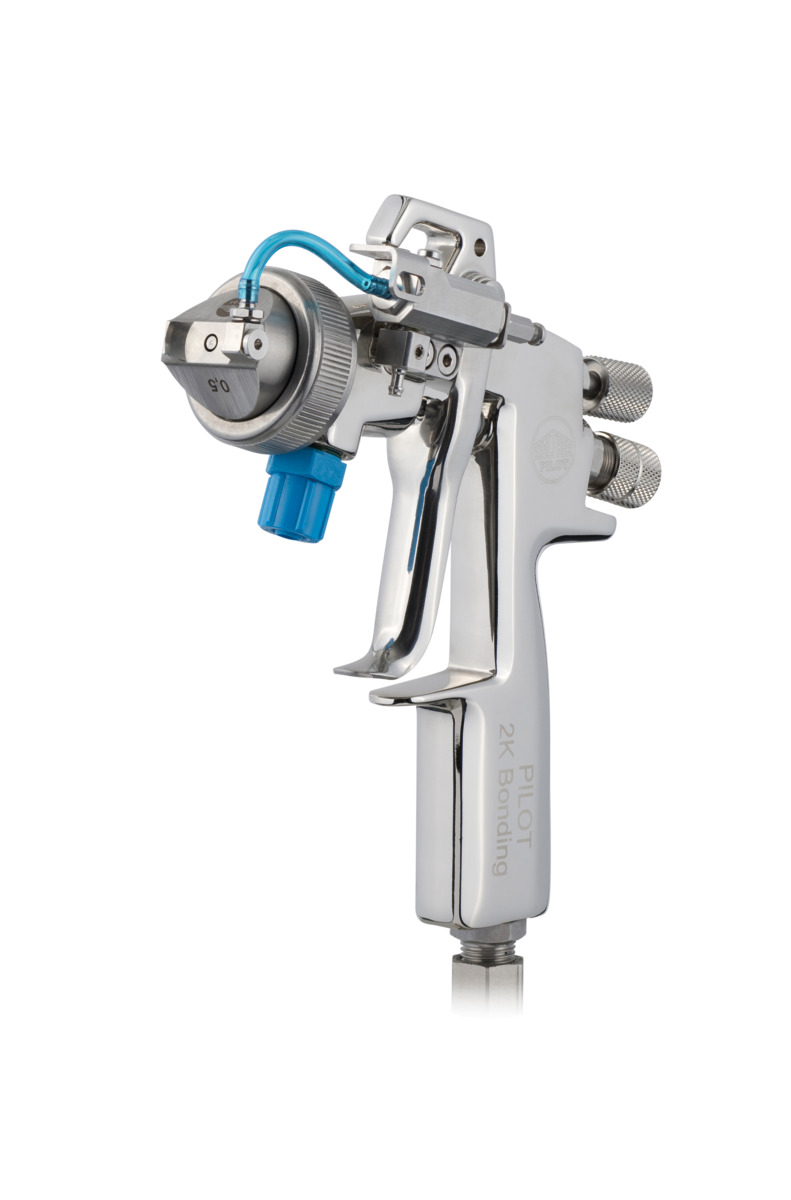

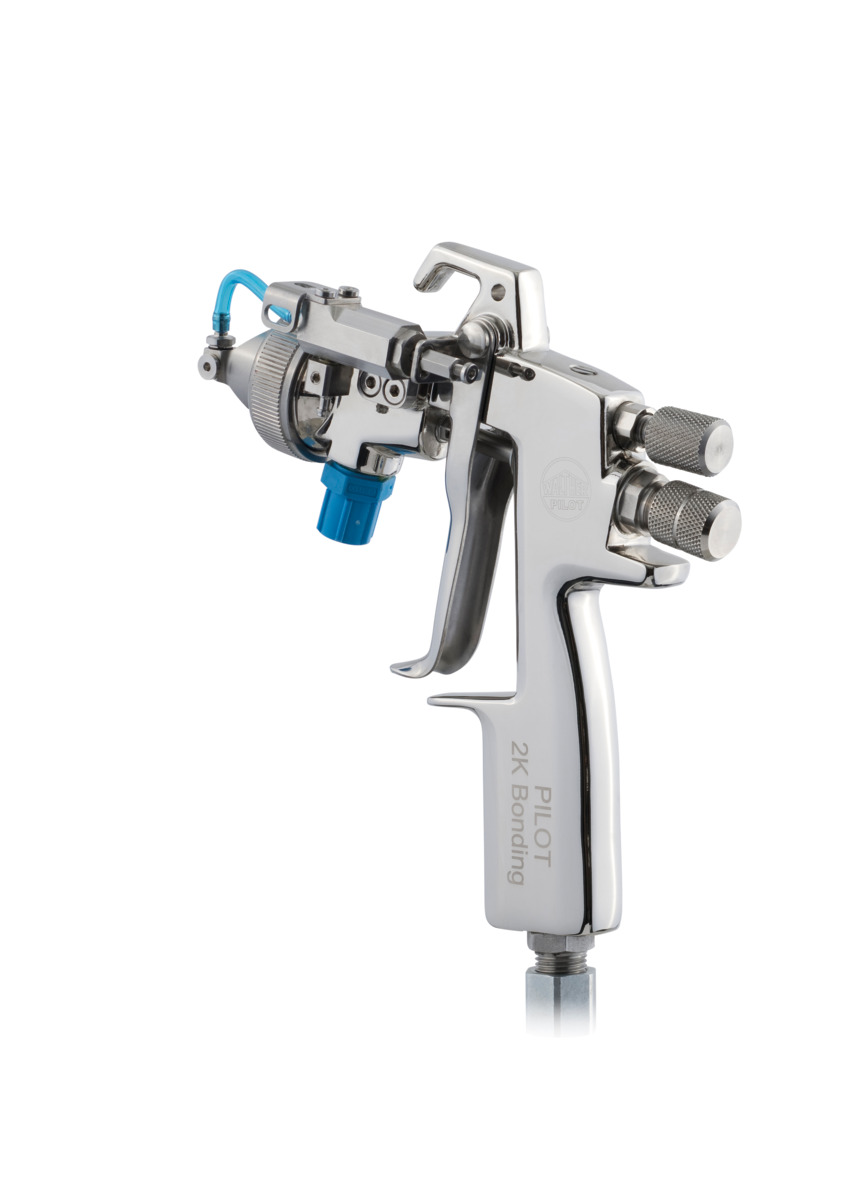

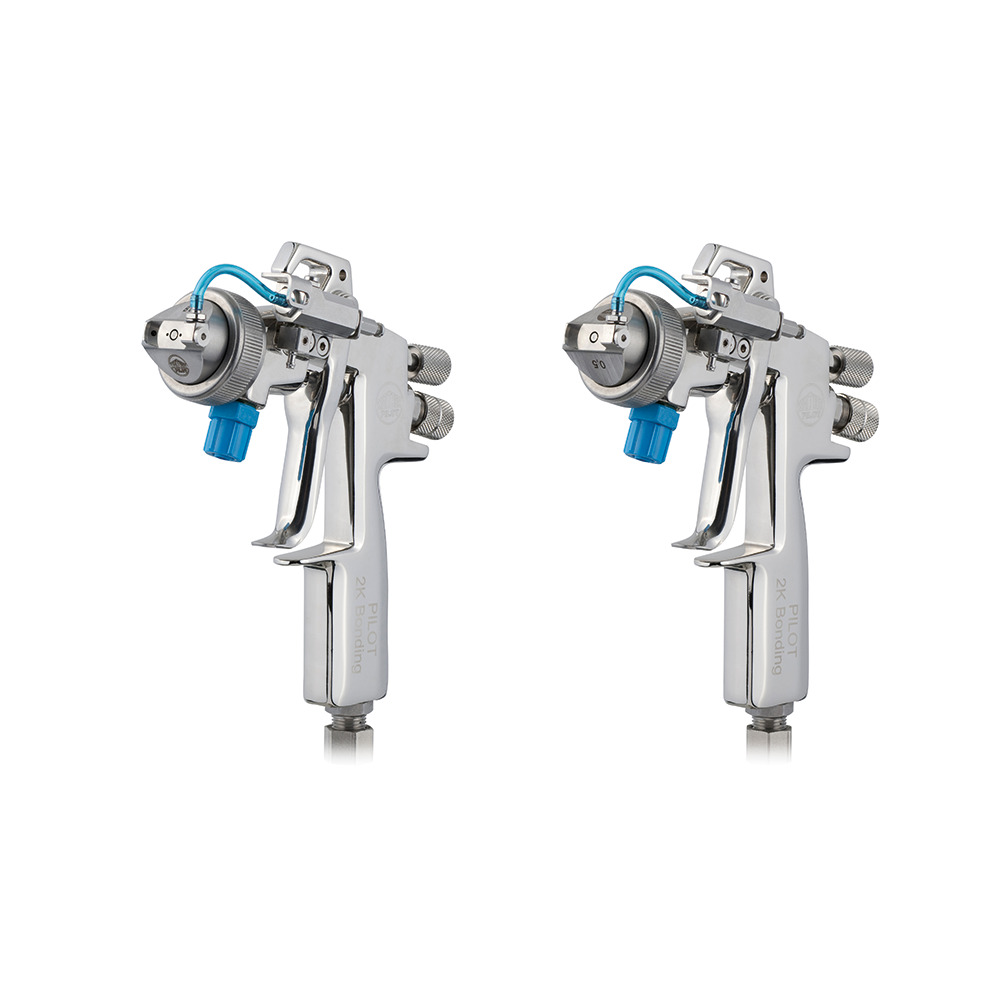

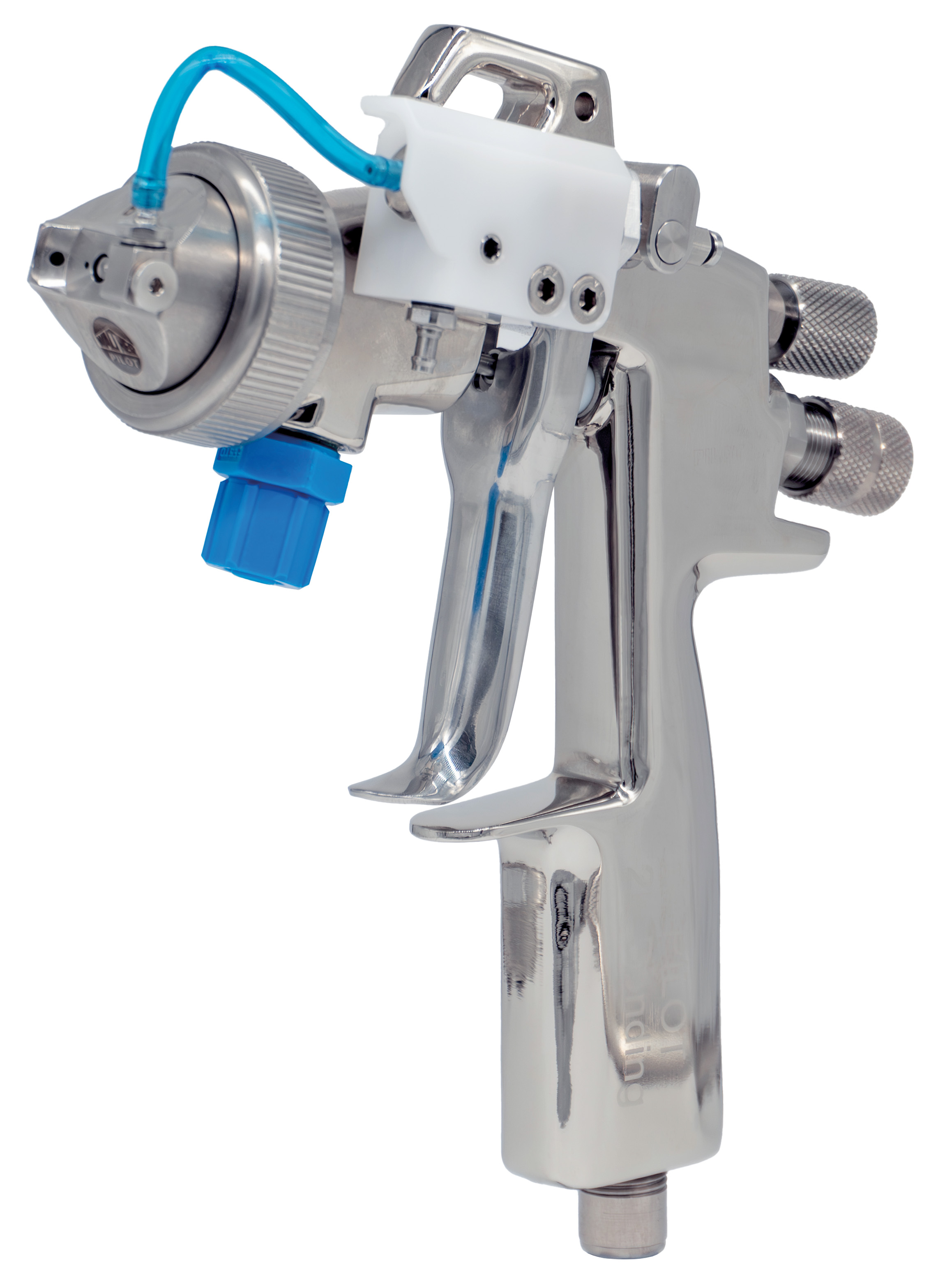

Pilot 2K-Bonding

Name: Pilot 2K-Bonding
Brand: WAGNER

Two-component dispersion adhesive gun for precise application of 2-component adhesive using the external mixing method. Mixing ratios of approx. 4:1 to 12:1 can be achieved with precise round wide jet control and various air cap combinations.

Request quote now

Benefits

Precise adjustment options

The version is equipped with a round wide jet control to set the exact spray jet required. Thanks to the combination options of the air head, mixing ratios of approx. 4:1 to 12:1 can be achieved.

B-component

The B component is equipped with a material quantity control to adjust the activator as required. The material flow is throttled by turning the adjusting screw.

Optimum application

Material consumption is reduced and the exact mixing ratio is achieved.

Easy handling

The spray gun is equally suitable for left and right-handed users

Technical data

Material pressure A-component

max. 6 bar

Material pressure B-component

max. 3 bar

Sound level

83 dB(A)

Processable materials

Water-based

Nozzle sizes A-Component

0.8mm - 1.4mm

Nozzle sizes B-Component

0.3mm - 0.5mm

Operating temperature

max. 43°C

Product dimensions [LxWxH]

144x50x183 mm

Weight [net/gross]

568g / 792g

Maximum viscosity A-component

approx. 1500 mPas

Maximum viscosity B-component

approx. 10 mPas

Certifications

Customer references

Application examples from various industries will give you an insight into how our products and solutions are used in practice.

Go to customer references

Downloads

Operating manual Pilot 2K-Bonding

PDF | 551.97 KB
