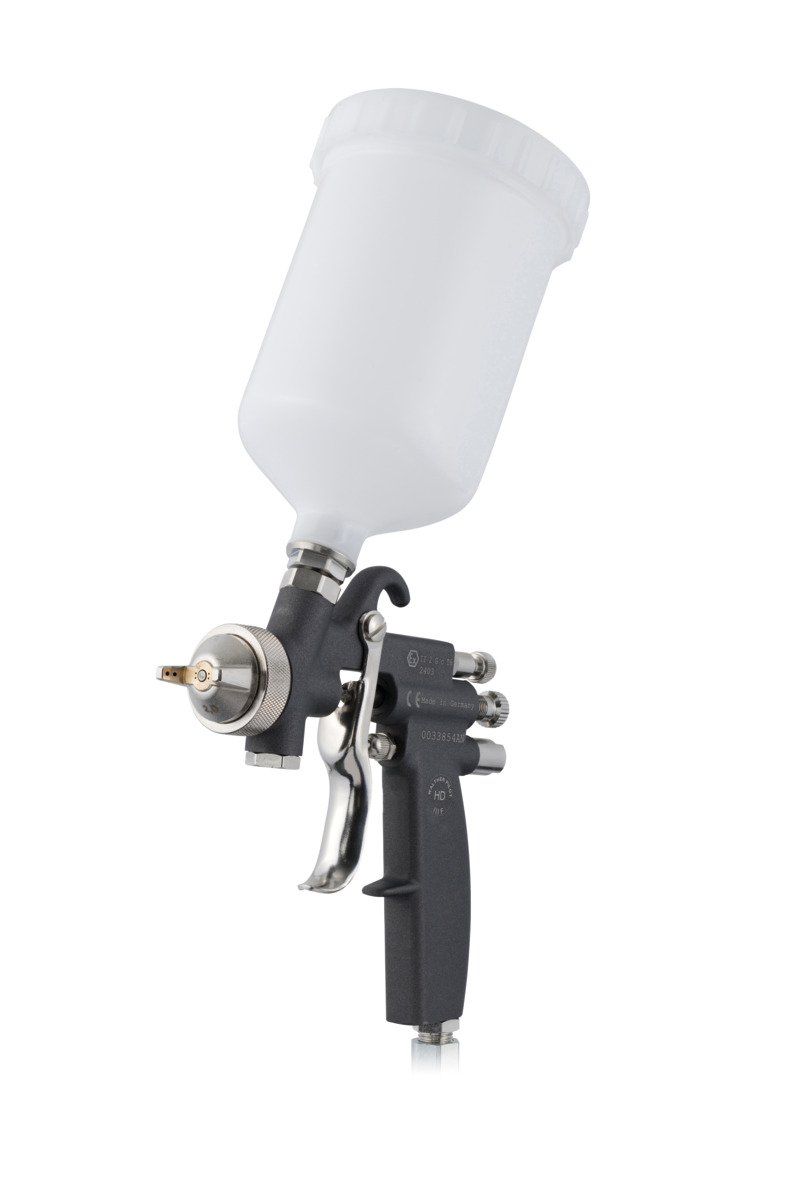

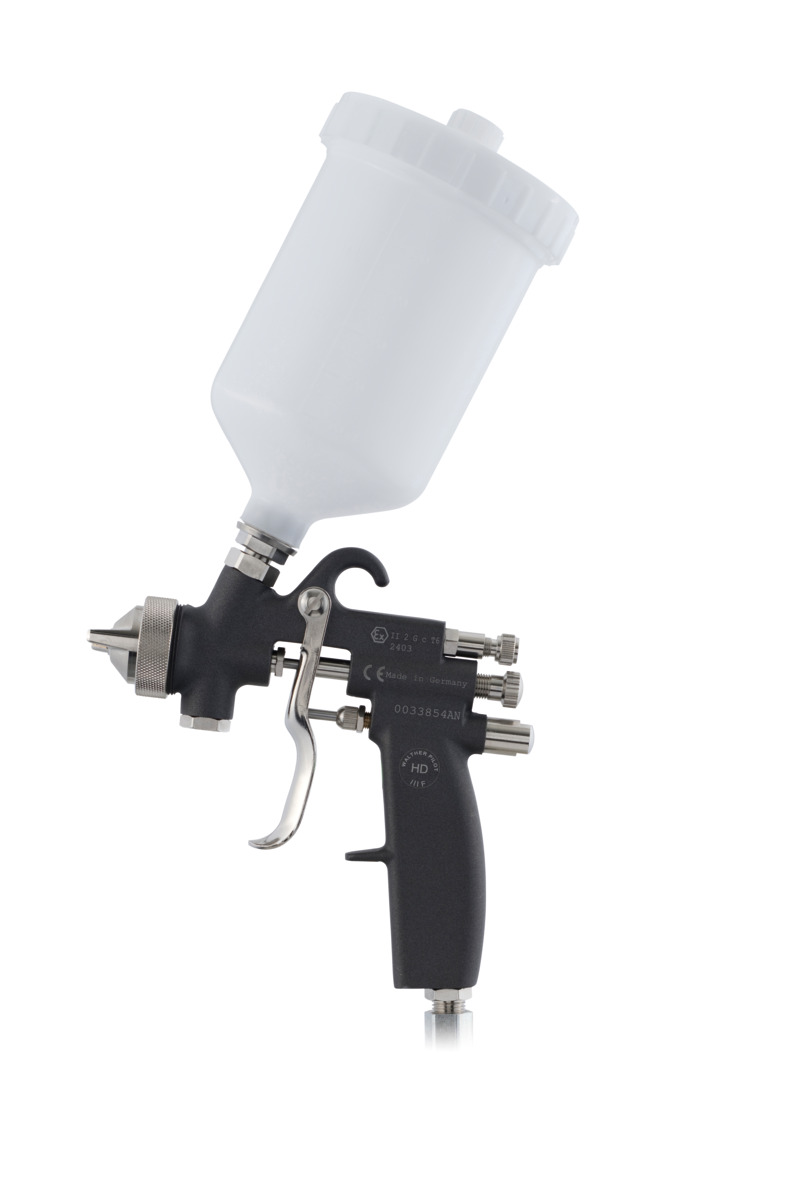

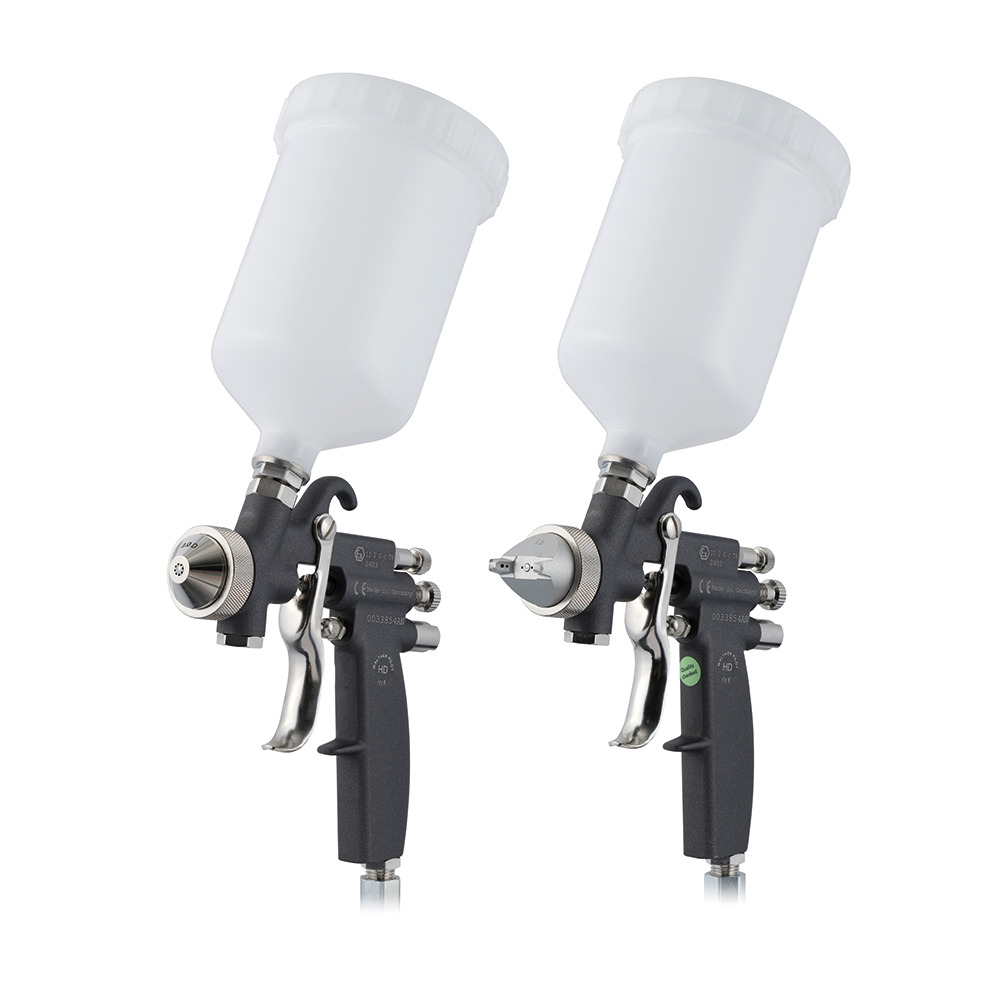

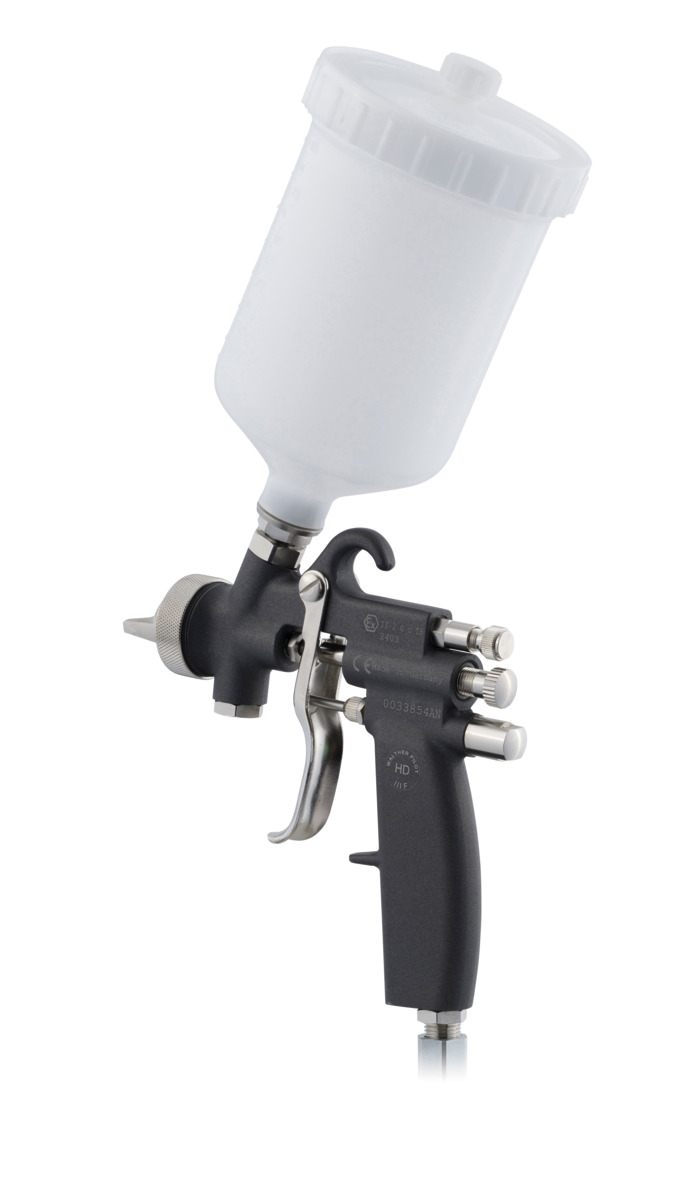

Pilot III-F FB

Overview

Versatile gun model for all common spraying jobs. Due to the PTFE-coated body, the PILOT III F is easy to clean. The material feed can be selected as desired. In no time at all, the flow cup can be dismantled, the opening closed and a material hose connected instead.

Benefits

Benefit Checkmark

High-precision nozzle-aircap technology, for finest atomization, optimum reproducibility and high application efficiency.

Benefit Checkmark

Basically with round/wide jet control as well as material quantity control.

Benefit Checkmark

All material wetted parts made of stainless steel. Water-based paints and aggressive media can be processed without any problems.

Benefit Checkmark

The material feed can be selected as desired. In no time at all, the flow cup can be dismantled, the opening closed and a material hose connected instead.

Technical data

Atomization
Conventional / HVLP+
Nozzle size
Ø 0.5 - 3.5mm
Processable materials
Solvent-based
Version
Gravity cup, material connection
Weight gravity cup
438g
Weight material connection
542g
Material feed
Aluminium
Material connection
G 3/8"
Air inlet
G 1/4"
