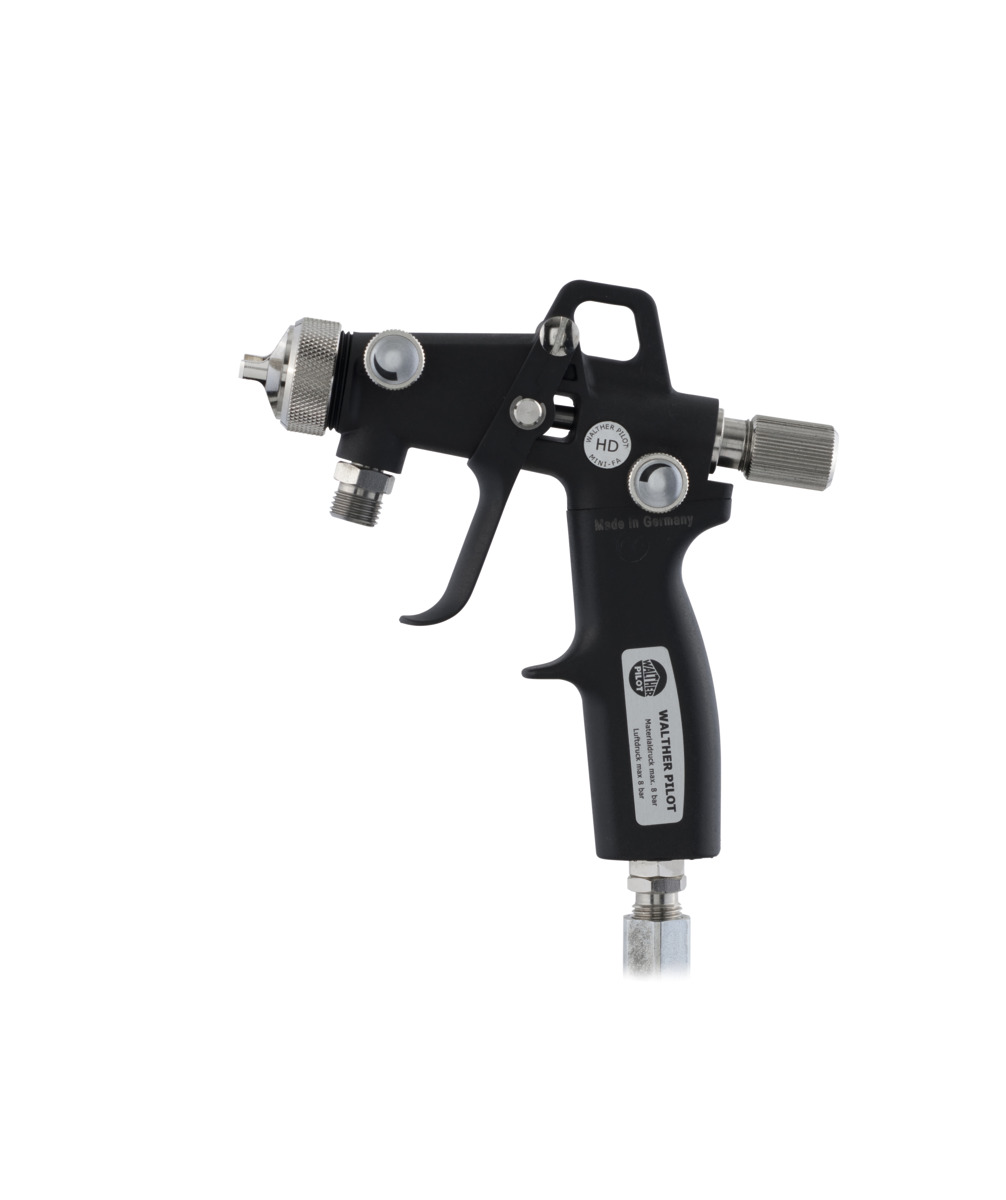

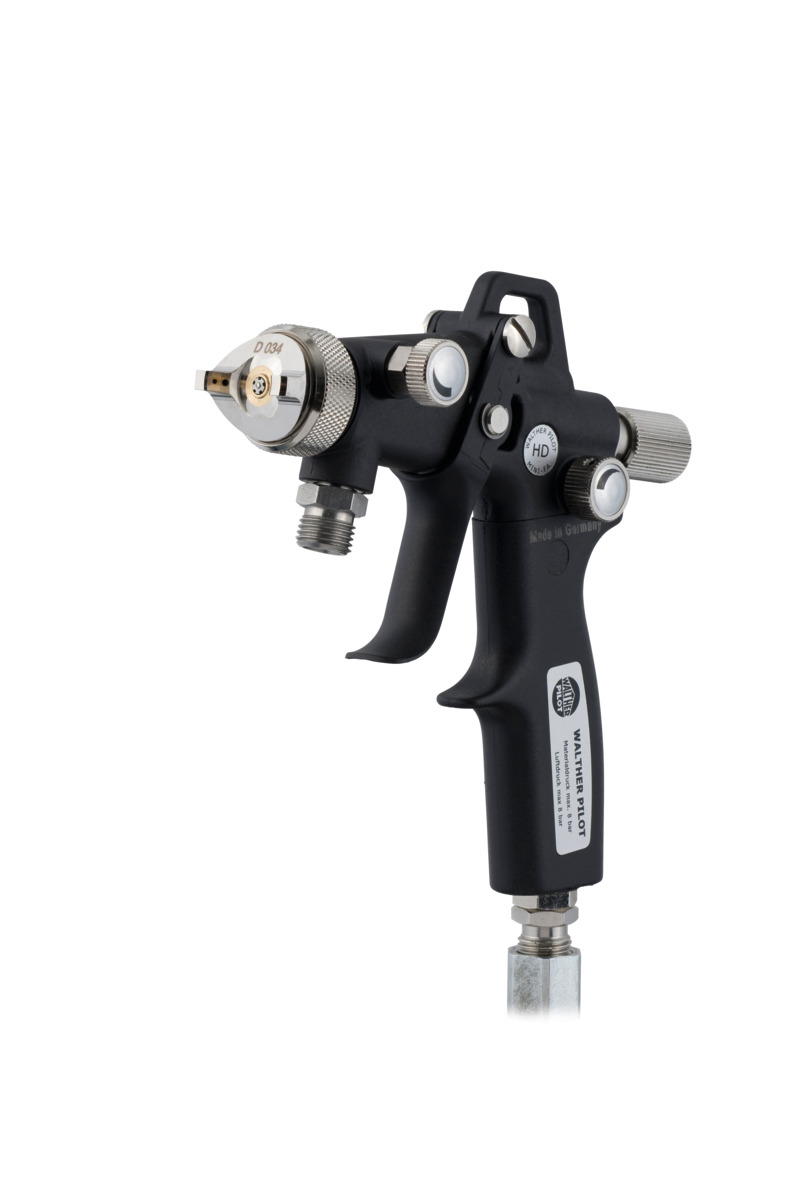

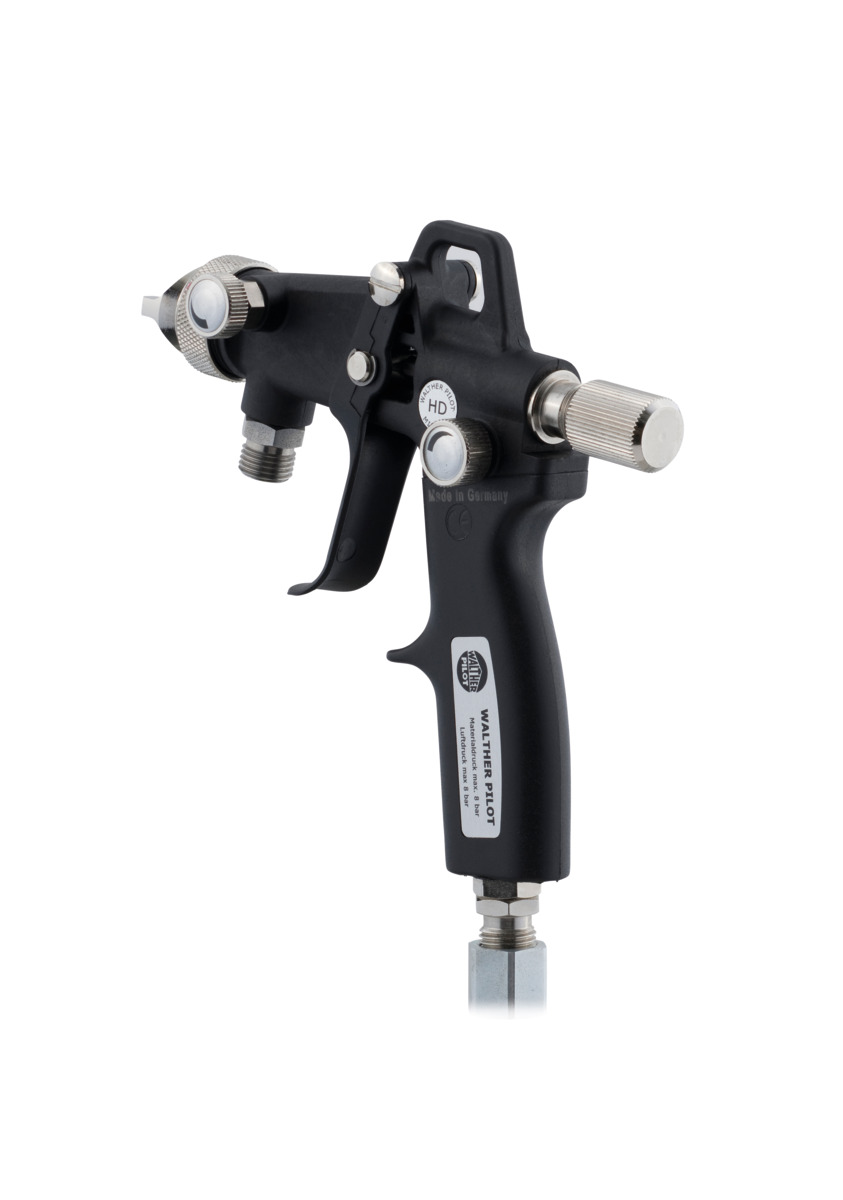

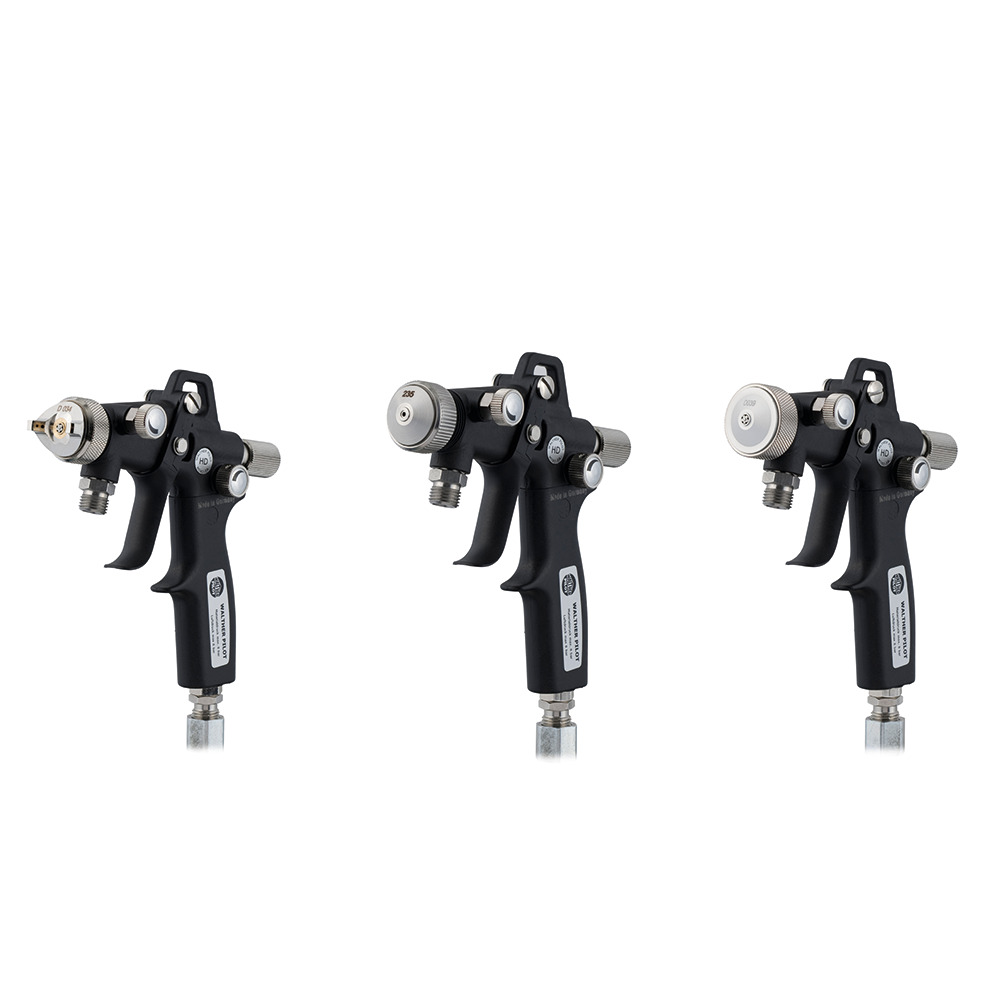

Pilot Mini FA

Uniquely lightweight manual spray gun made of high-strength plastic for painting small parts as well as touch-up and decorative work. Water-based materials and solvent-based adhesives can be processed without any problems.

Benefits

Benefit Checkmark

Versatile application options

The Pilot Mini is ideal for a wide range of applications, including spot repair, touch-up work, leather coating and chocolate application.

Benefit Checkmark

Material processing

With material-carrying parts made of high-quality stainless steel, the gun ensures a long service life and enables water-based materials to be processed with ease.

Benefit Checkmark

Lightweight and easy to handle

Thanks to its lightweight design and high-strength plastic housing, the spray gun lies comfortably and warmly in the hand, enabling fatigue-free working.

Benefit Checkmark

Large selection of nozzles

The spray gun offers a large selection of nozzles with diameters from 0.3 to 2.2 mm, allowing it to be adapted to different projects and requirements. A version made of V4A (1.4571, AISI 316 Ti) is available for applications that require particularly high corrosion resistance.

Technical data

Material pressure
max. 8 bar
Sound level
85 dB(A)
Processable materials
Solvent-based, Water-based
Nozzle sizes
0.3mm - 2.2 mm
Operating temperature
max. 43°C
Product dimensions [LxWxH]
135x43x170mm
Weight [net/gross]
279g / 502g

Certifications

certificate ce
certificate ex
