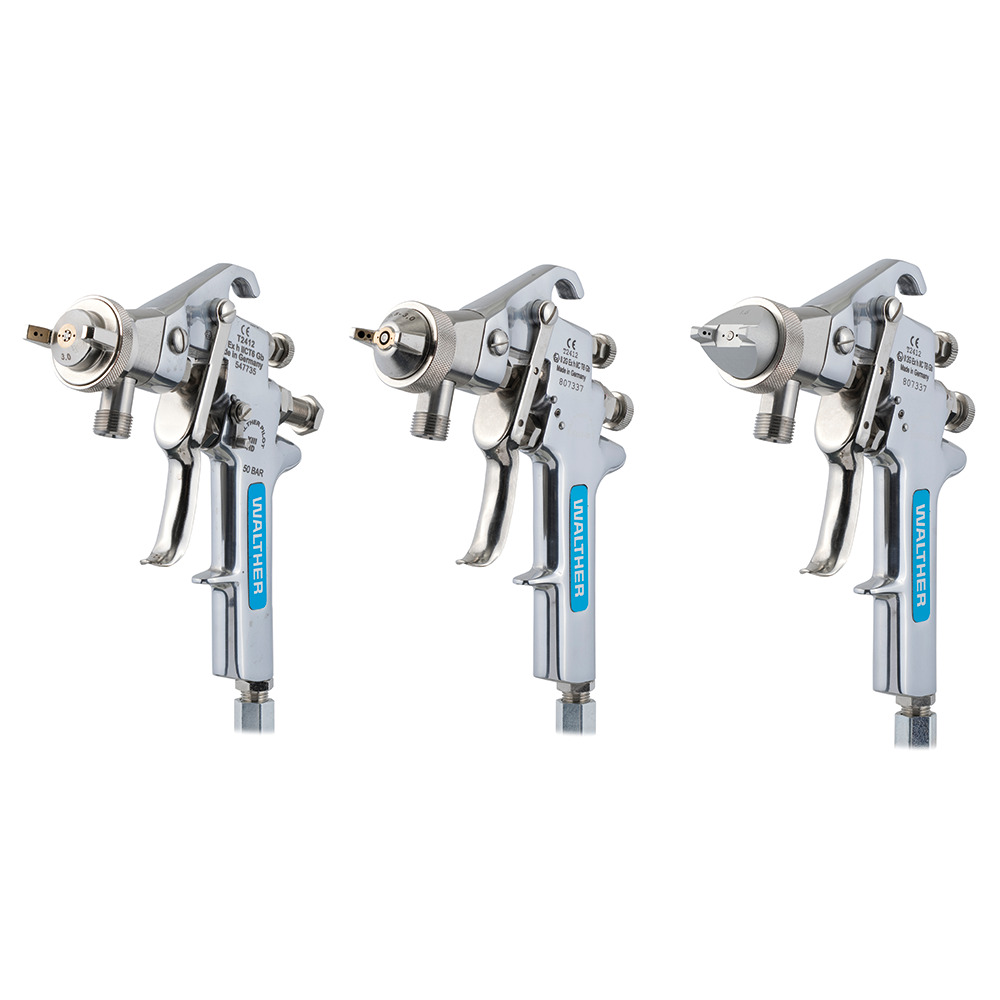

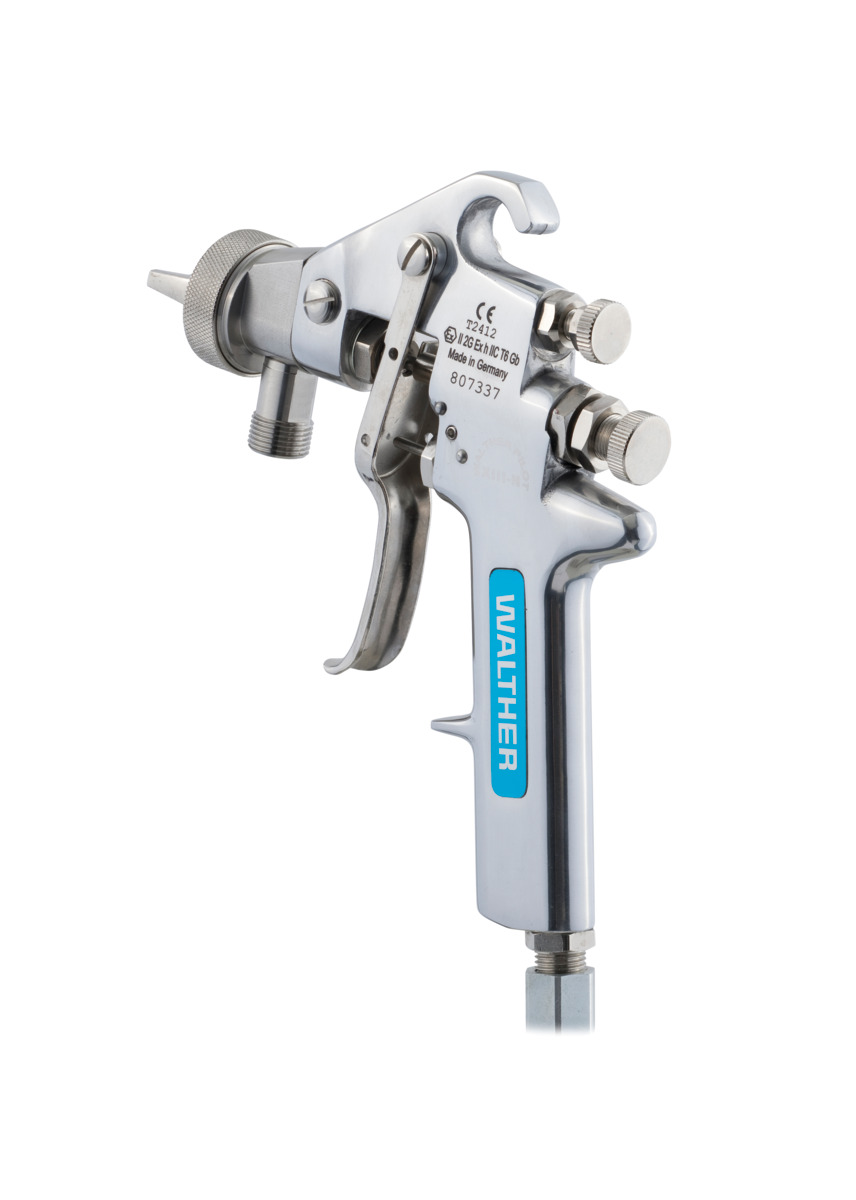

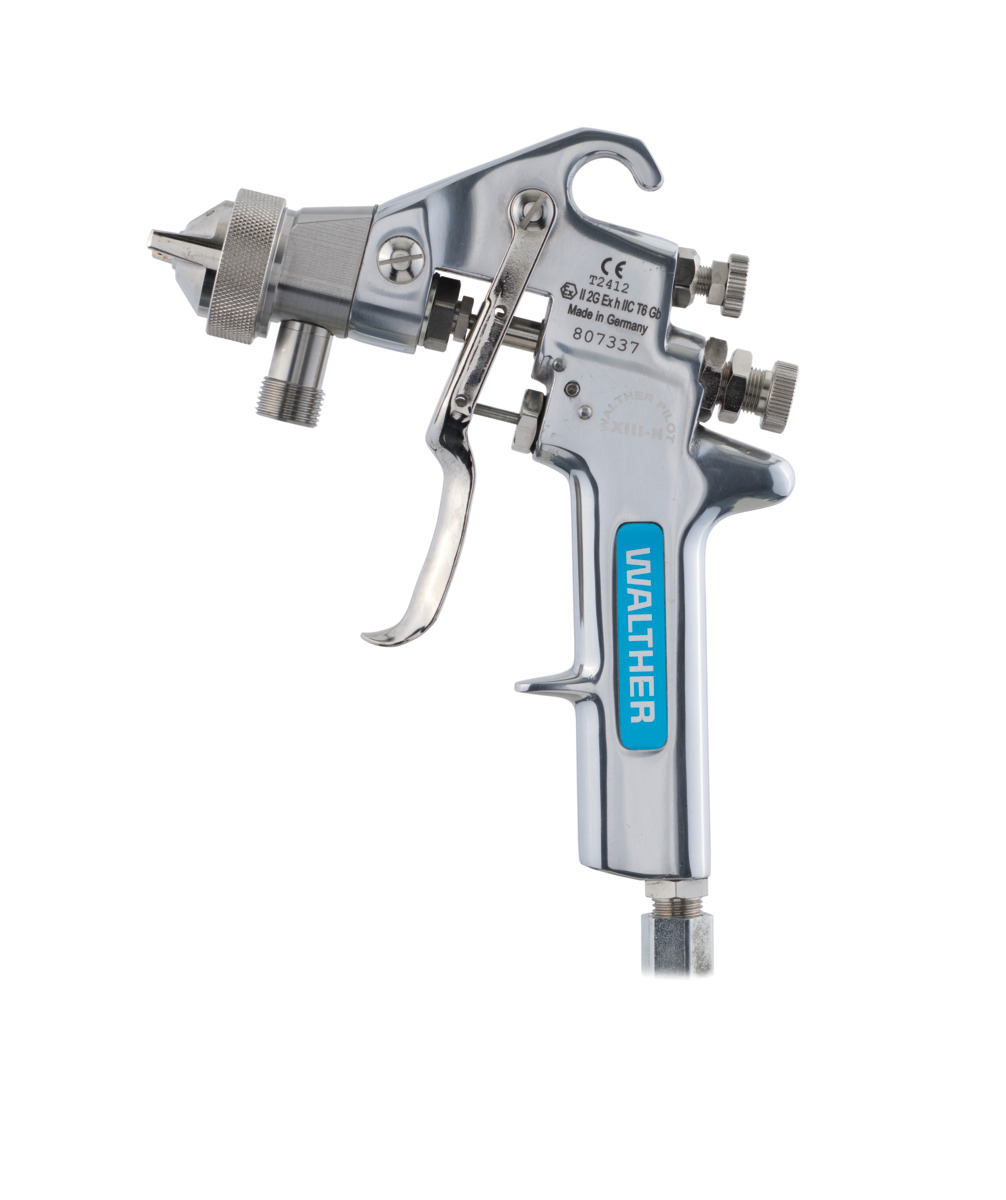

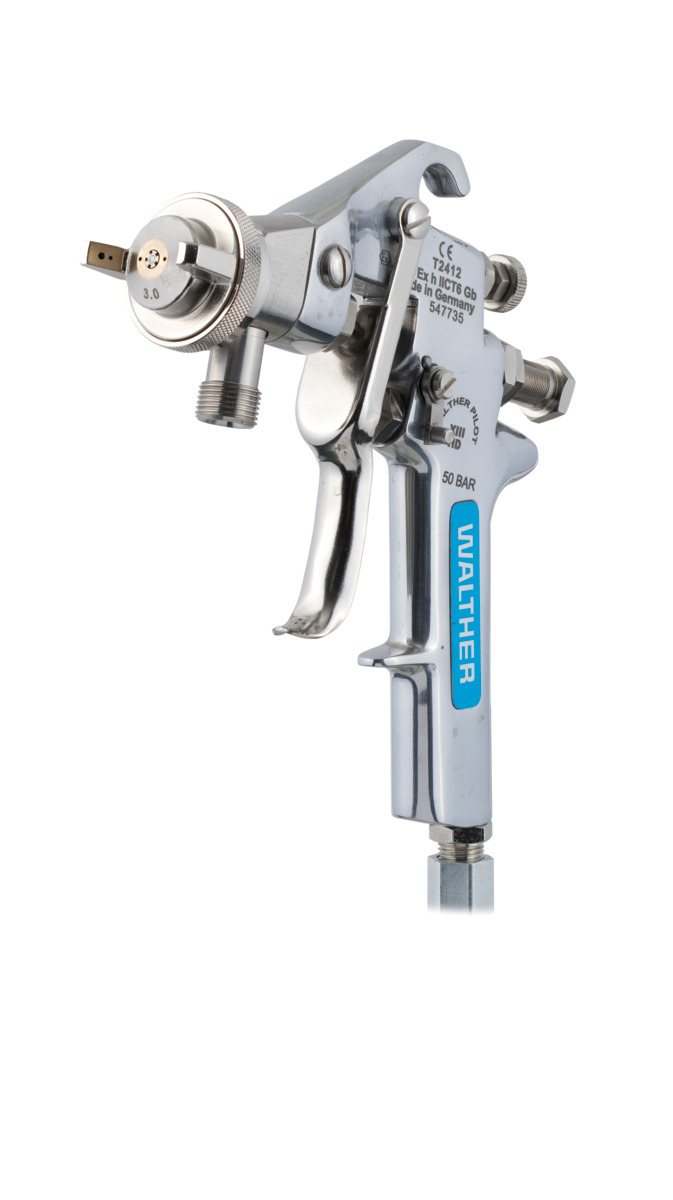

Pilot XIII FA

Robust heavy-duty spray gun for paints and aggressive media. With a wide range of configuration options such as gravity cup, material connection, material circulation and a 50 bar version, it can be flexibly adapted to different requirements.

Benefits

Benefit Checkmark

Water-based coatings and aggressive media can be processed without any problems.

Benefit Checkmark

Wide range of nozzle sizes for a variety of applications.

Technical data

Technical data
Material pressuremax. 8 bar
Sound level85 dB(A)
Processable materialsSolvent-based, Water-based
Nozzle sizes0.8mm - 3.5mm
Operating temperaturemax. 42°C
Product dimensions [LxWxH]170x38x210 mm
Weight [net/gross]715g / 939g

Certifications

certificate ce
certificate ex

Customer references

Application examples from various industries will give you an insight into how our products and solutions are used in practice.
Go to customer references
