LDG 10

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

Technical data

Material
Stainless steel
Pressure range
6 bar

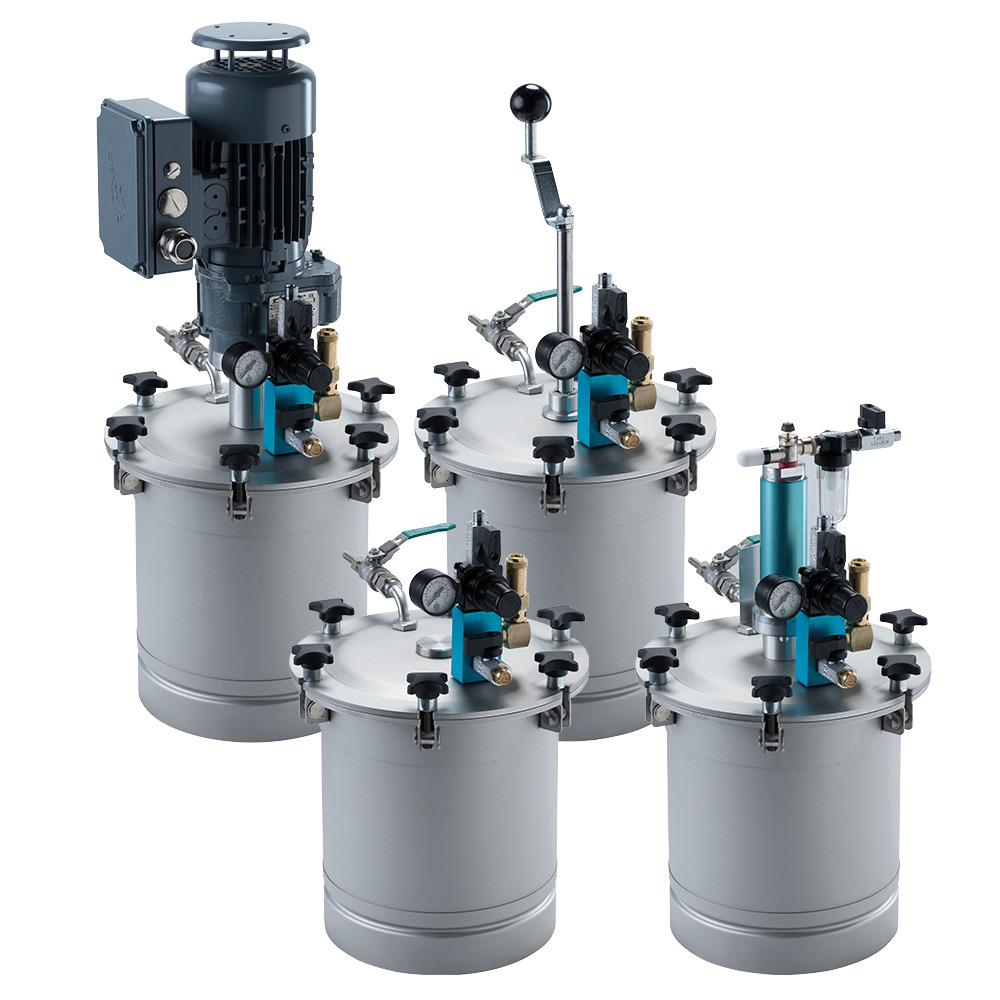

Agitator optional

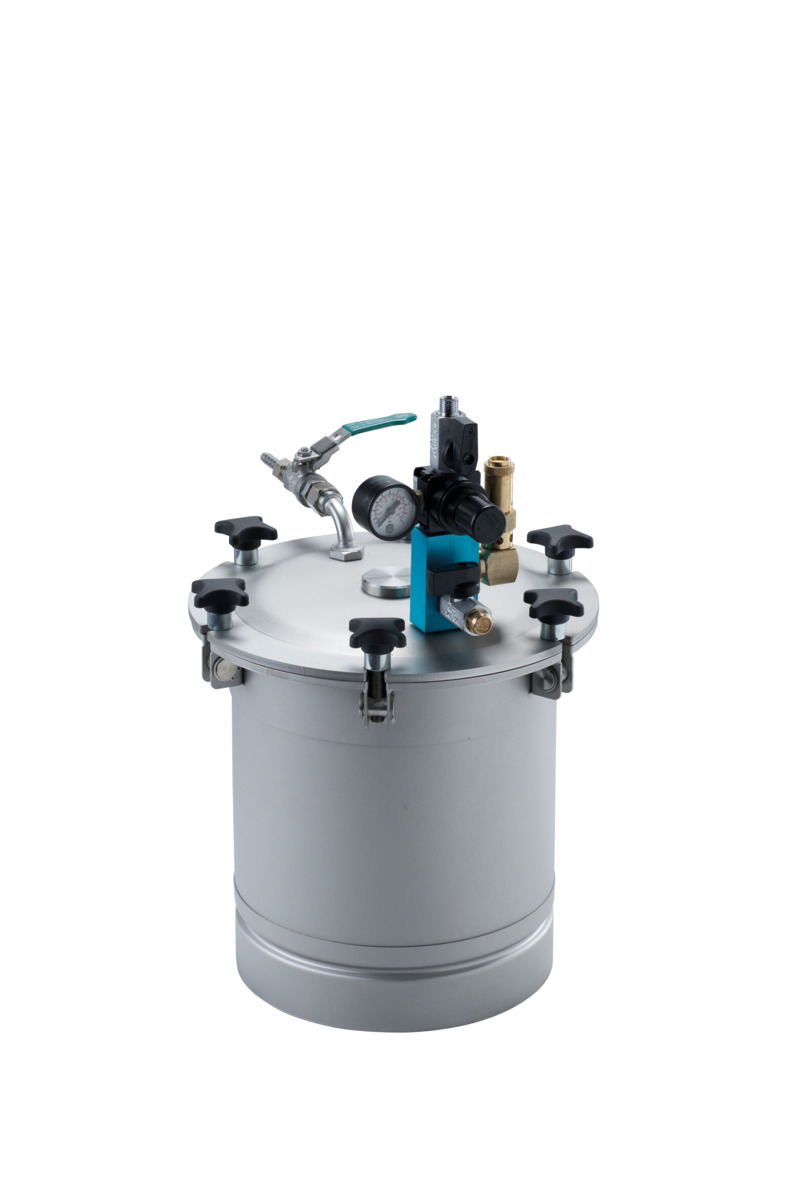

without agitator

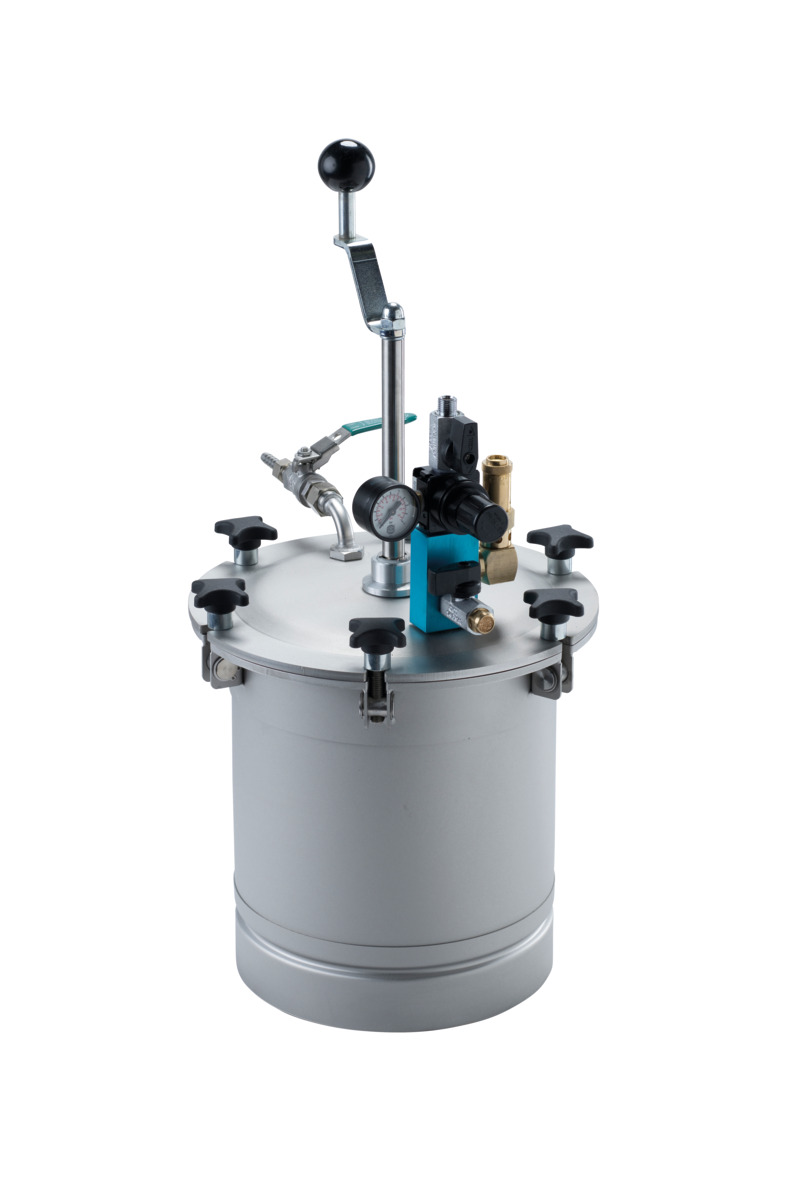

manual agitator

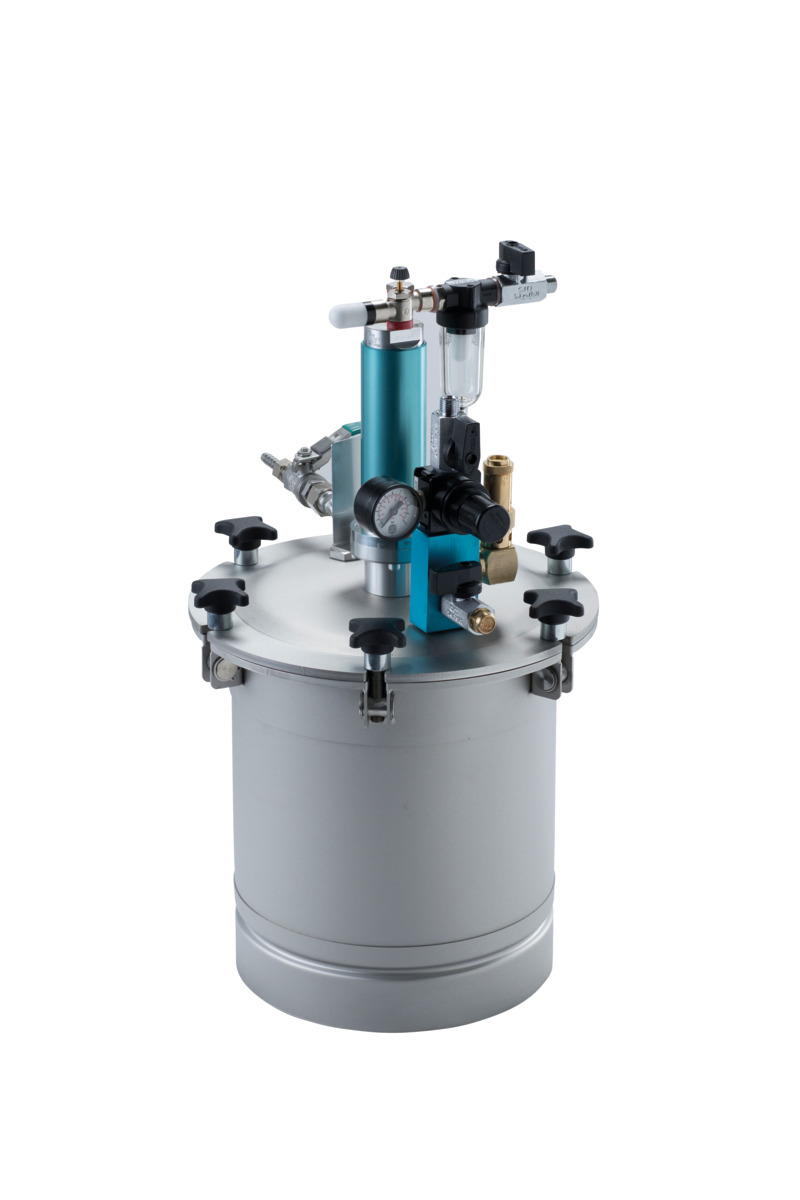

pneumatic agitator

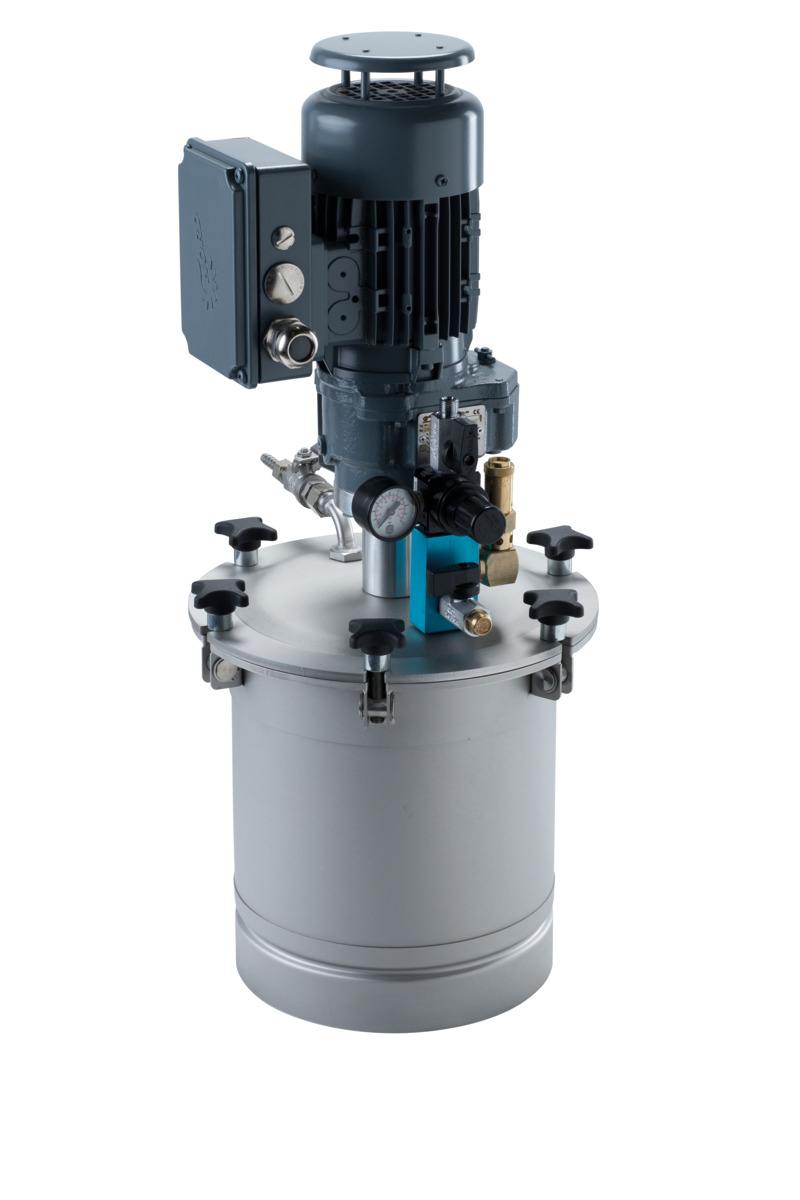

electric agitator
Outlet optional
1 upper outloet
2 upper outlets
1 lower outlet
Regulator optional
Single regulator
+2. regulator
+2. and 3. regulator
Material outlet (top/bottom)
1/4" / 1/2"
Capacity (filling quantity/usable capacity)
11.4 liters / 9.0 liters
Diameter (inside/outside)
232mm / 291mm
Total height without agitator (upper / lower outlet)
445mm / 481mm
Total height with manual agitator (upper / lower outlet)
592mm / 624mm
Total height with pneumatic agitator (upper / lower outlet)
515mm / 547mm
Total height with electric agitator (upper / lower outlet)
659mm / 591mm
