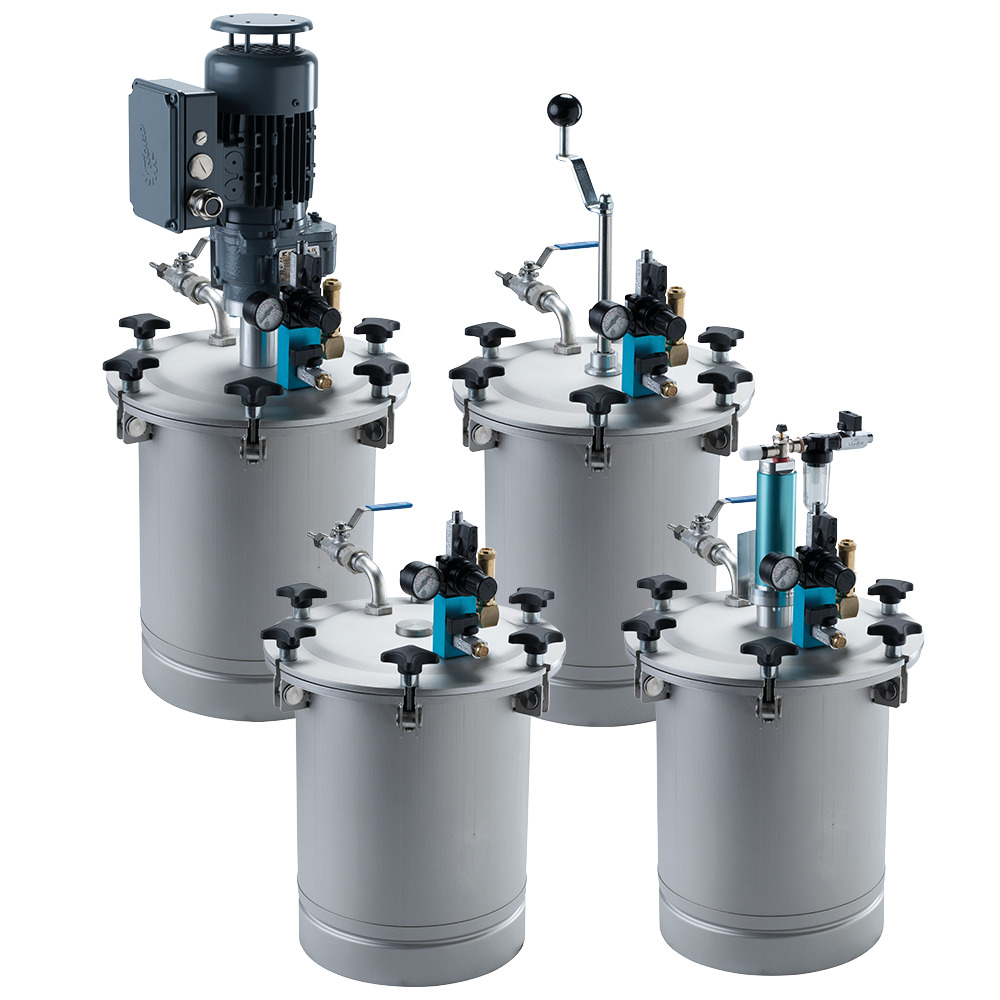

LDG 20

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

Technical data

Technical data
MaterialStainless steel
Pressure range6 bar

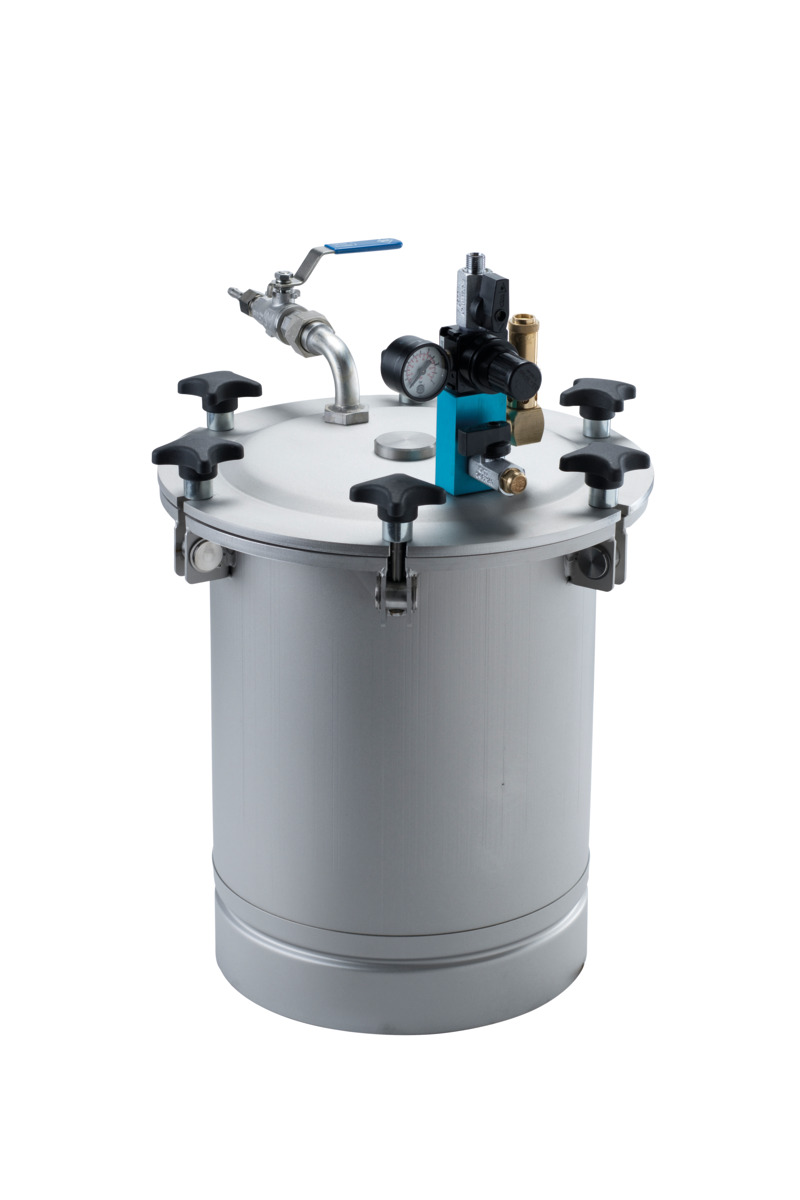

Agitator optionalwithout agitator

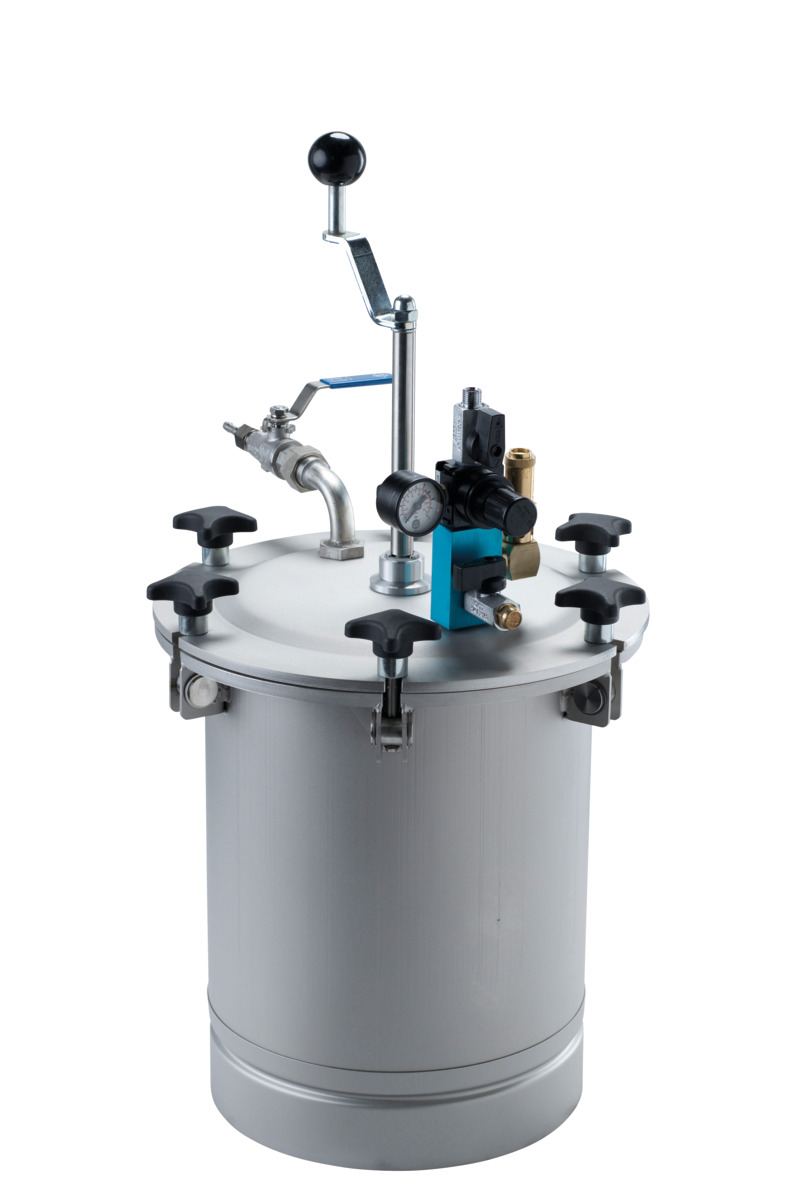

manual agitator

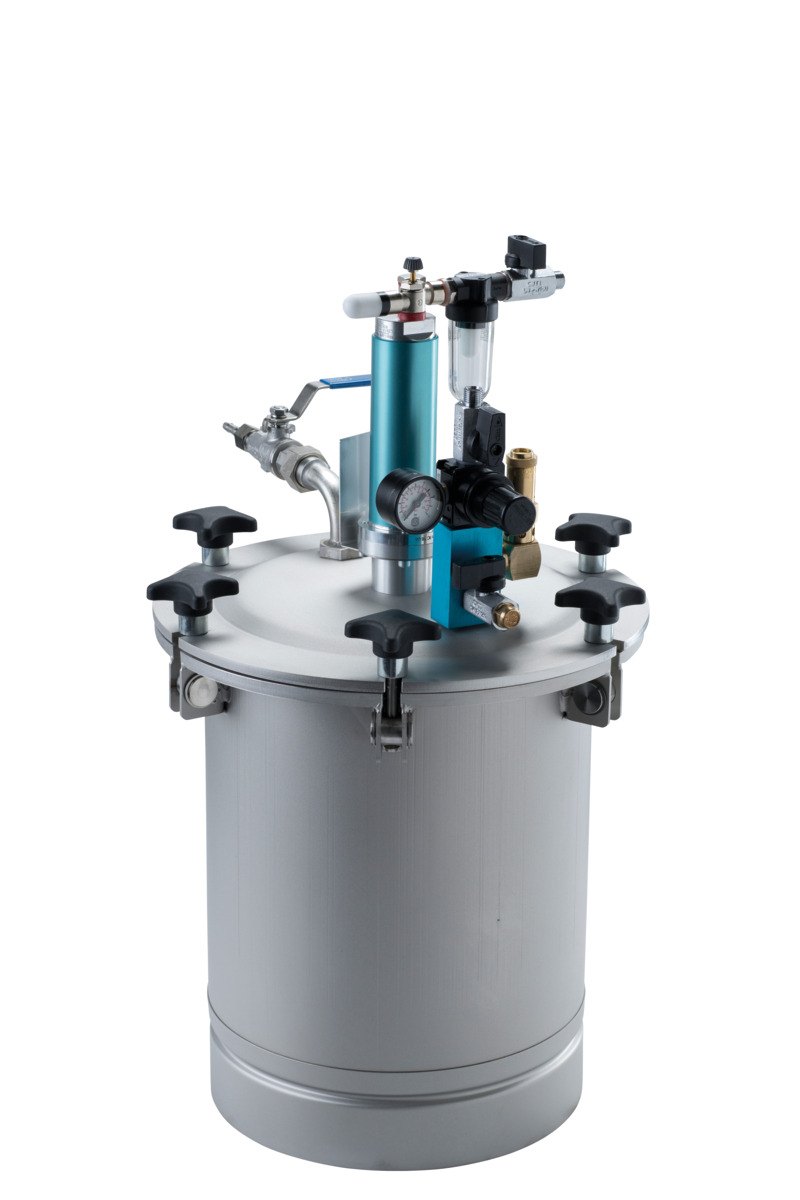

pneumatic agitator

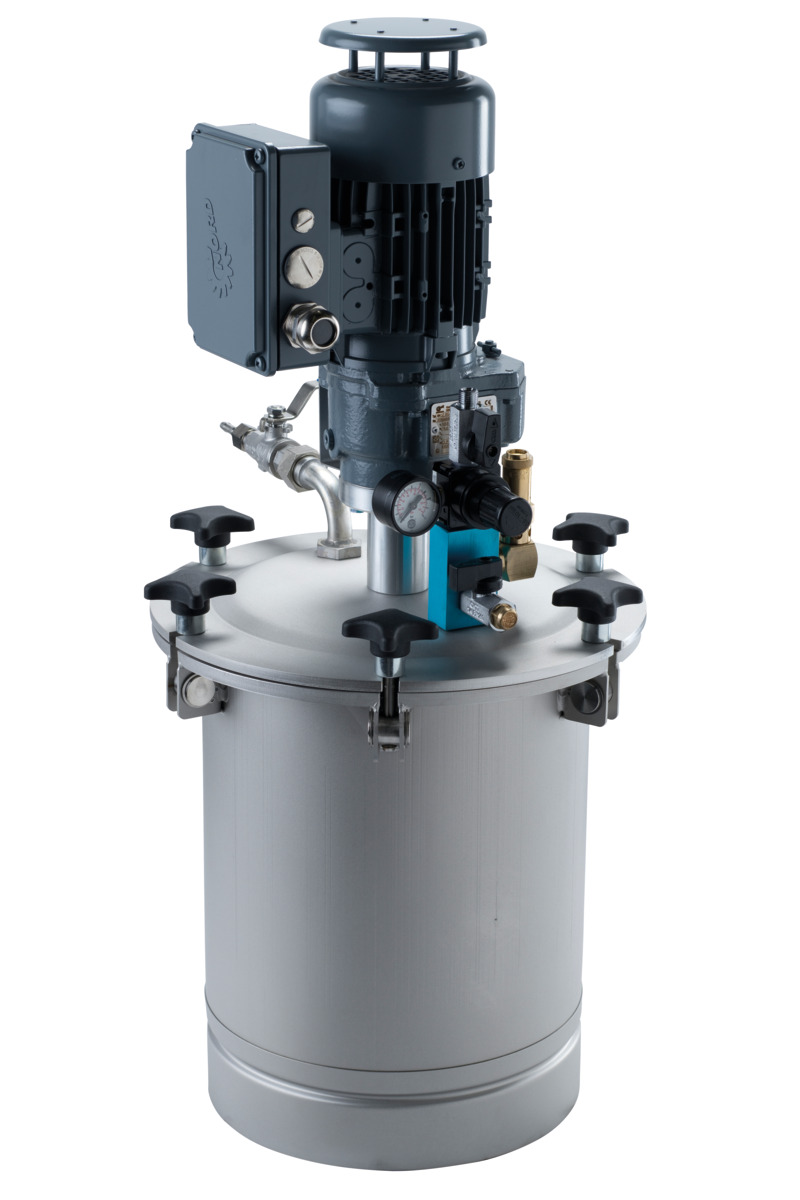

electric agitator
Outlet optional1 upper outloet
2 upper outlets
1 lower outlet
Regulator optionalSingle regulator
+2. regulator
+2. and 3. regulator
Material outlet (top/bottom)3/8" / 1"
Capacity (filling quantity/usable capacity)18.0 liters / 15.0 liters
Diameter (inside/outside)269mm / 344mm
Total height without agitator (upper / lower outlet)524mm / 604mm
Total height with manual agitator (upper / lower outlet)681mm / 757mm
Total height with pneumatic agitator (upper / lower outlet)604mm / 680mm
Total height with electric agitator (upper / lower outlet)748mm / 824mm
