LDG 5

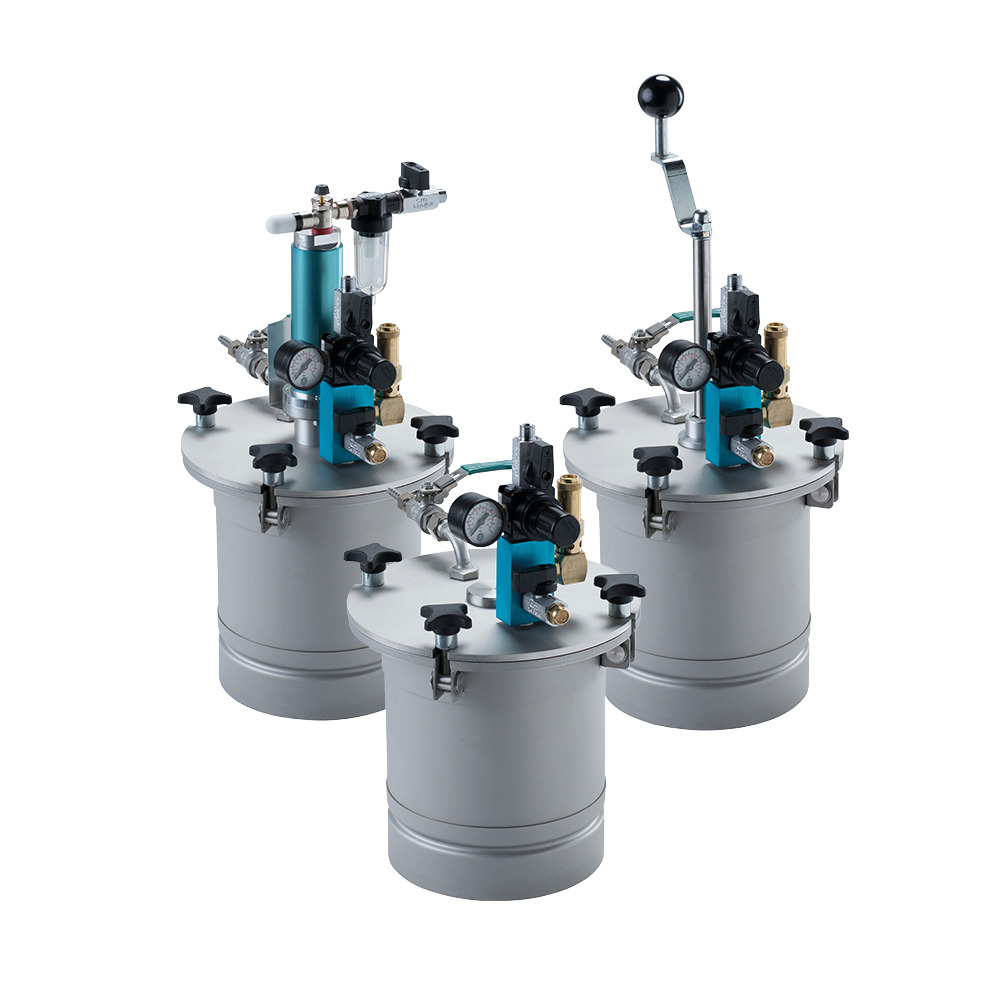

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

Technical data

Technical data
Material Stainless steel
Pressure range 6 bar

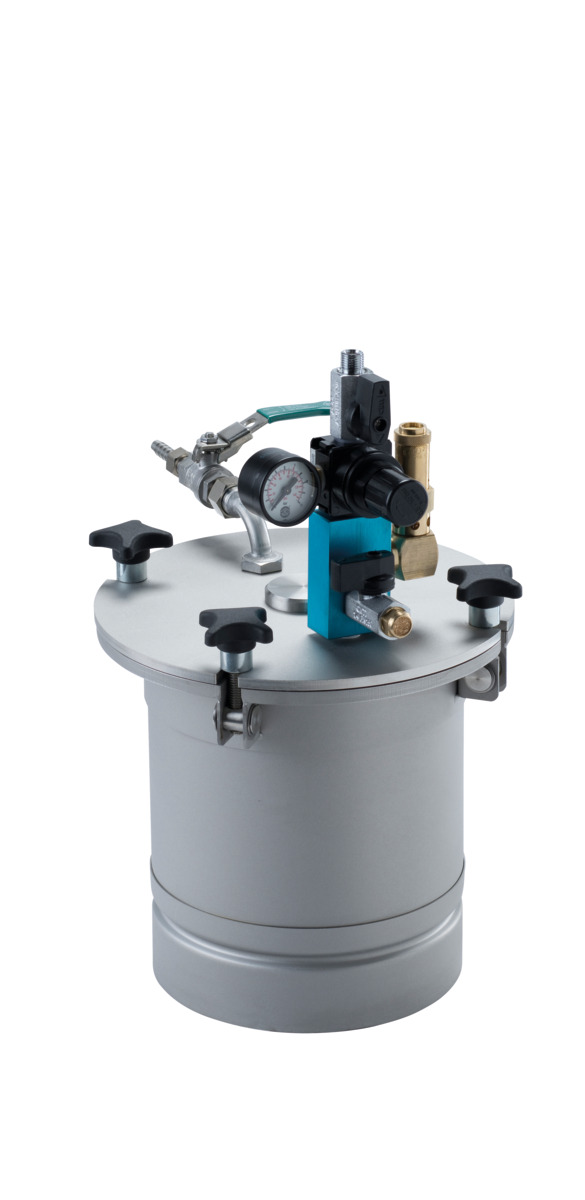

Agitator optional without agitator

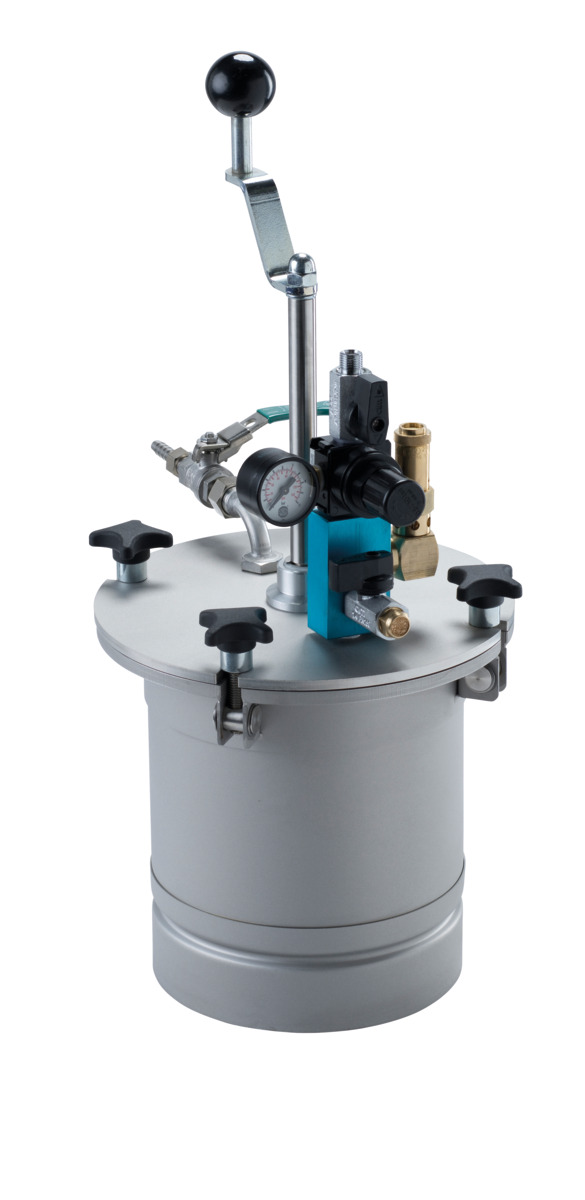

manual agitator

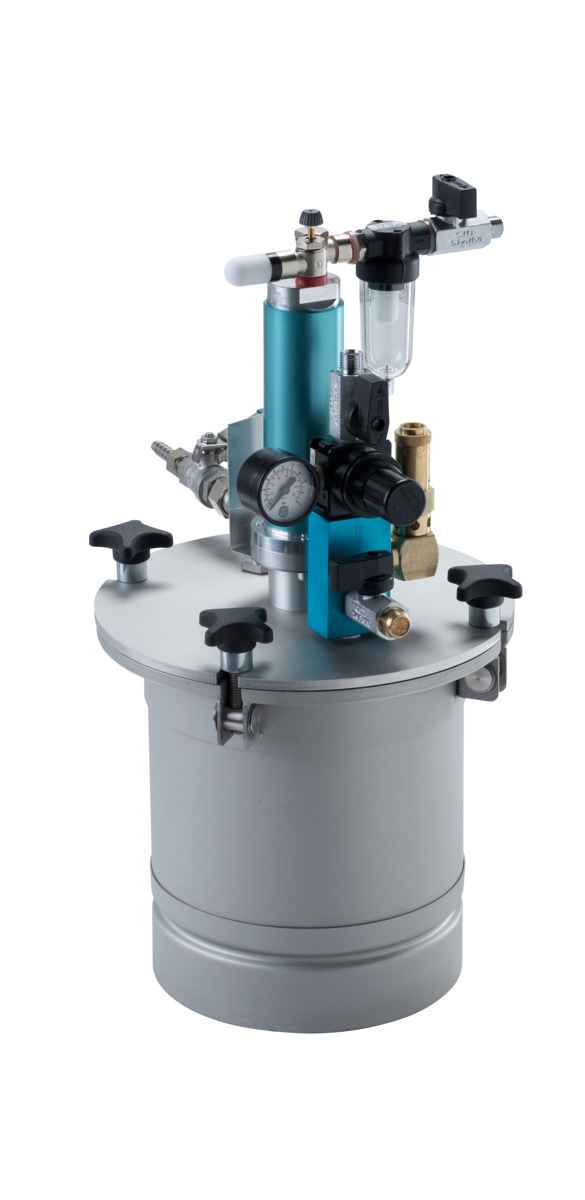

pneumatic agitator
Outlet optional 1 upper outloet
2 upper outlets
1 lower outlet
Regulator optional Single regulator
+2. regulator
+2. and 3. regulator
Material outlet (top/bottom) 1/4" / 1/2"
Capacity (filling quantity/usable capacity) 4.9 liters / 3.5 liters
Diameter (inside/outside) 183mm / 243mm
Total height without agitator (upper / lower outlet) 381mm / 414mm
Total height with manual agitator (upper / lower outlet) 538mm / 568mm
Total height with pneumatic agitator (upper / lower outlet) 388mm / 416mm
