MDG 22

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

Technical data

Technical data
MaterialStainless steel
Pressure range6 bar

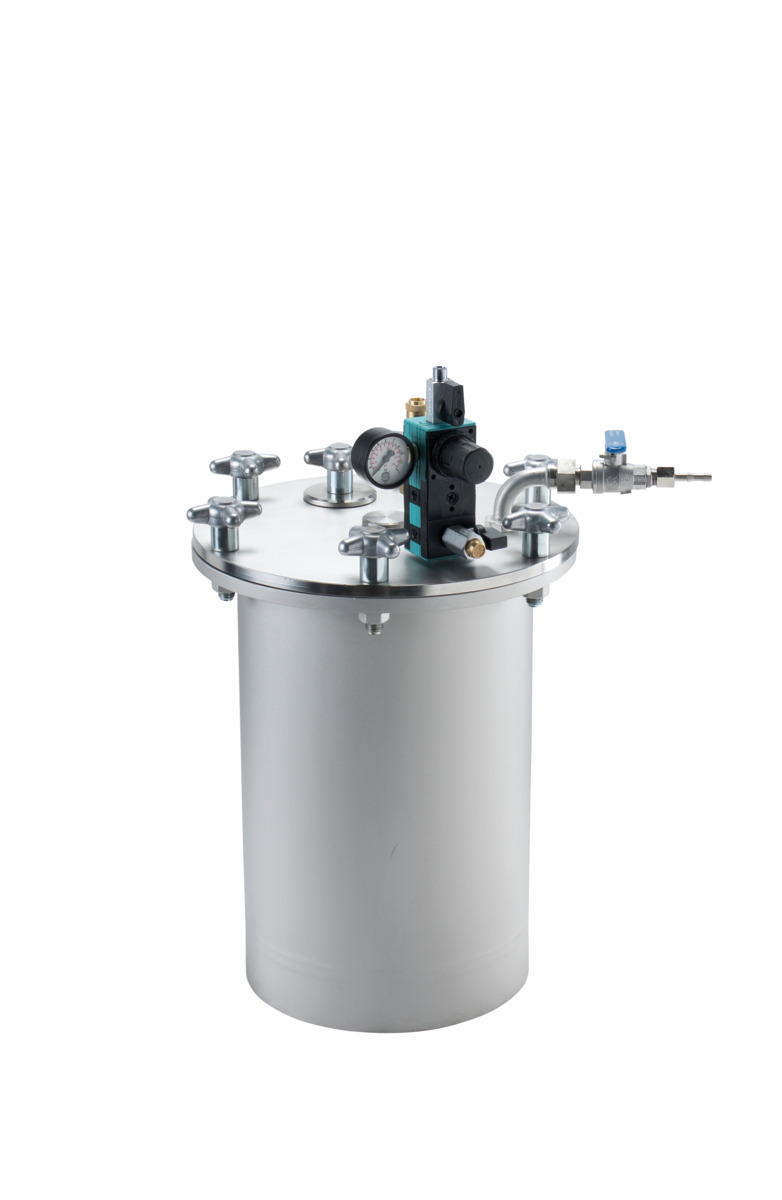

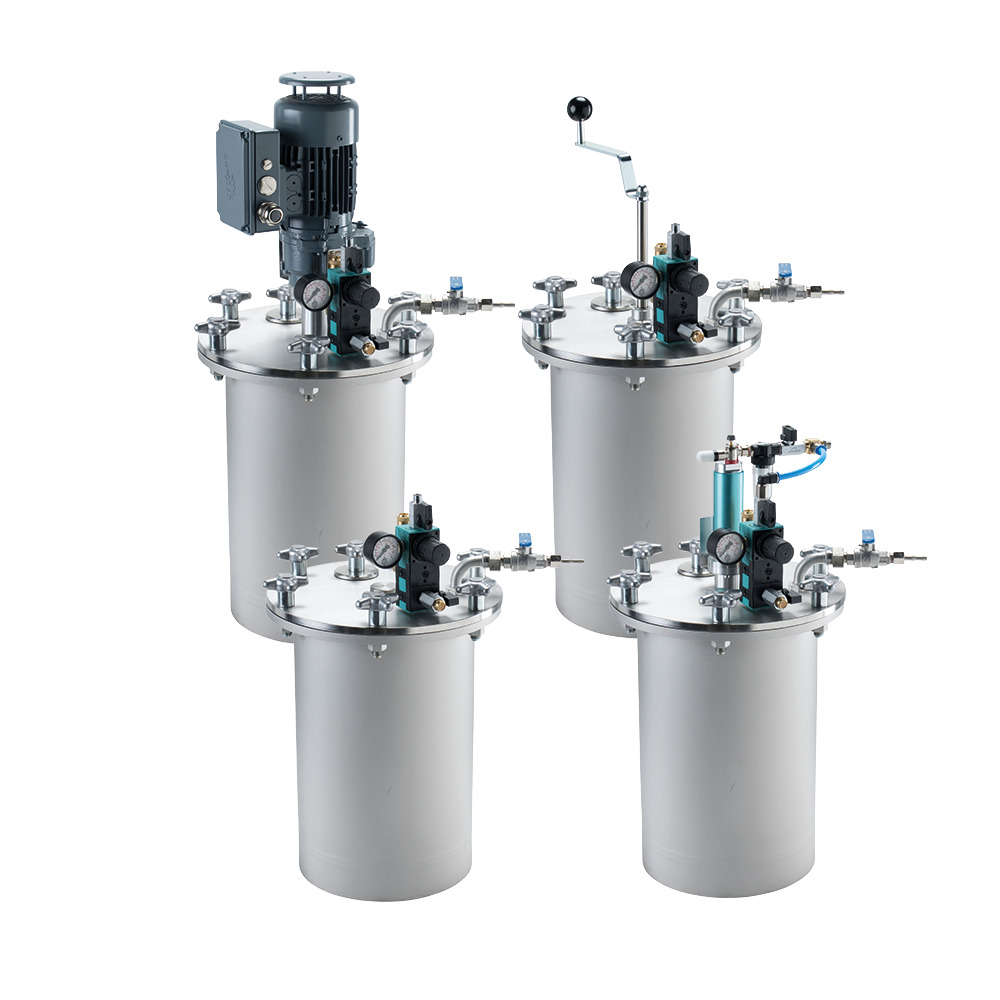

Agitator optionalwithout agitator

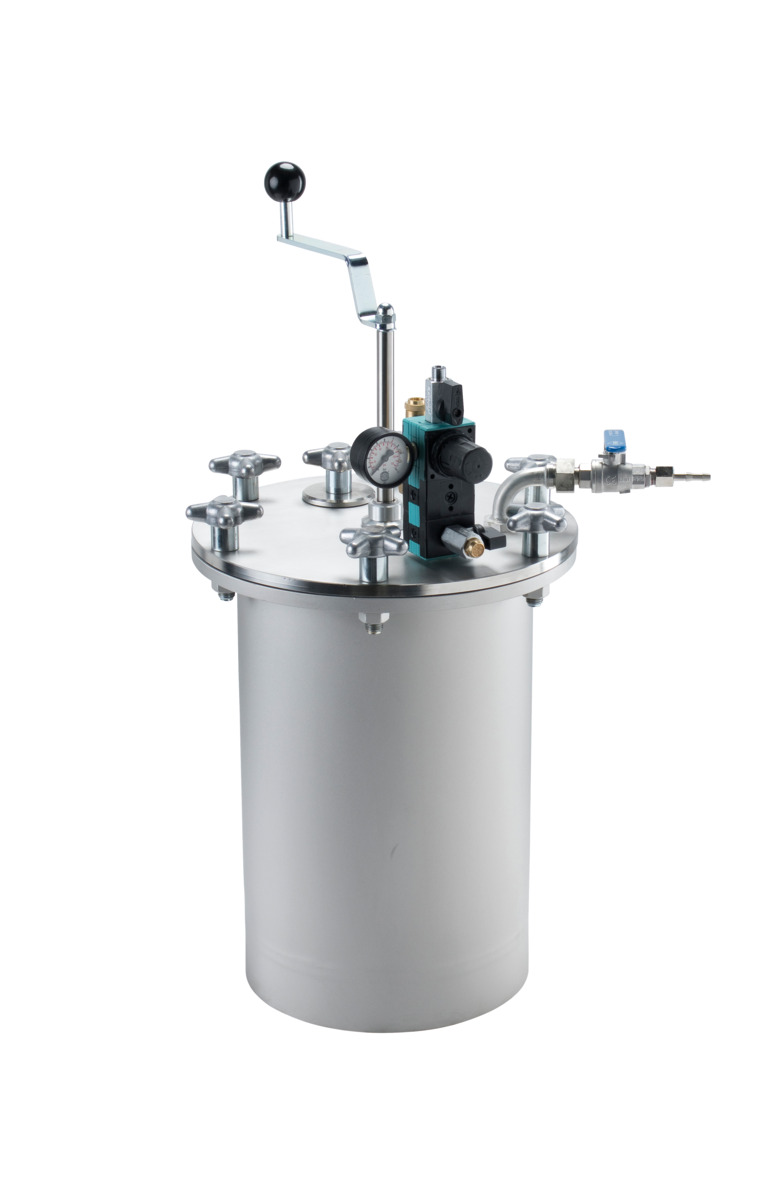

manual agitator

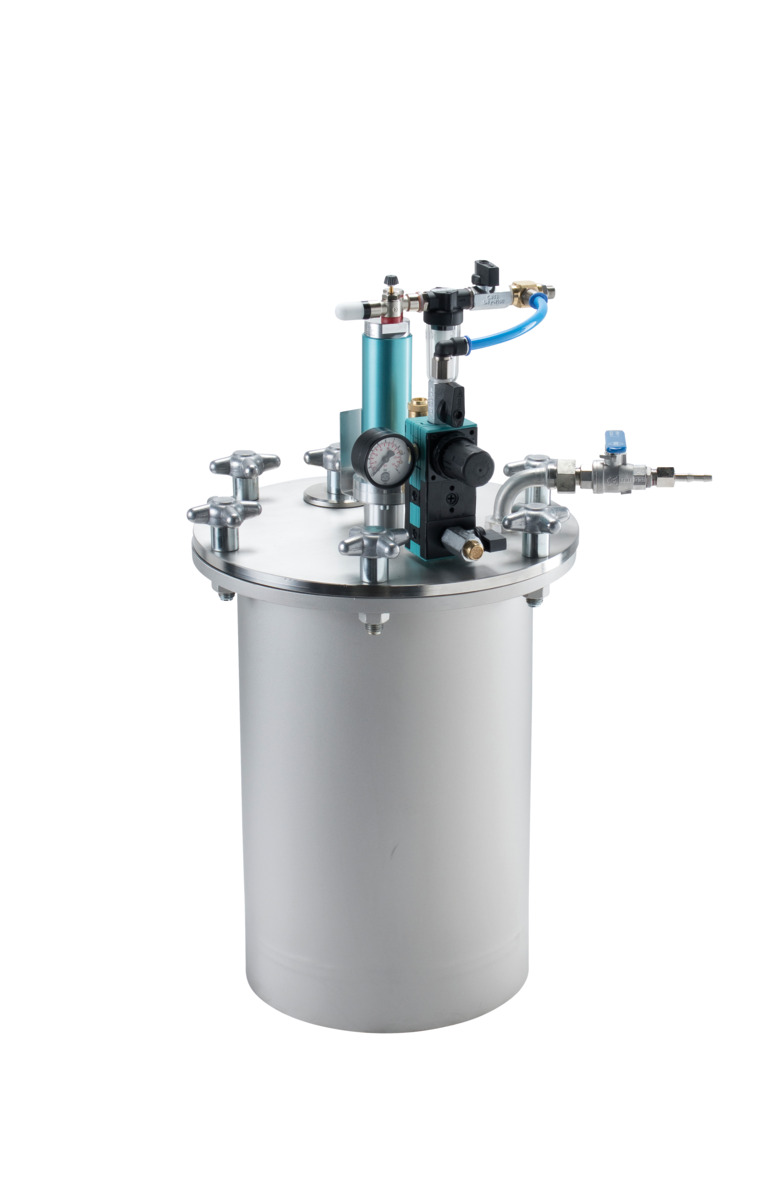

pneumatic agitator

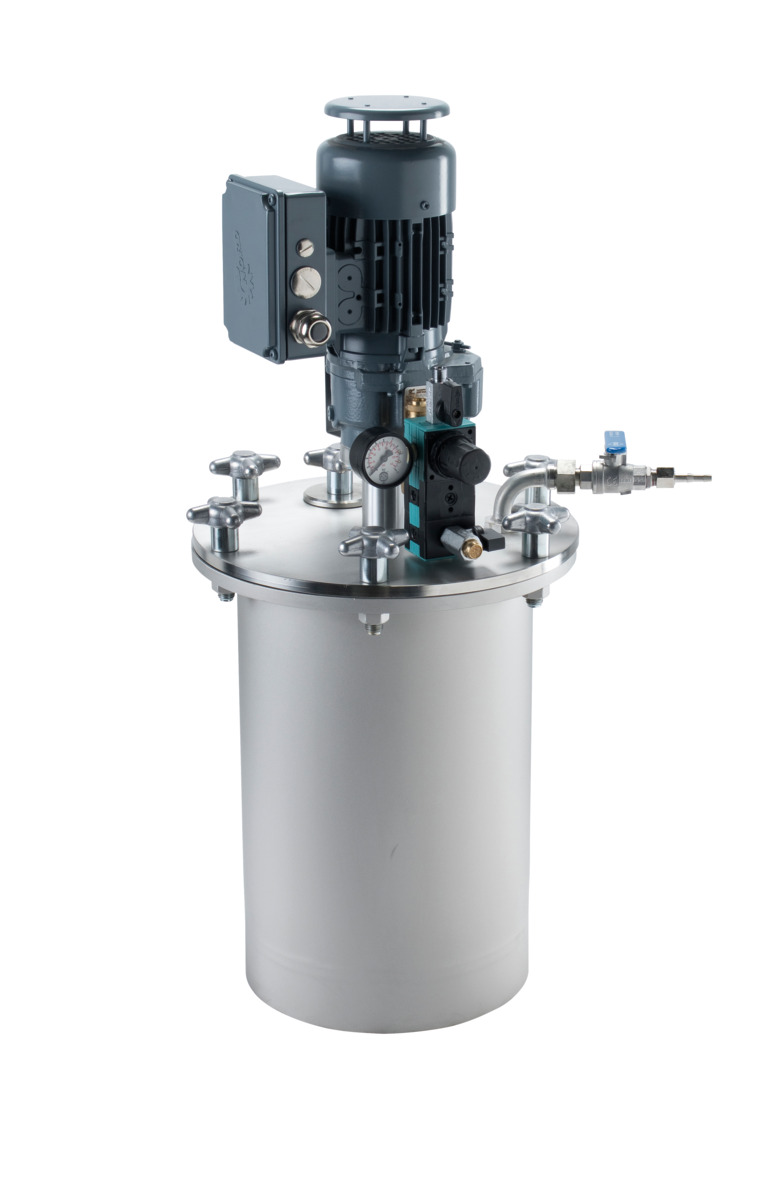

electric agitator
Outlet optional1 upper outlet
2 upper outlets
1 lower outlet
Regulator optionalsingle regulator
+2. regulator
+2. and 3. regulator
precision pressure regulator
Material outlet (top/bottom)3/8" / 1"
Capacity (filling quantity/usable capacity)22.3 liters / 19.5 liters
Diameter (inside/outside)270mm / 356mm
Total height without agitator (upper / lower outlet)620mm / 694mm
Total height with manual agitator (upper / lower outlet) Gesamthöhe mit Handrührwerk (oberer / unterer Abgang)
Total height with pneumatic agitator (upper / lower outlet)692mm / 766mm
Total height with electric agitator (upper / lower outlet)835mm / 910mm
