MDG 24

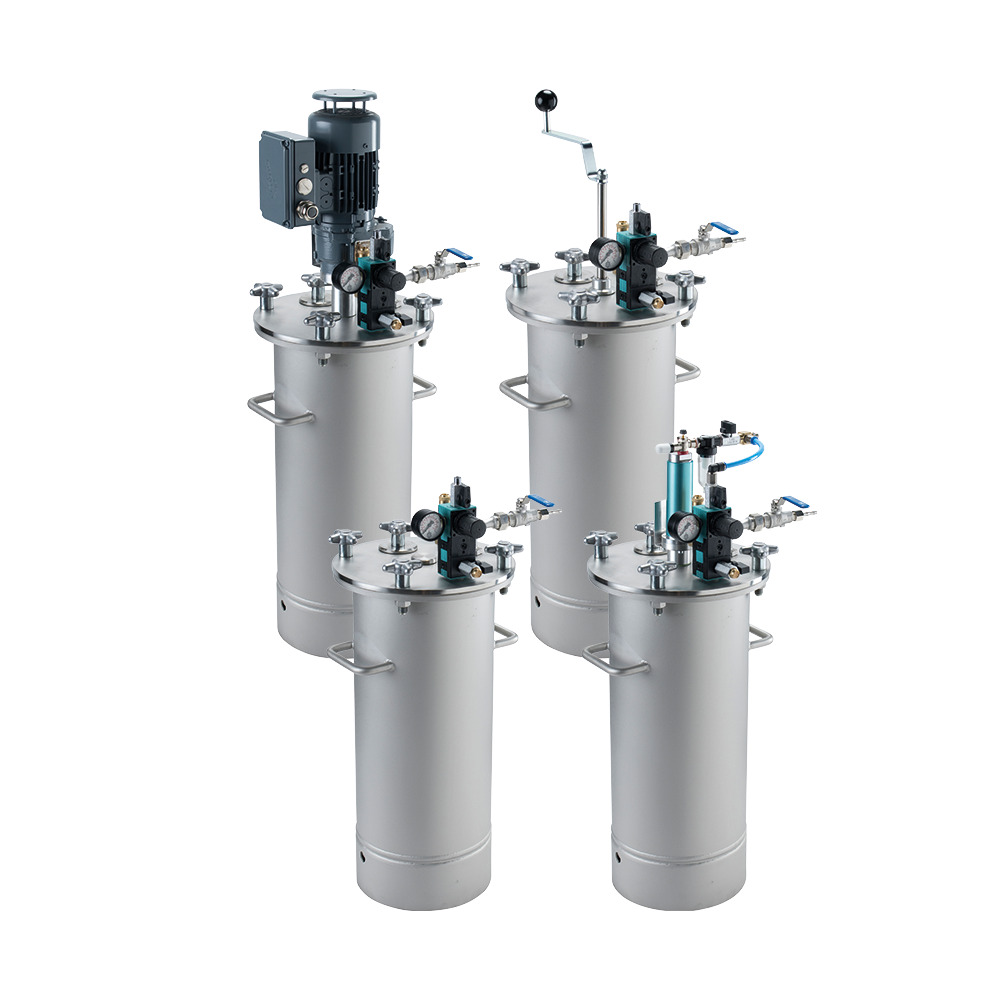

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

Technical data

Technical data
Material Stainless steel
Pressure range 6 bar

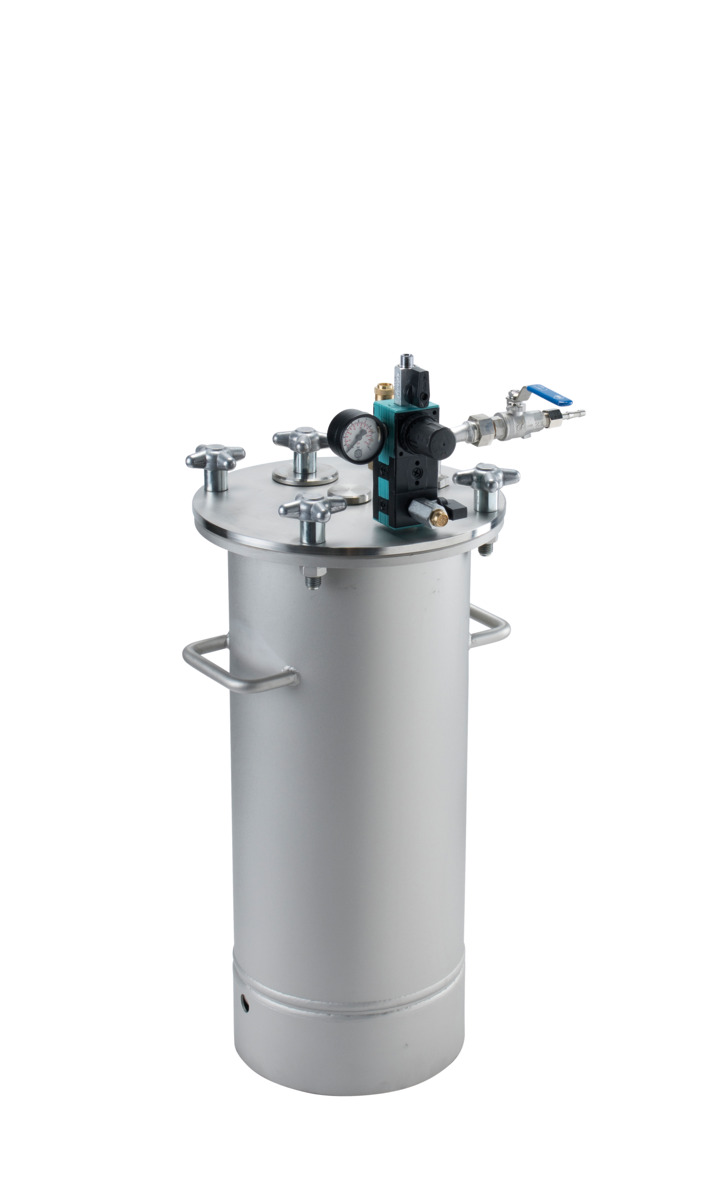

Agitator optional without agitator

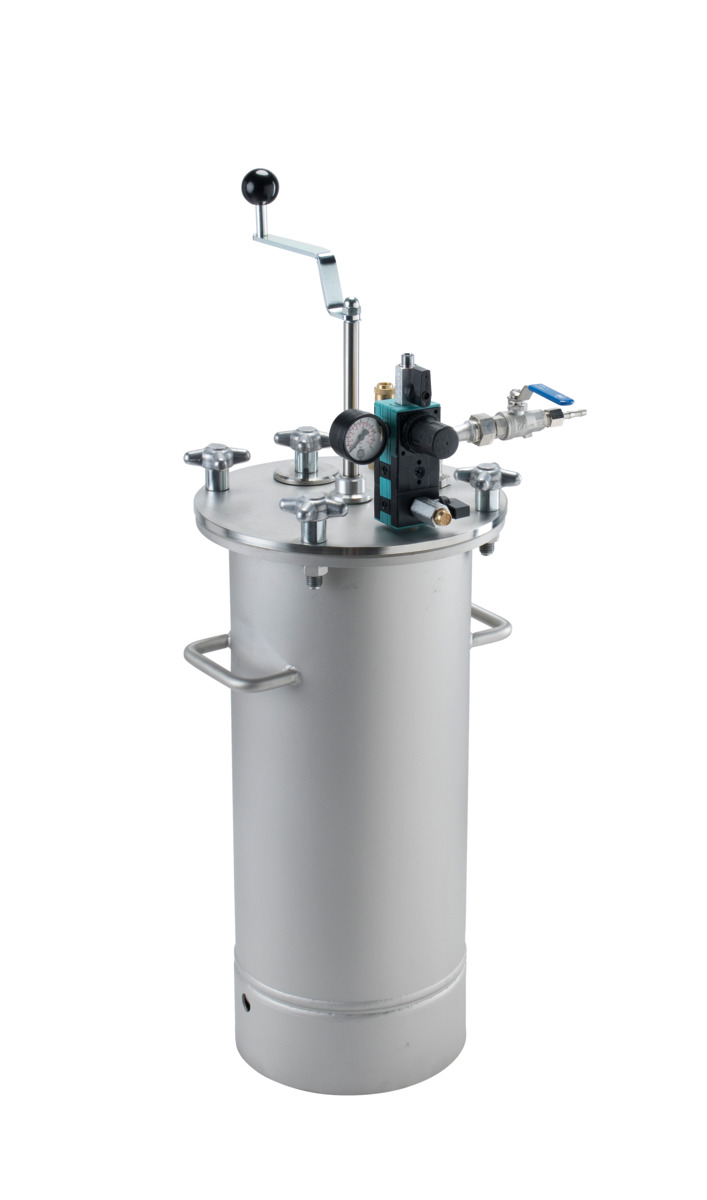

manual agitator

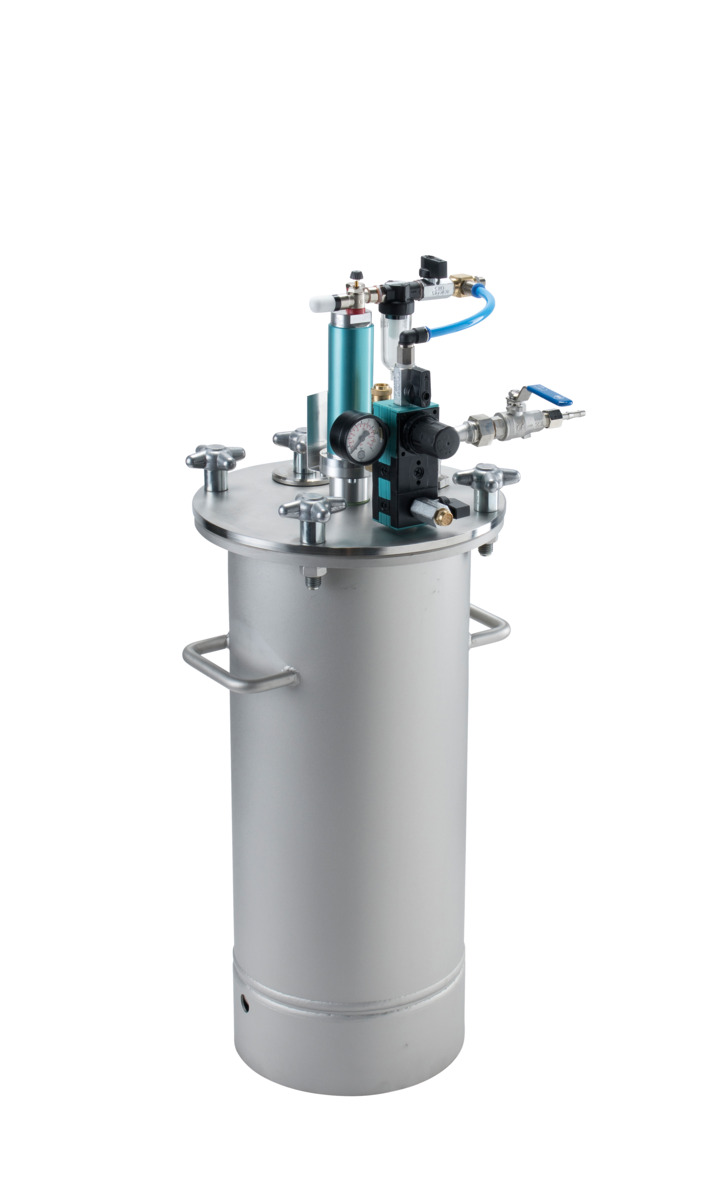

pneumatic agitator

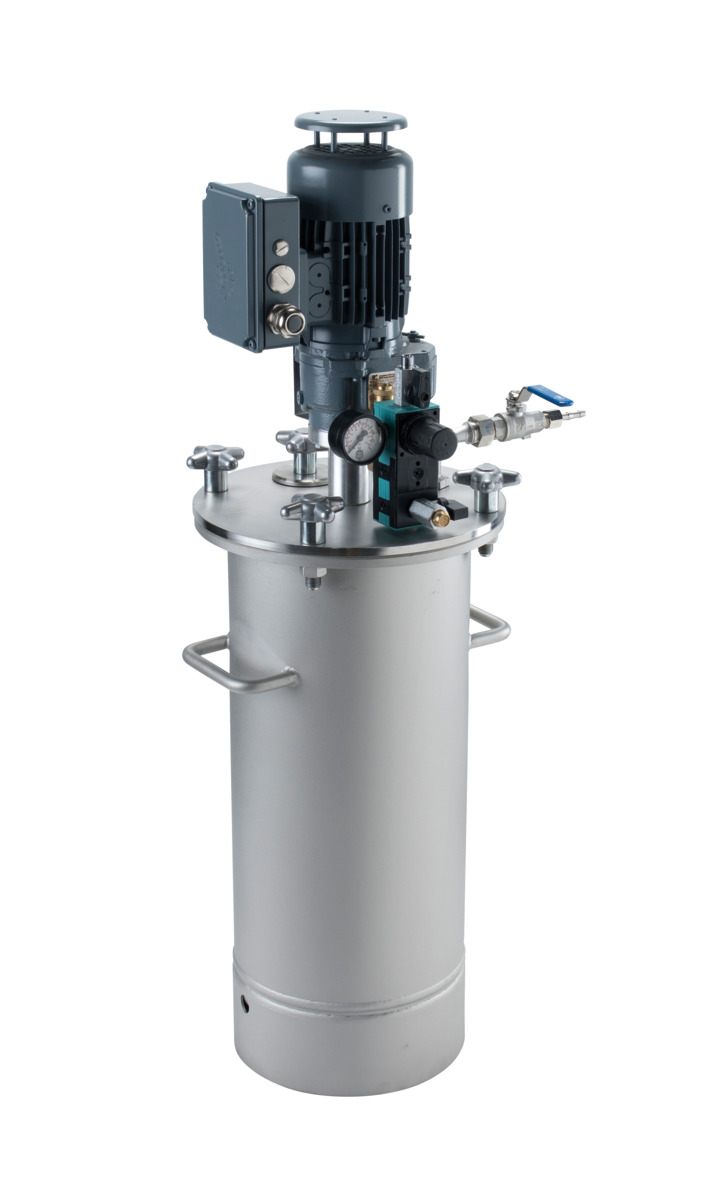

electric agitator
Outlet optional 1 upper outlet
2 upper outlets
1 lower outlet
Regulator optional single regulator
+2. regulator
+2. and 3. regulator
precision pressure regulator
Material outlet (top/bottom) 3/8" / 1"
Capacity (filling quantity/usable capacity) 25.8 liters / 23.5 liters
Diameter (inside/outside) 244mm / 320mm
Total height without agitator (upper / lower outlet) 787mm / 837mm
Total height with manual agitator (upper / lower outlet) 936mm / 986mm
Total height with pneumatic agitator (upper / lower outlet) 858mm / 908mm
Total height with electric agitator (upper / lower outlet) 1004mm / 1054mm
