MDG 3

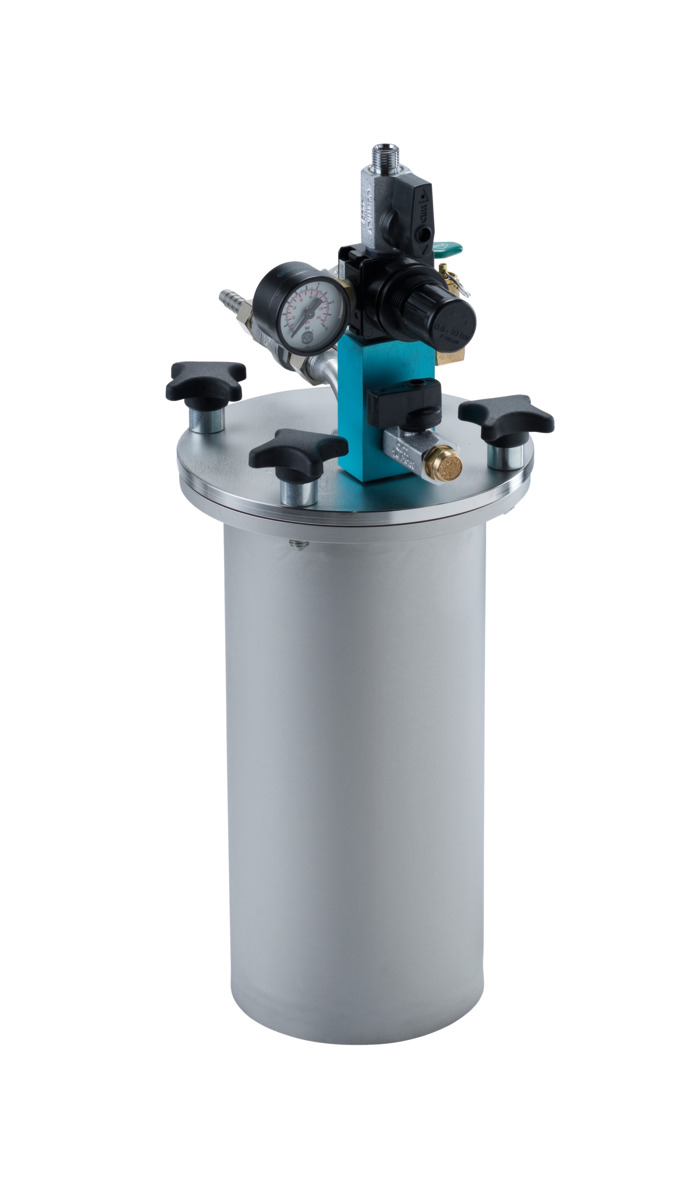

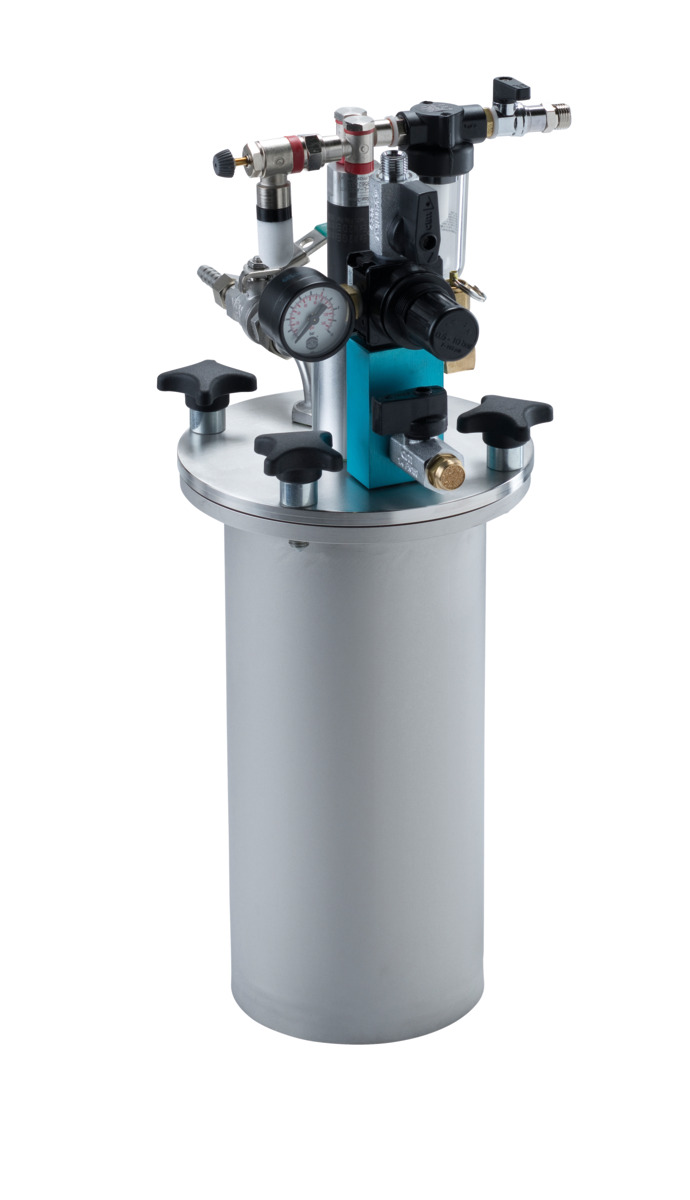

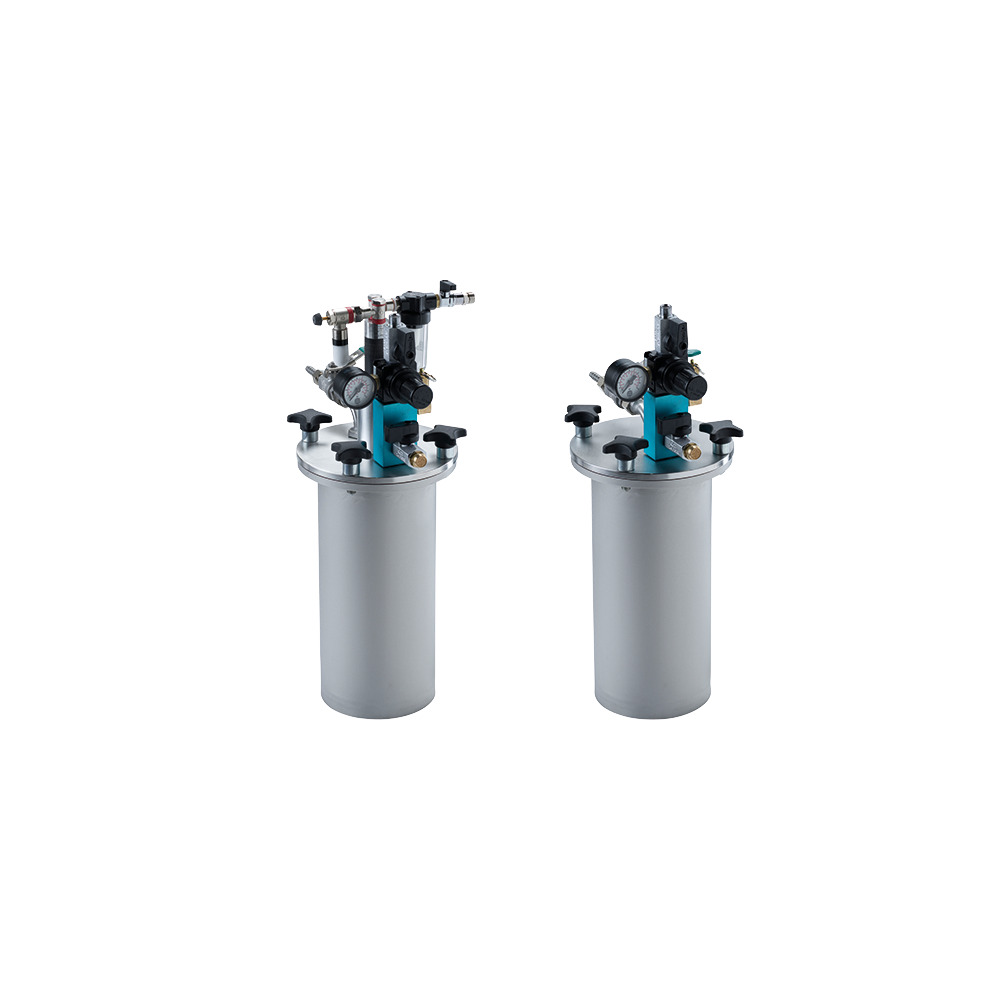

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

Technical data

Material
Stainless steel
Pressure range
vacuum / 3 bar / 6 bar
Agitator optional
without agitator
pneumatic agitator
Outlet optional
1 upper outlet
1 lower outlet
Regulator optional
single regulator
+2. regulator
Material outlet (top/bottom)
1/4" / 1/4"
Capacity (filling quantity/usable capacity)
3.2 liters / 2.5 liters
Diameter (inside/outside)
125mm / 173mm
Total height without agitator (upper / lower outlet)
454mm
Total height with pneumatic agitator (upper / lower outlet)
458mm
