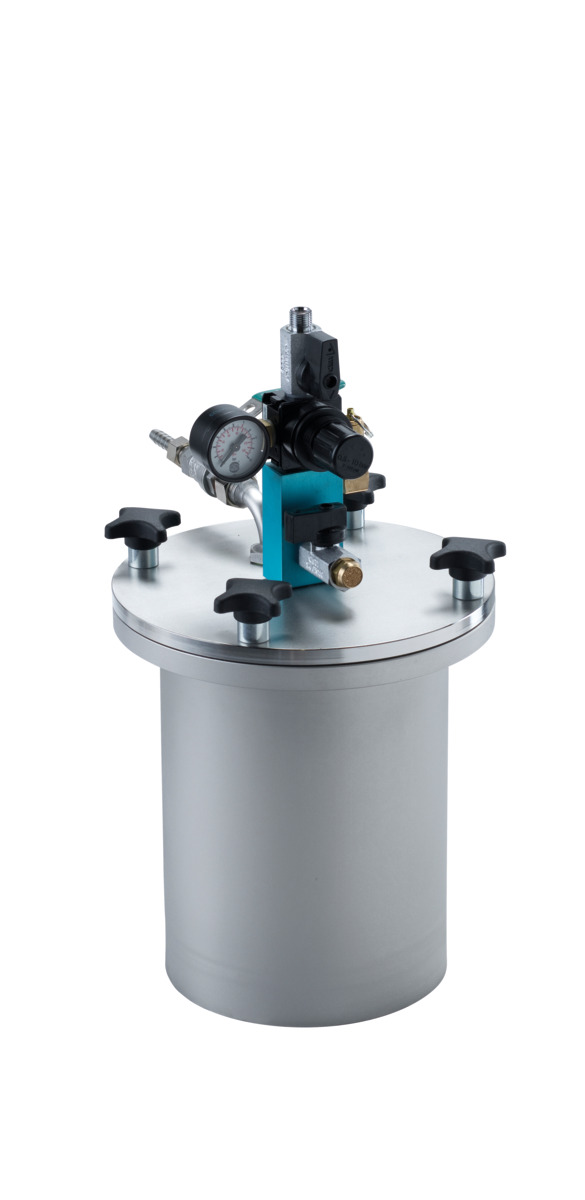

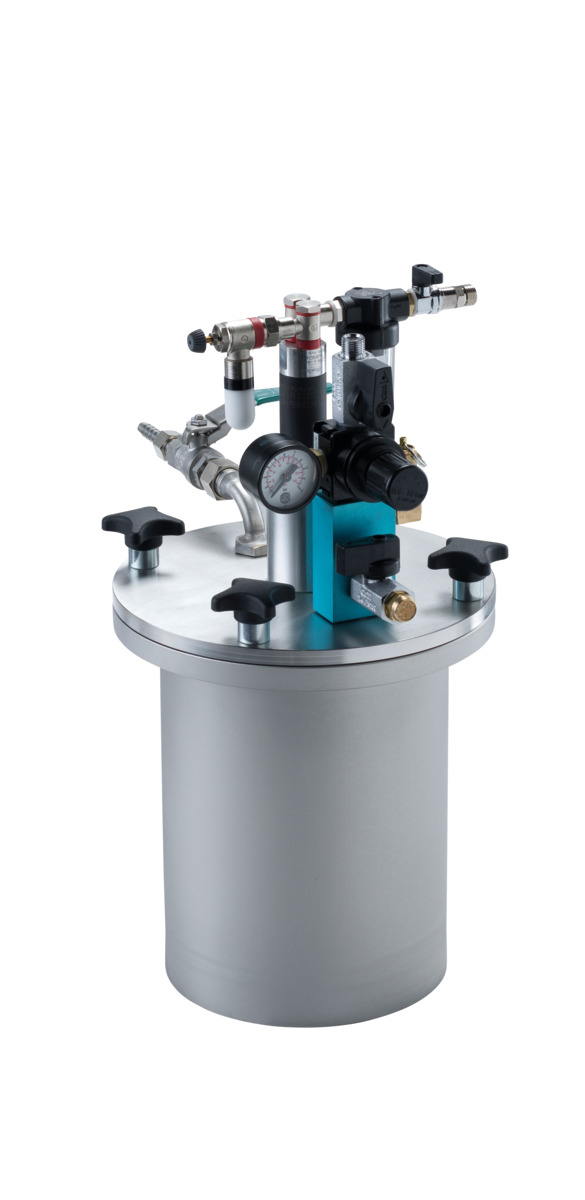

MDG 4

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

Technical data

Material
Stainless steel
Pressure range
vacuum / 4 bar / 6 bar

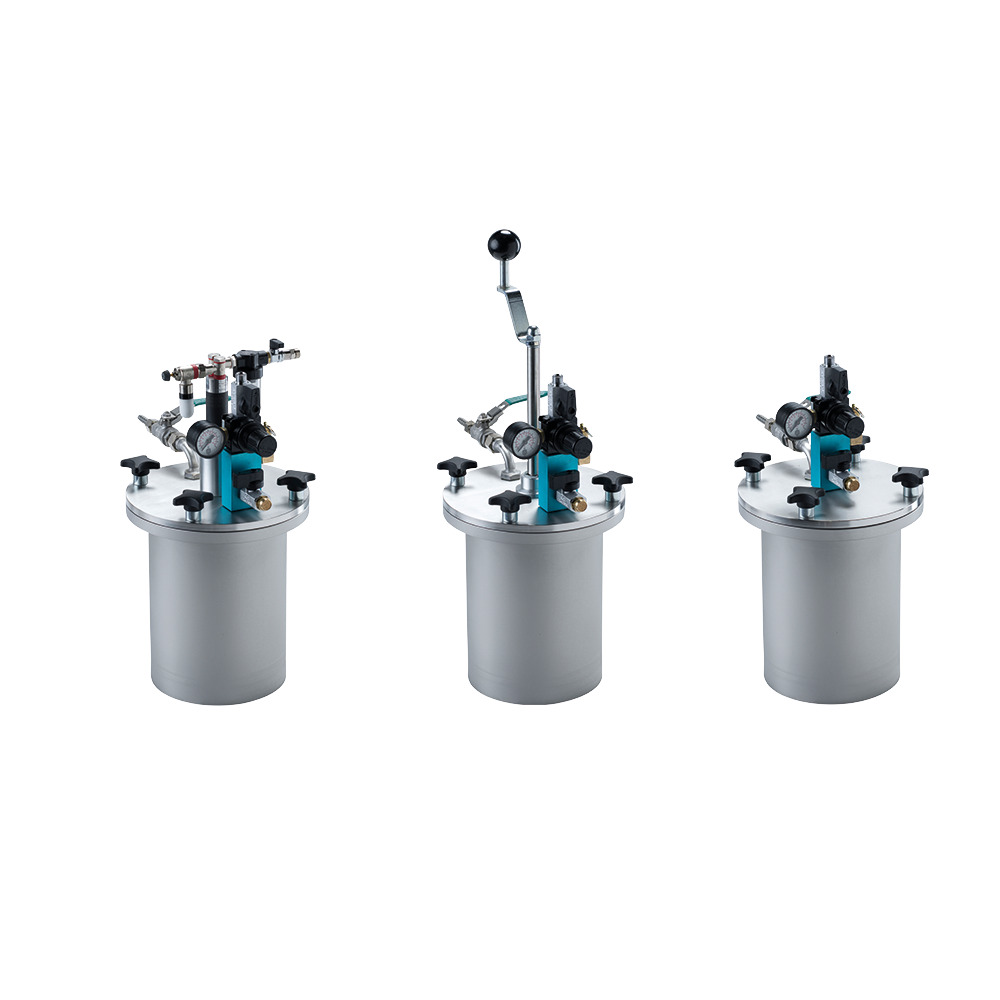

Agitator optional
without agitator

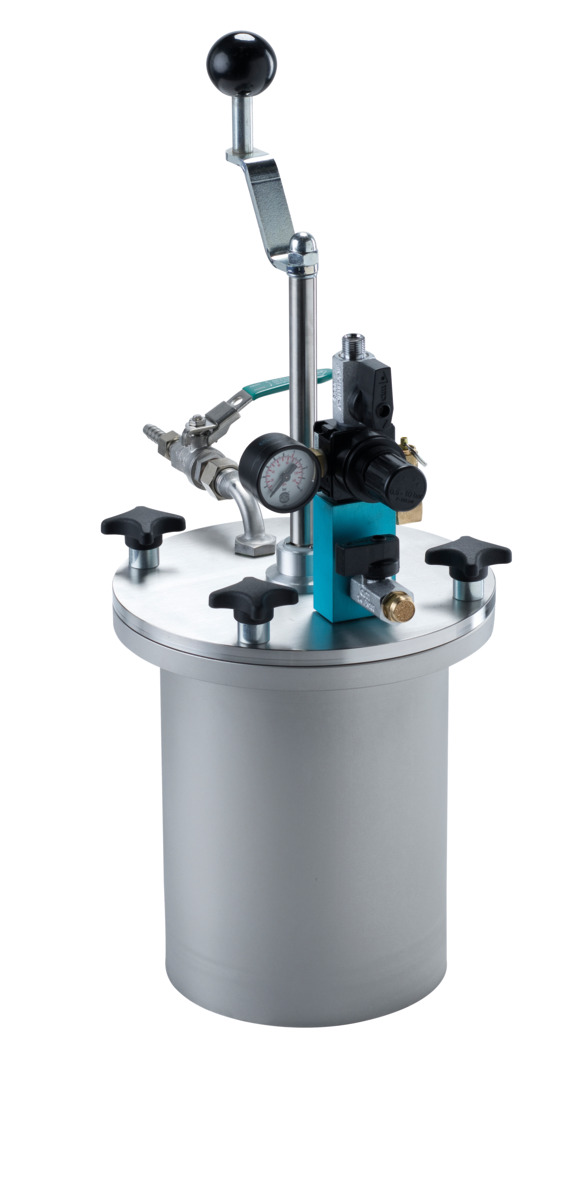

manual agitator
pneumatic agitator
Outlet optional
1 upper outlet
1 lower outlet
Regulator optional
Single regulator
+2. regulator
Material outlet (top/bottom)
1/4" / 3/8"
Capacity (filling quantity/usable capacity)
4.1 liters / 3.1 liters
Diameter (inside/outside)
162.5mm / 222mm
Total height without agitator (upper / lower outlet)
410mm / 430mm
Total height with manual agitator (upper / lower outlet)
562mm / 582mm
Total height with pneumatic agitator (upper / lower outlet)
413mm / 433mm
