    Overview

    For pulsation-free and continuous conveying of liquid materials such as paints, oils, release agents and resins. No escape of vapors or gases to the environment.

    Benefits

    Benefit Checkmark

    Riser pipe

    Benefit Checkmark

    Material withdrawal ball valve

    Benefit Checkmark

    Material filling cap

    Benefit Checkmark

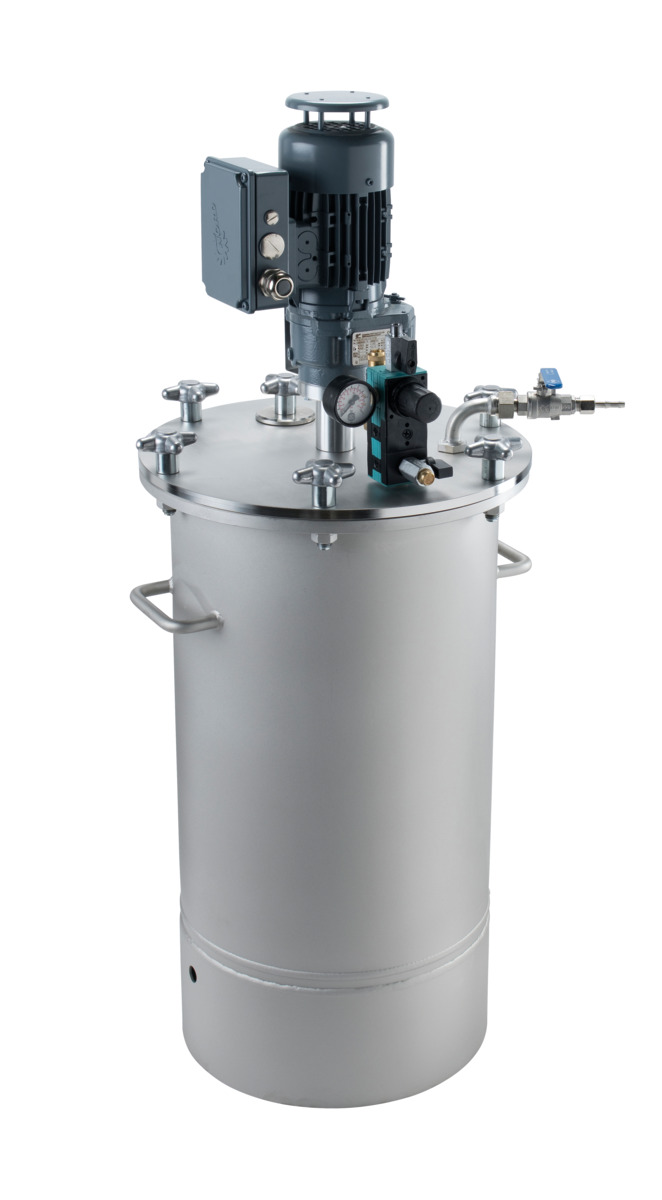

    Agitator optional

    Benefit Checkmark

    Compressed air inlet fitting with pressure regulator, pressure gauge, safety valve and air vent

    Benefit Checkmark

    Star handles

    Technical data

    Capacity
    ca. 58.5 Liter
    Tank made of
    Stainless steel / galvanized steel
    Operating pressure
    max. 6bar
    Air connection
    R 1/4"-AG
    Upper material outlet
    R 3/8"-AG
    Inner diameter
    362mm
    Total height without agitator
    903mm
    Weight without agitator
    48kg
