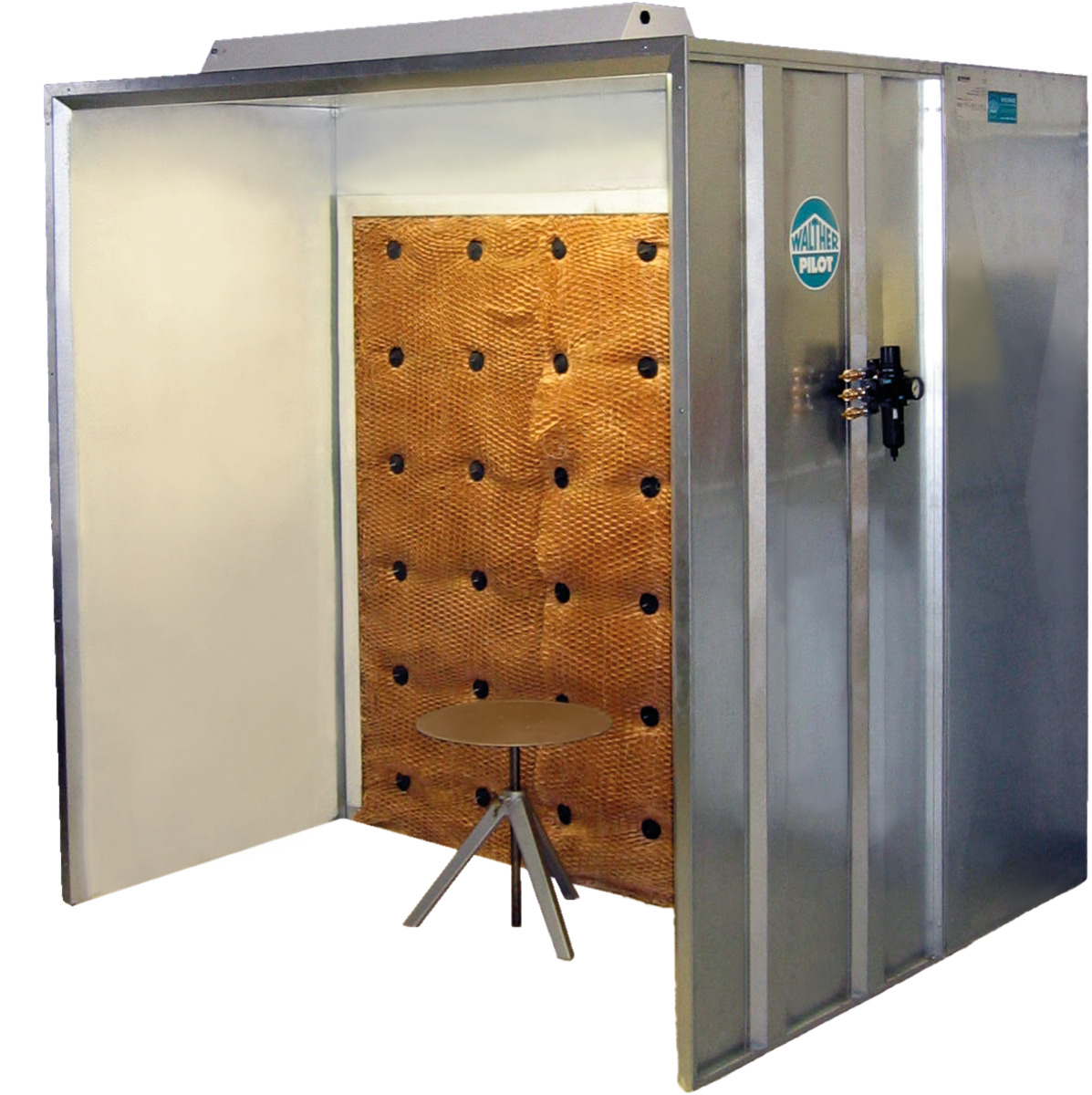

    • Extraction wall type 90 K

    Extraction wall with fixed front section 1000 or 2000 mm deep, depending on size, to separate the painting workstation from other production areas (front section optionally with entry slot for crane loading).

    Request quote now
    Overview
    Technical data
    Customer references

    Technical data

    Type
    10 / 20 / 30 / 40 / 50 / 60 / 70
    Exhaust air [m³/h]
    3600 / 6500 / 8600 / 10000 / 12800 / 15000 / 17000
    Fan type
    NZ350 / NZ400 / NZ450 / NZ450 / 2x NZ400 / 2x NZ450 / 2x NZ450
    Motor [kW]
    0.75 / 1.35 / 2.0 / 2.0 / 2x 1.35 / 2x 2.0 / 2x 2.0
    Working width [mm]
    1000 / 1500 / 2000 / 2500 / 3000 / 3500 / 4000
    Total height [mm]
    2710 / 2780 / 2850 / 2850 / 2780 / 2850 / 2850
    Front depth [mm]
    1000 / 1000 / 2000 / 2000 / 2000 / 2000 / 2000
    Working depth [mm]
    750
    Working height [mm]
    2100
