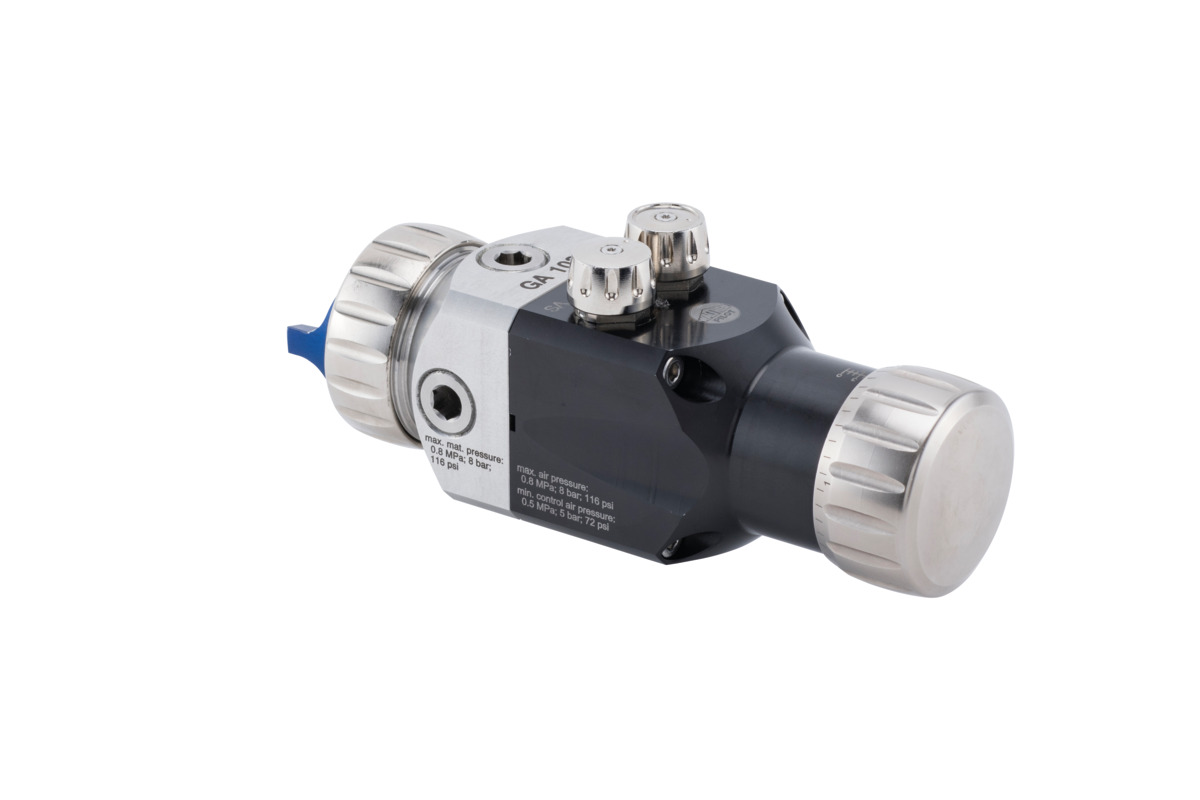

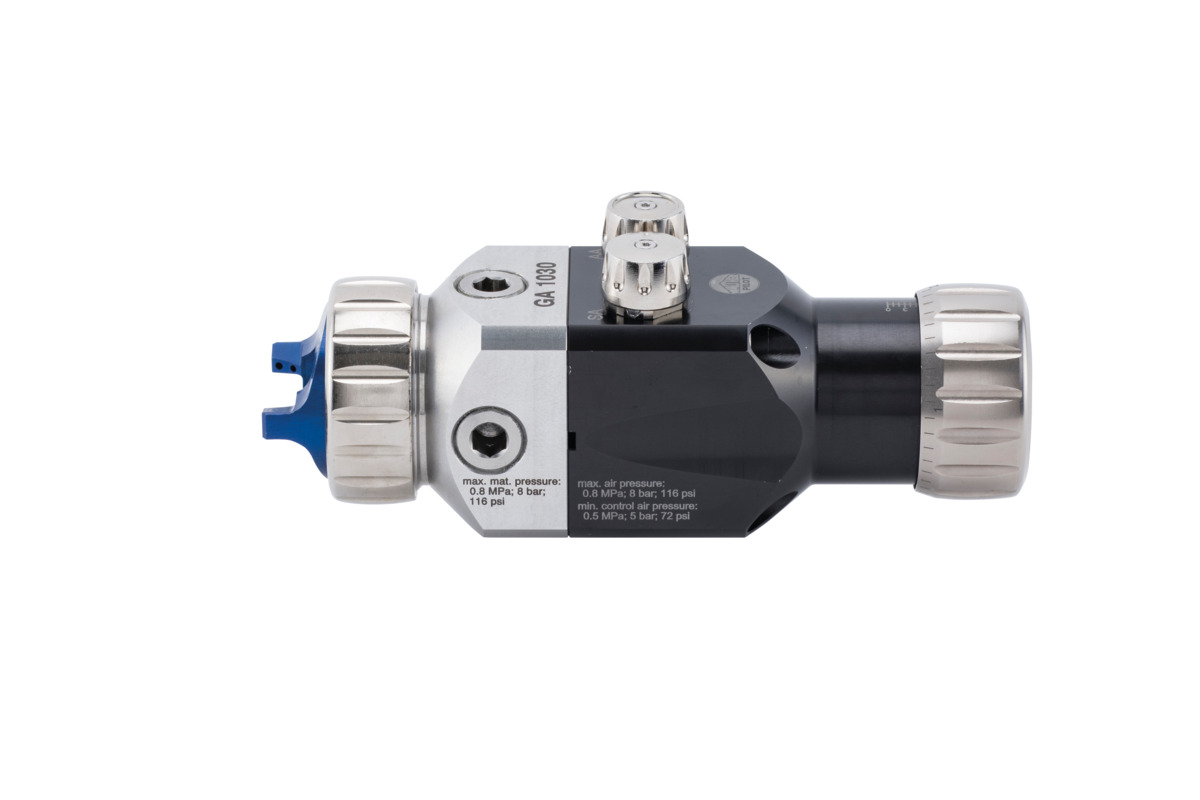

Name: GA 1020/1030
Brand: WAGNER

The GA 1030 automatic airspray gun impresses with excellent atomization properties and a high-quality spray pattern. The universal unit is particularly low-wear and enables process-reliable coating in continuous operation. For use with UV and highly abrasive materials, the gun is available as GA 1020 with diaphragm seal.

Show more Show less

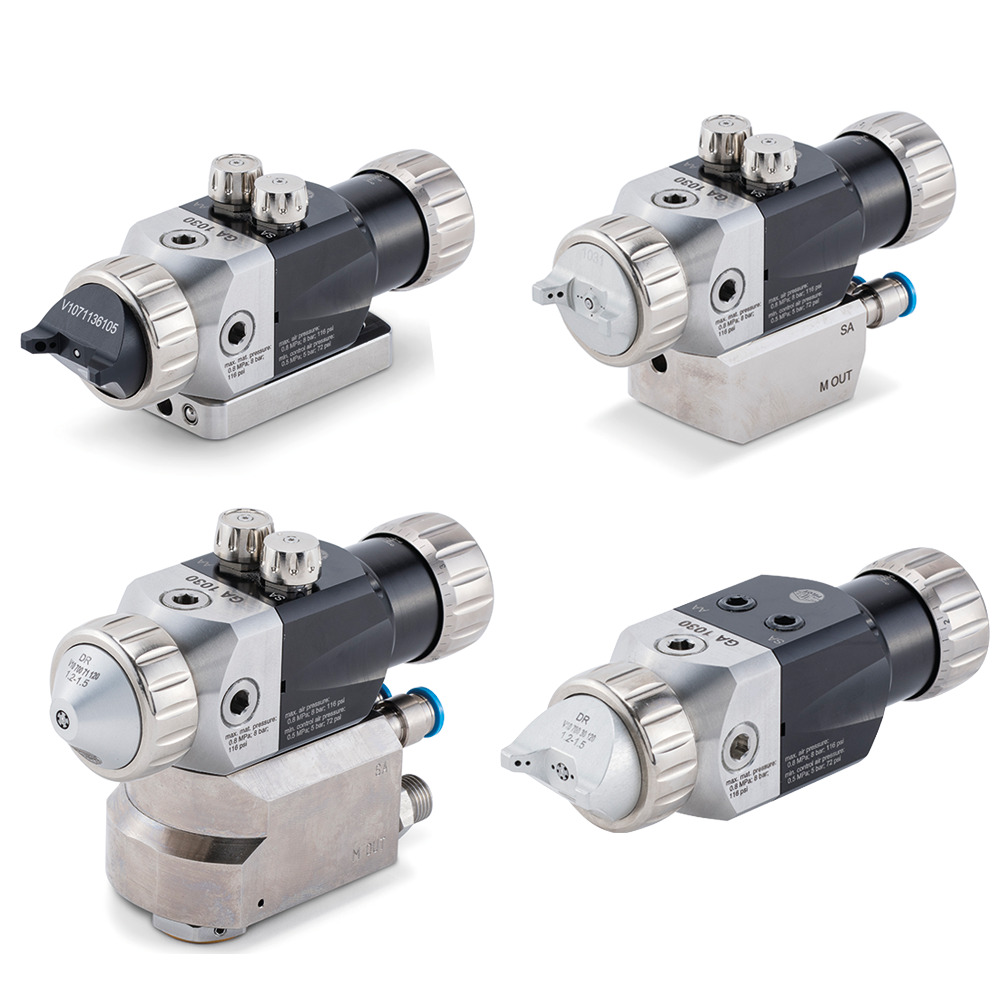

Modular design for all coating requirements

convinces with excellent atomization properties and high-quality spray pattern. The universal unit is particularly low-wear and enables process-reliable coating in continuous operation. Due to its modular design, the automatic spray gun can be used for a wide range of applications in numerous industries.

Efficient use of material

Overspray and thus material consumption are minimized by the optimized design of the air channel. As a result, an application efficiency of up to 85% can be achieved.

Long maintenance intervals and low spare parts costs.

Two-part nozzle system consisting of nozzle head and nozzle nut. When worn, only the nozzle head needs to be replaced. All parts in contact with the material are made of durable stainless steel and the needle is additionally coated for wear resistance and low friction.

Atomization

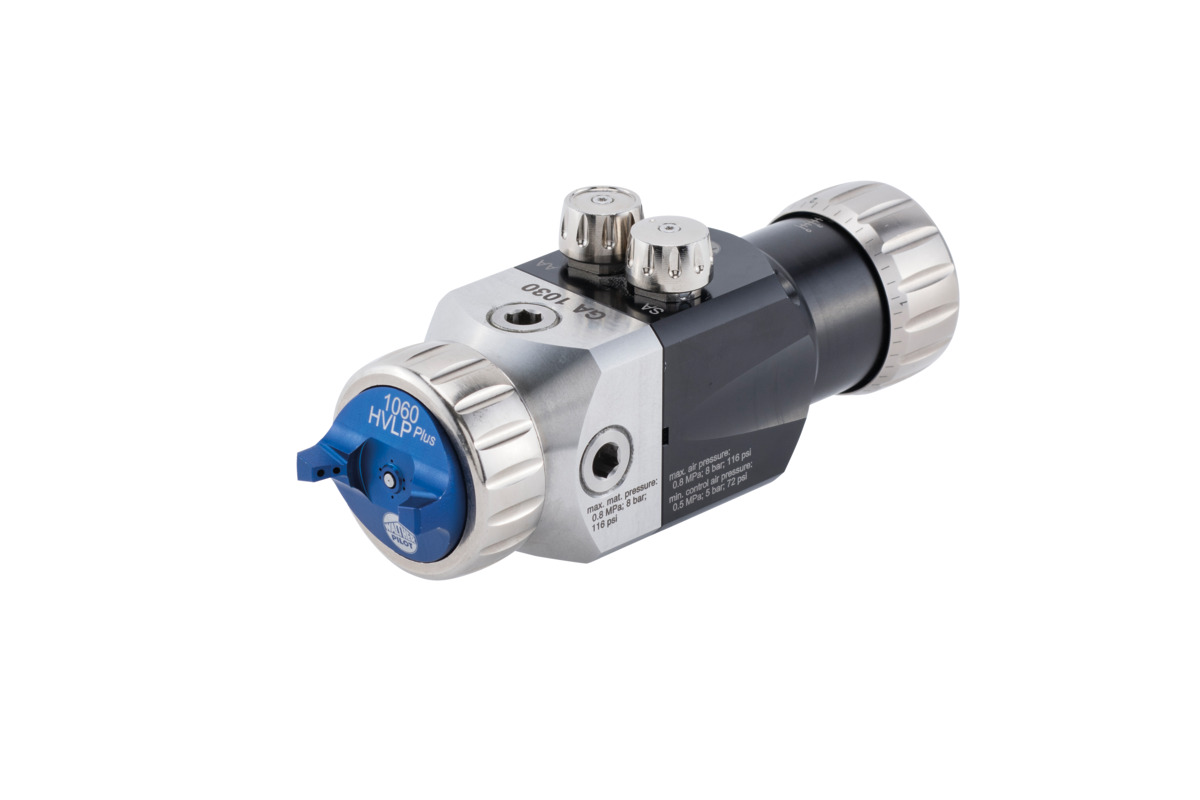

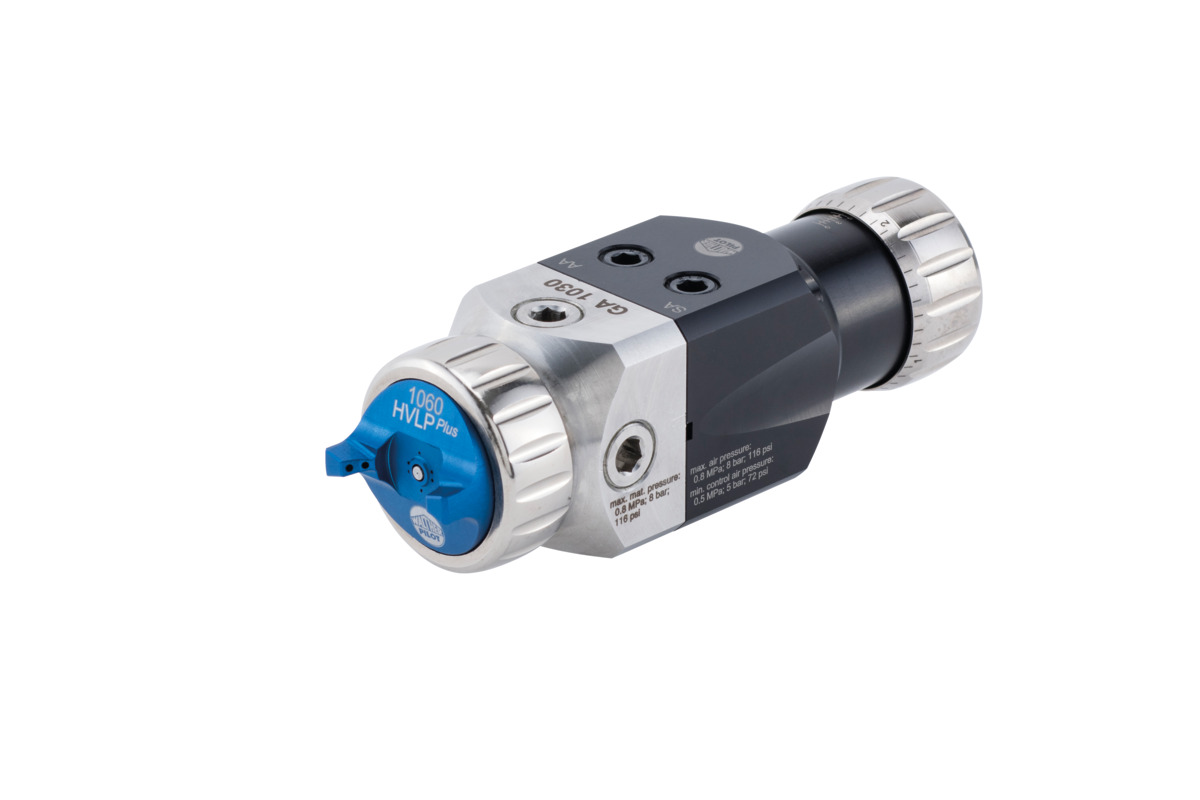

Conventional / HVLP / HVLP+ / ADH

Nozzle size

Ø 0.3 - 3.5mm

Processible materials

Solvent-based, Water-based, UV/moisture sensitive

Mounting

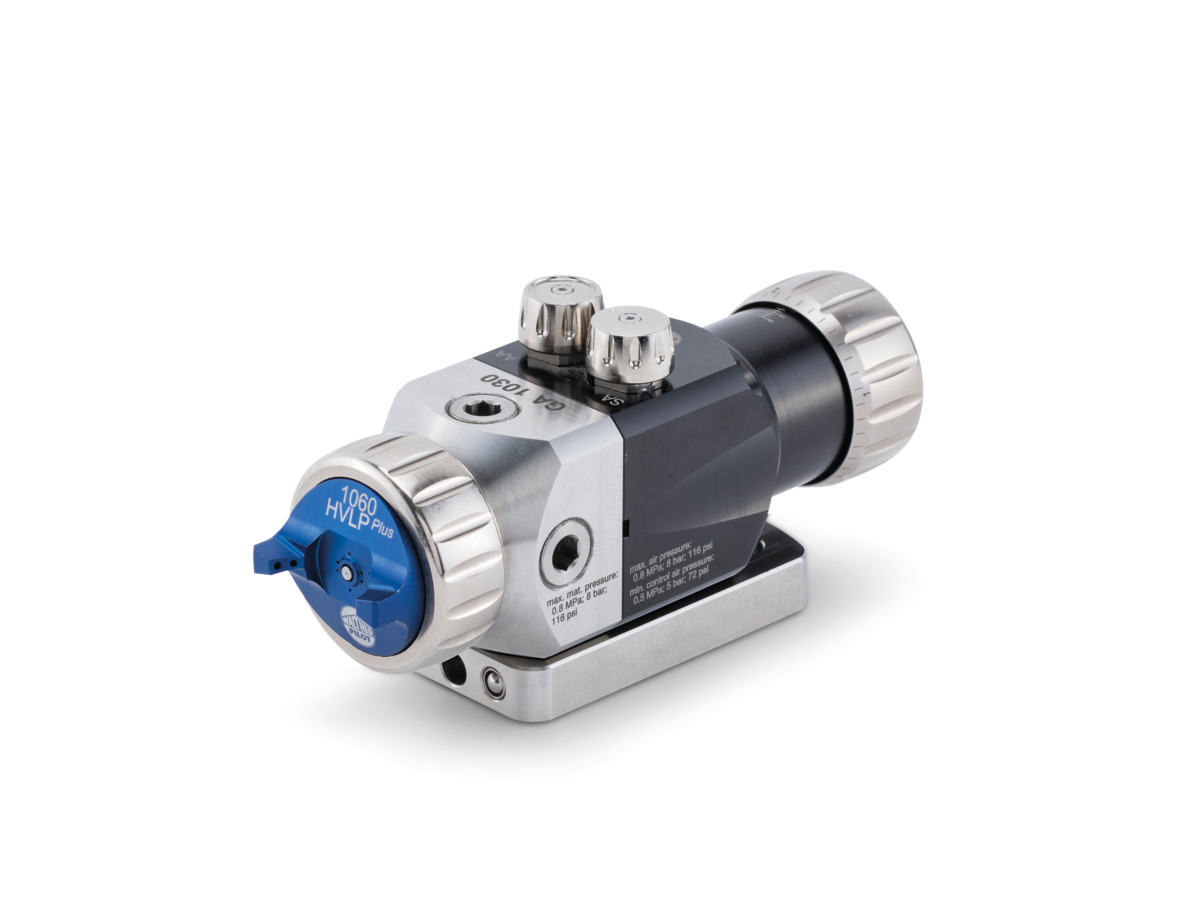

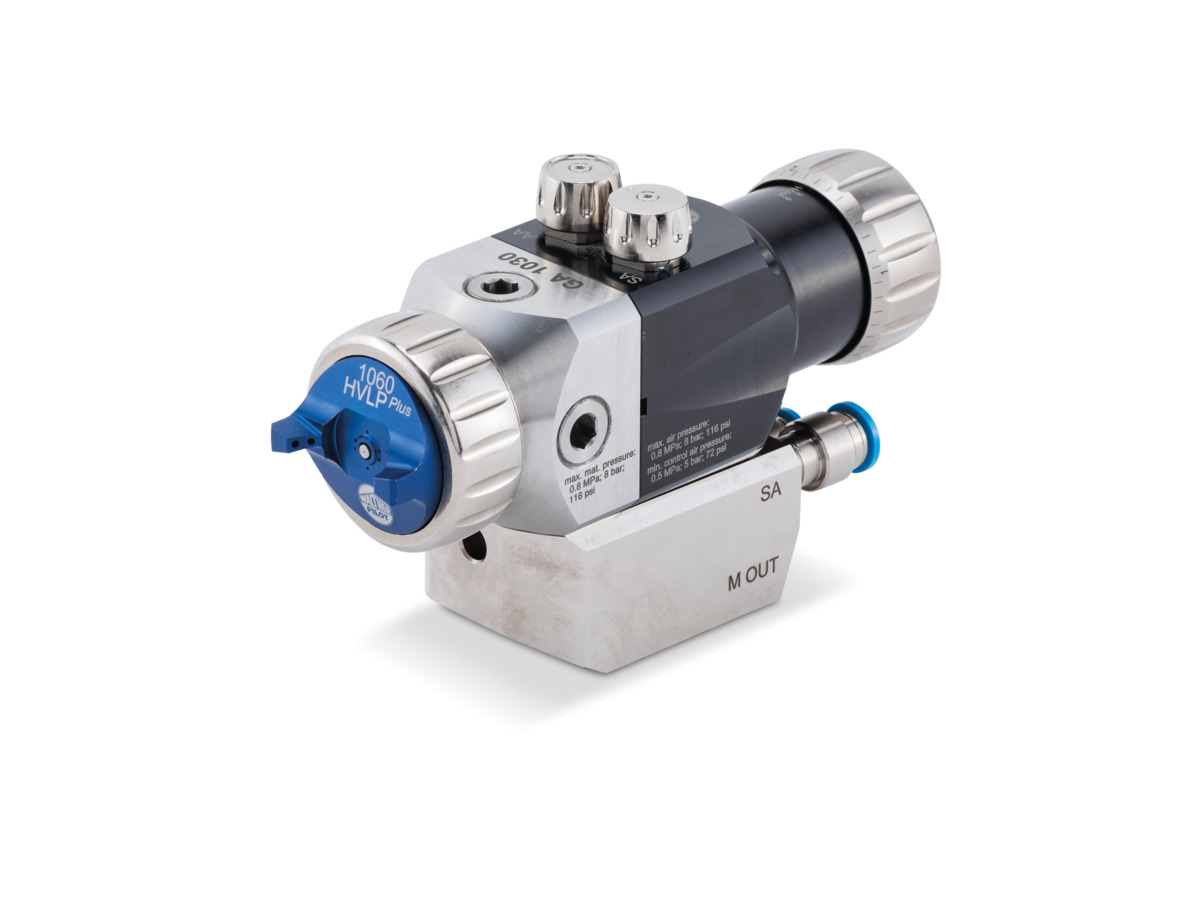

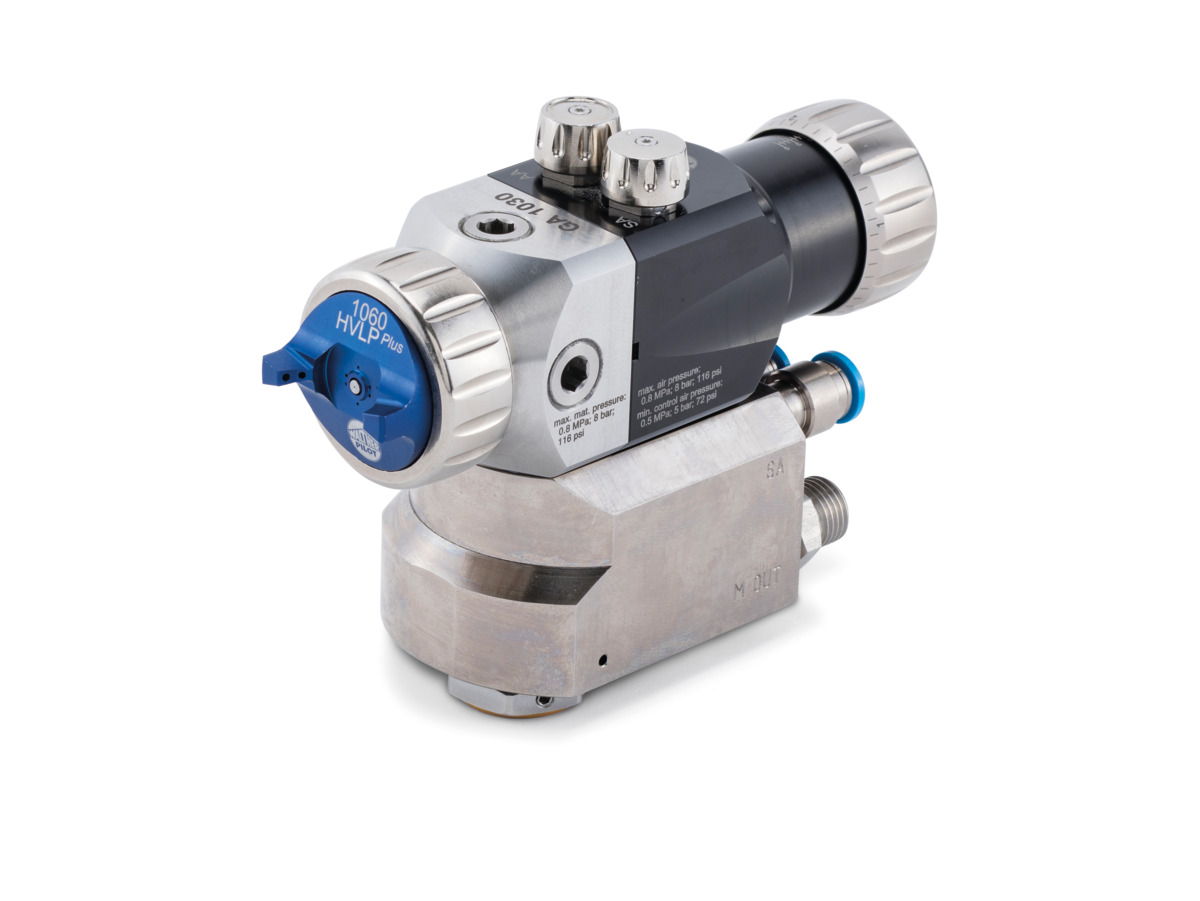

Adapter plate, direct mounting

Material wetted parts

Stainless steel

Material input

G 1/4"
