WA600

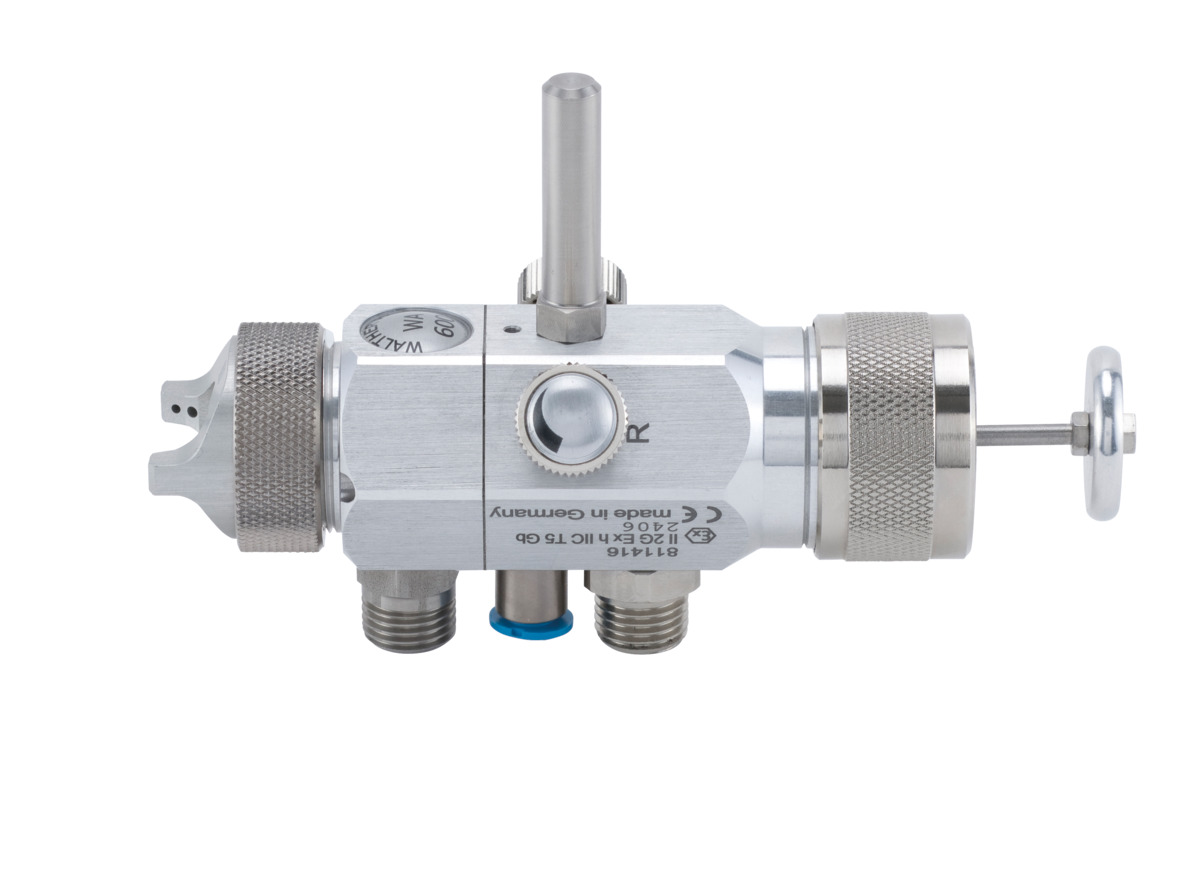

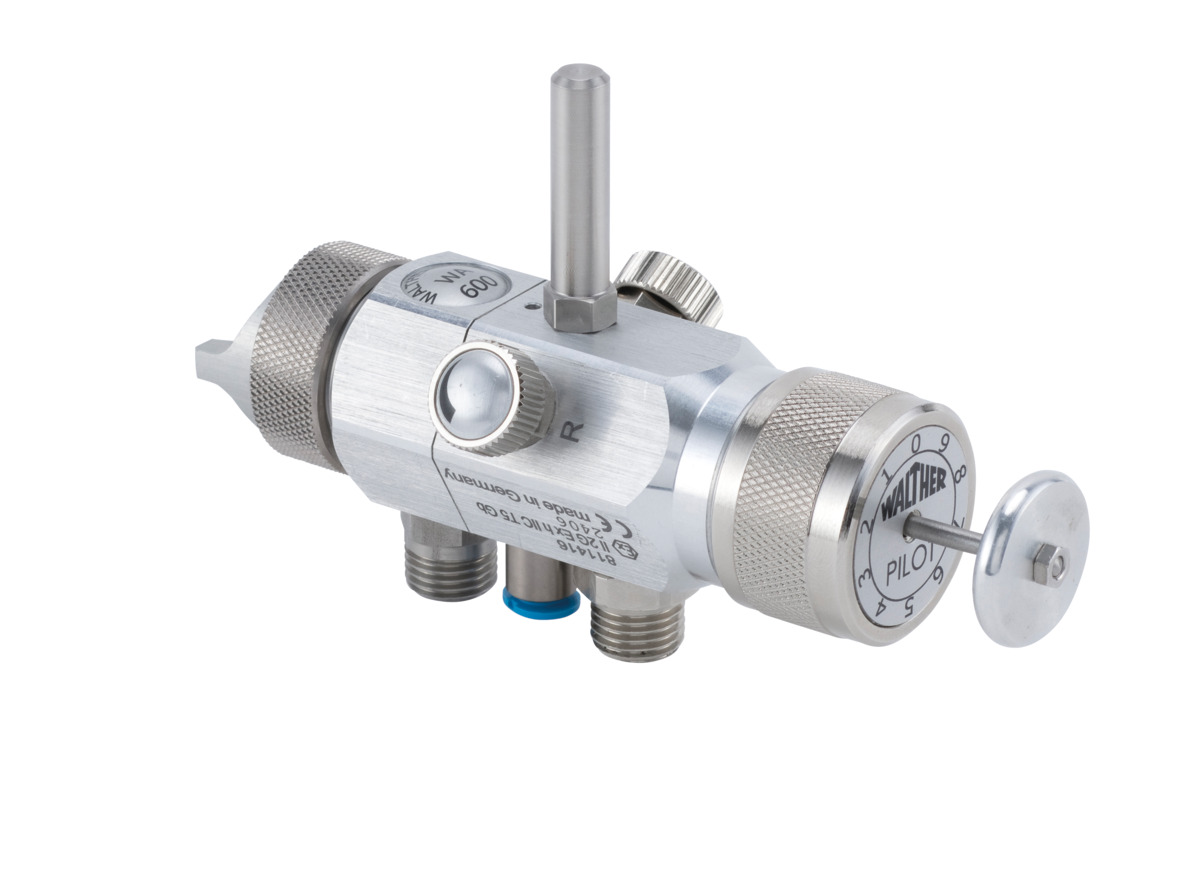

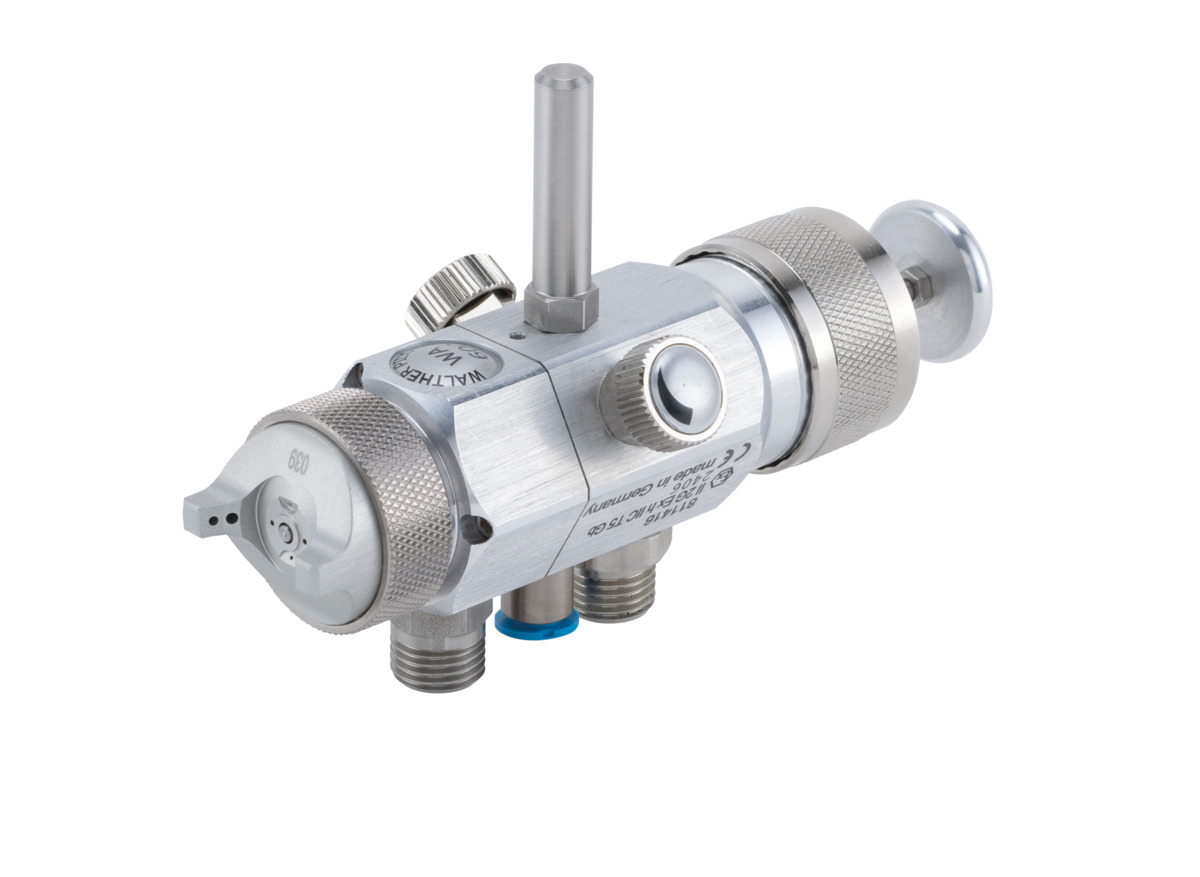

Compact, internally controlled automatic spray gun for robot applications with precise material quantity regulation. Provides the finest surface finish for release agents, low-viscosity solvent-based adhesives and paints.

Benefits

Benefit Checkmark

Easy maintenance and installation

The WA 600 automatic gun consists of two parts: a material-carrying front body and a gun rear section (piston housing). The uncomplicated disassembly enables easy maintenance and installation.

Benefit Checkmark

Versatile configuration options

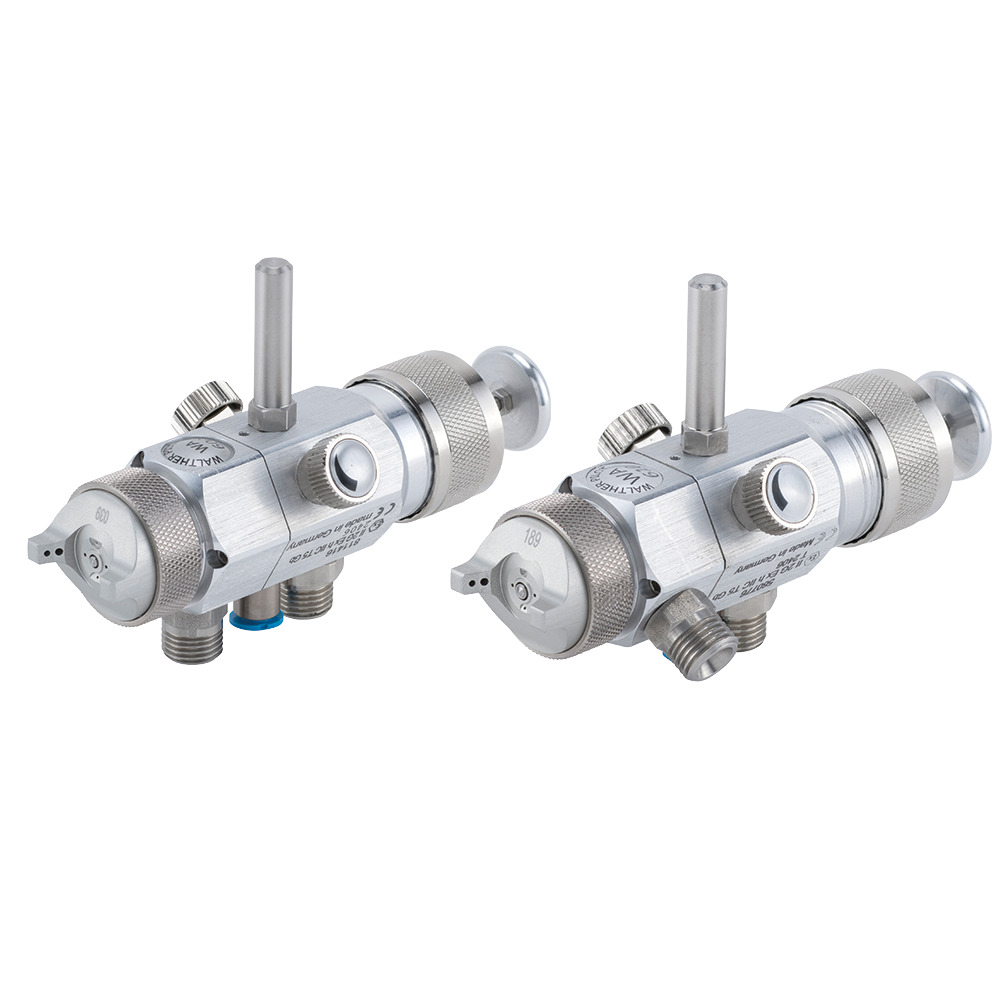

The automatic spray gun is available in medium-pressure, high-pressure and recirculation versions to meet different requirements.

Benefit Checkmark

First-class surface results

This compact automatic spray gun specializes in maximum precision and the finest surface finish.

Benefit Checkmark

Durable construction

All material-carrying parts are made of high-quality stainless steel for a durable and reliable construction.

Technical data

Material pressure
max. 8bar
Sound level
83 dB(A)
Processable materials
Solvent-based, Water-based
Nozzle sizes
0.3mm - 2.2mm
Product dimensions [LxWxH]
120x54x82mm
Weight [net/gross]
353g / 502g

Certifications

certificate ce
certificate ex
