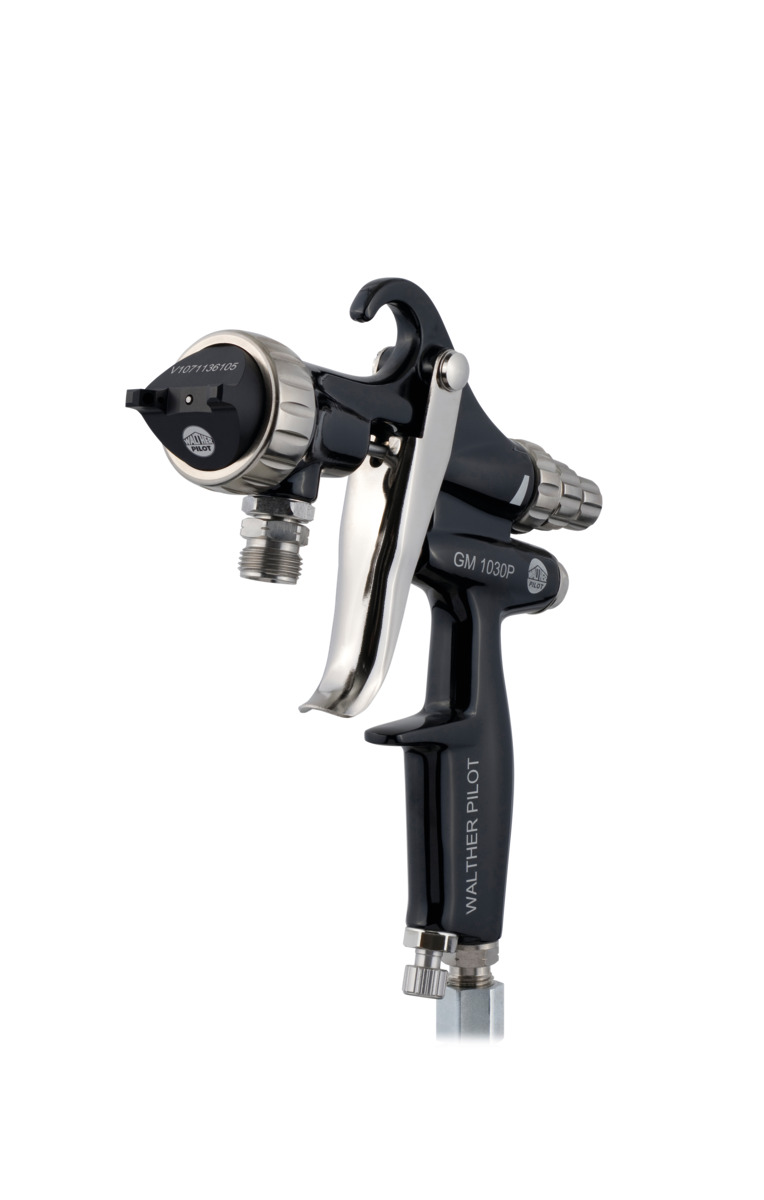

GM 1030P

Universal manual spray gun for first-class coating results with high application efficiency and versatile application options. Ideal for paints, release agents, dispersion and solvent-based adhesives and other media.

Benefits

Benefit Checkmark

Once adjusted, the air volume is automatically adjusted when changing from round to flat spray without having to readjust the atomizer air.

Benefit Checkmark

Overspray is reduced by up to 15% and material costs are significantly lowered.

Benefit Checkmark

Saves spare parts and maintenance costs: two-part nozzle and nozzle nut. When necessary, it is sufficient to replace the nozzle head. Long-life needles and improved nozzle packing design also contribute to lower maintenance costs and minimal downtime.

Benefit Checkmark

The nozzle and needle size in use can be easily identified from the outside of the gun. The gun does not have to be disassembled to identify a required spare part. Downtime is also minimized by the use of durable, high-quality components.

Benefit Checkmark

The low weight and ergonomic design support fatigue-free work, even over longer periods of time.

Technical data

Material pressure
max. 8bar
Sound level
85 dB(A)
Processable materials
Solvent-based, Water-based
Nozzle sizes
0.5mm - 2.5mm
Operating temperature
43°C
Product dimensions [LxWxH]
200x40x180mm
Weight [net/gross]
468g / 692g

Certifications

certificate ce
certificate ex
