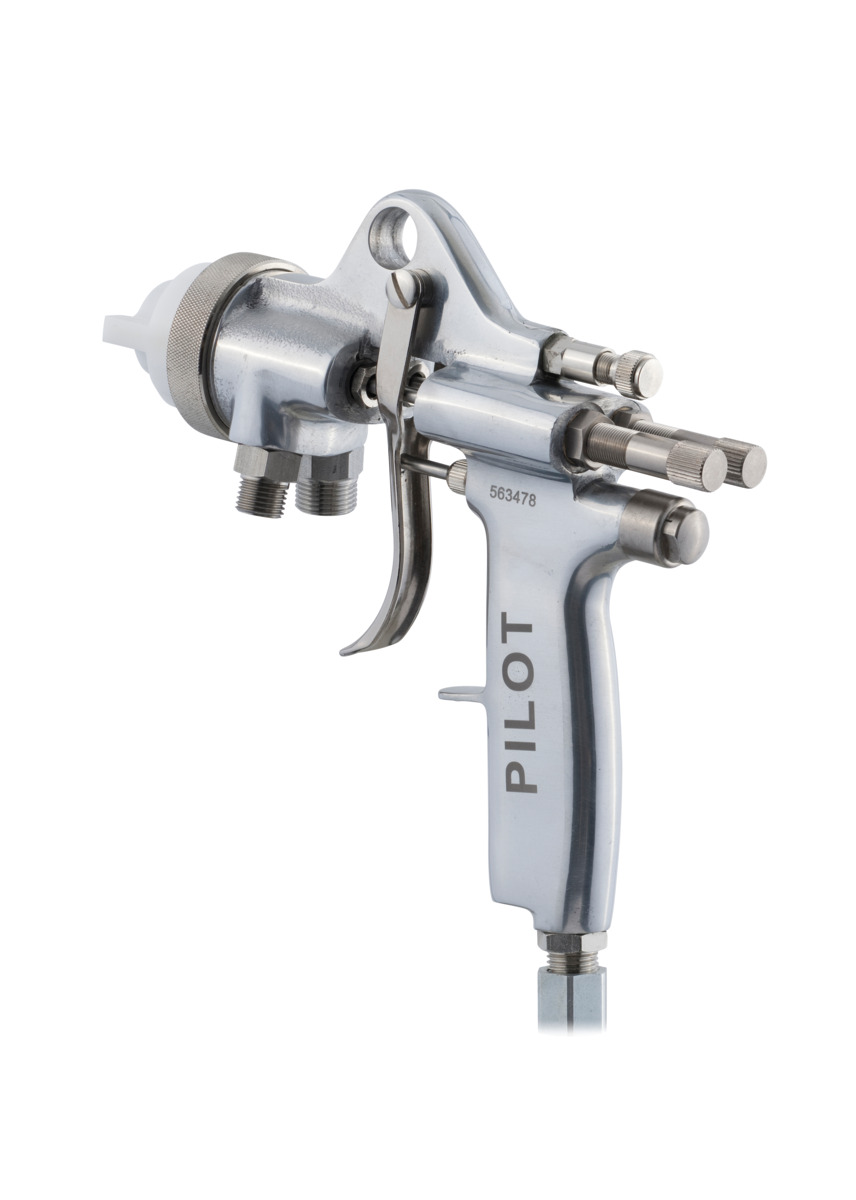

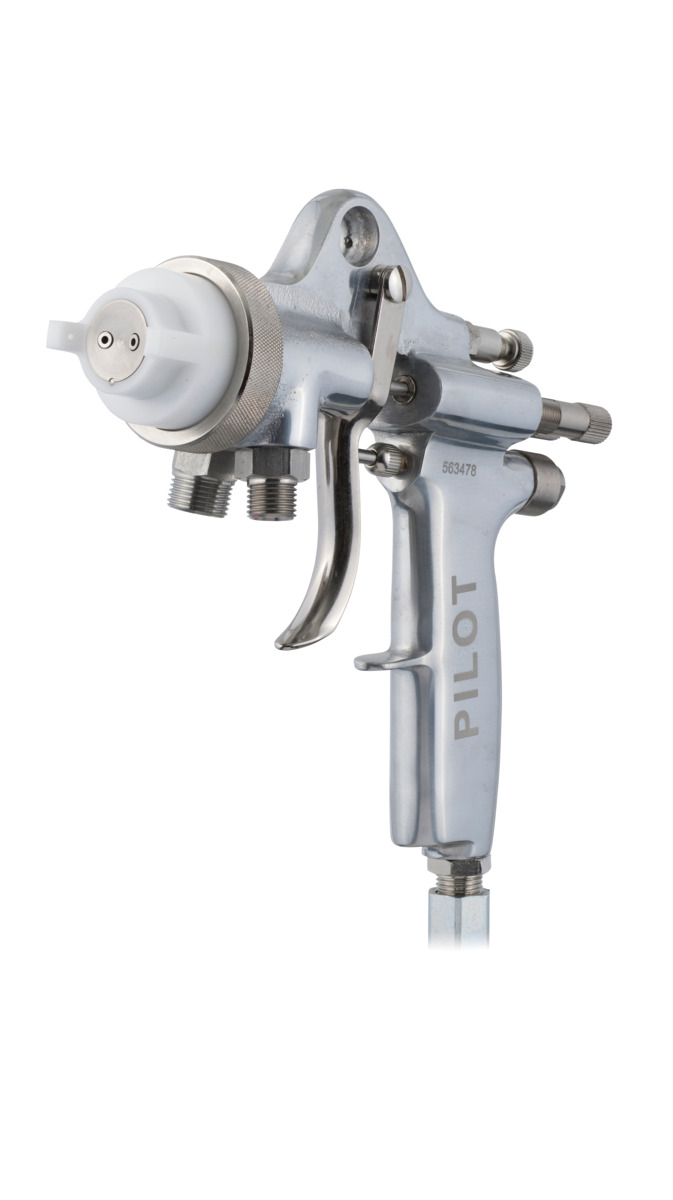

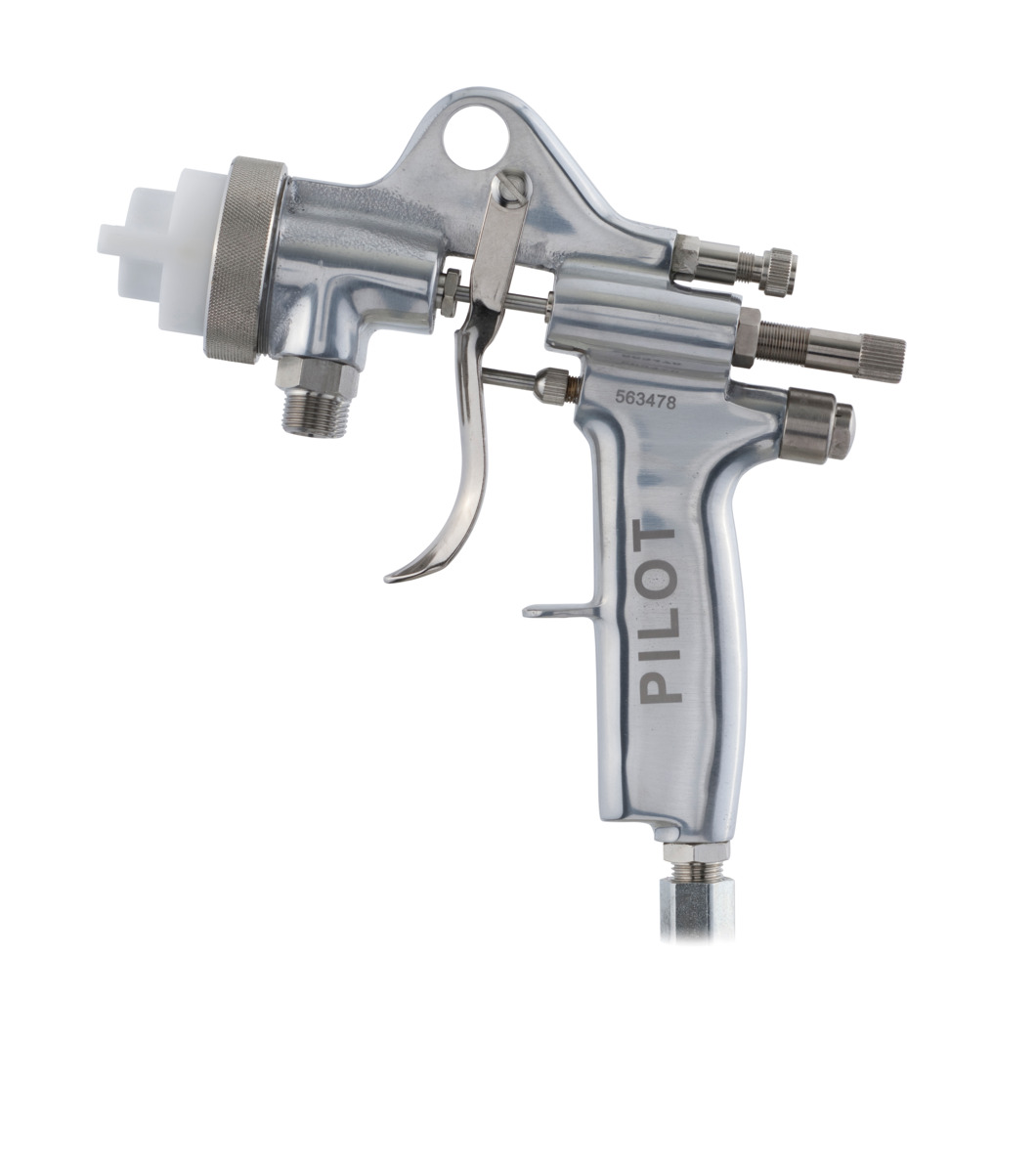

Pilot Misch-N

Mirroring spray gun for accurate and efficient application of silver and copper reaction solutions. The needle stroke adjustment ensures an optimum 1:1 mixing ratio. The material components are fed separately and mixed in the spray jet.

Benefits

Benefit Checkmark

Universal application versatility: coating of almost all substrates

The two-component spray gun opens up the possibility of coating a wide range of substrates, including glass, wood, ceramics, plastic and more. This makes it a universal solution for various industries and applications.

Benefit Checkmark

Precise mixing control: Optimal results

By feeding the material components separately and adjusting the mixing ratio using nozzle sizes and material pressure, users can precisely control the application to achieve optimal results.

Benefit Checkmark

Flexibility through adjustable jet width

The ability to adjust the jet width as required allows greater flexibility in adapting the coating to different requirements and surfaces.

Benefit Checkmark

Nozzle options for all requirements

Nozzles for different material components are available on request. This makes it possible to adapt the spray gun precisely to the specific requirements of an application.

Technical data

Material pressure
max. 8 bar
Sound level
83 dB(A)
Processable materials
Solvent-based, Water-based
Nozzle sizes
0.5mm - 2.5mm
Operating temperature
max. 43°C
Product dimensions [LxWxH]
170x50x195mm
Weight [net/gross]
848g / 1072g

Certifications

certificate ce
certificate ex
