    Overview

    For pulsation-free and continuous conveying of liquid materials such as paints, oils, release agents and resins. No escape of vapors or gases to the environment.

    Benefits

    Benefit Checkmark

    Compressed air inlet fitting with safety valve

    Benefit Checkmark

    With riser pipe and upper material removal ball valve

    Benefit Checkmark

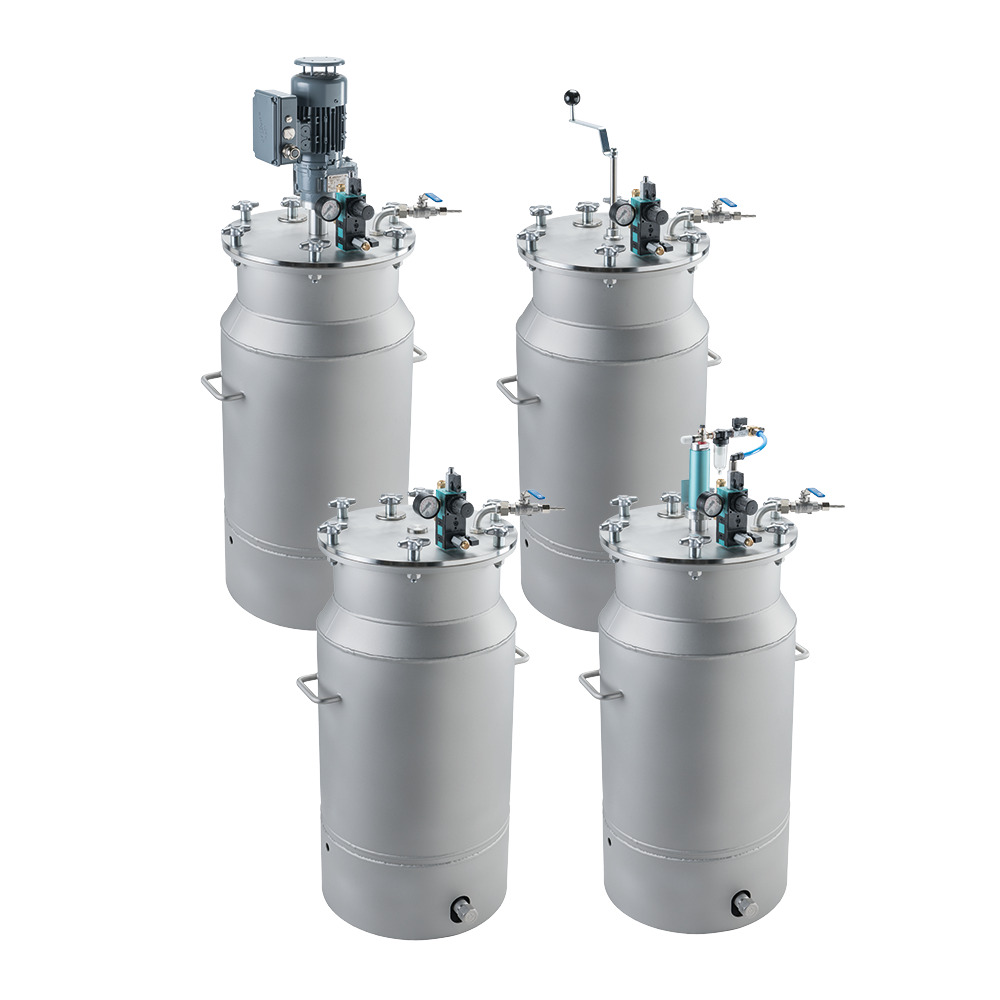

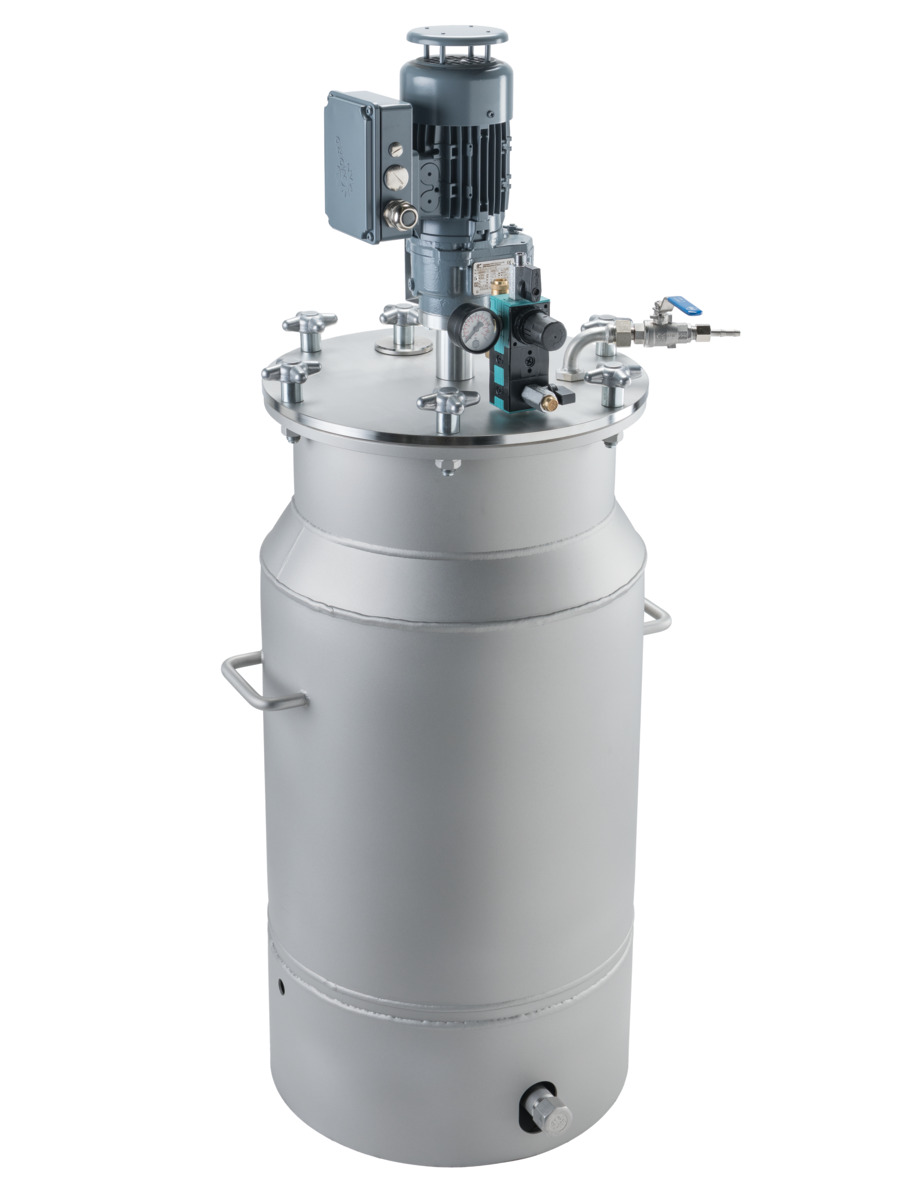

    Agitator optional

    Technical data

    Capacity
    ca. 90 Liter
    Tank made of
    Stainless steel / galvanized steel
    Operating pressure
    max. 2bar / 6bar
    Air connection
    R 1/4"-AG
    Upper material outlet
    R 3/8"-AG
    Inner diameter
    442mm
    Total height without agitator
    1064mm

    Customer references

    Application examples from various industries will give you an insight into how our products and solutions are used in practice.
    Go to customer references
