Name: Extraction wall type 90 W / 90 WS / 90 K
Brand: WAGNER

The dry extraction units type 90 are suitable for medium to large workpieces, which can be placed in front of the extraction surface. Available in 3 different variants.

Show more Show less

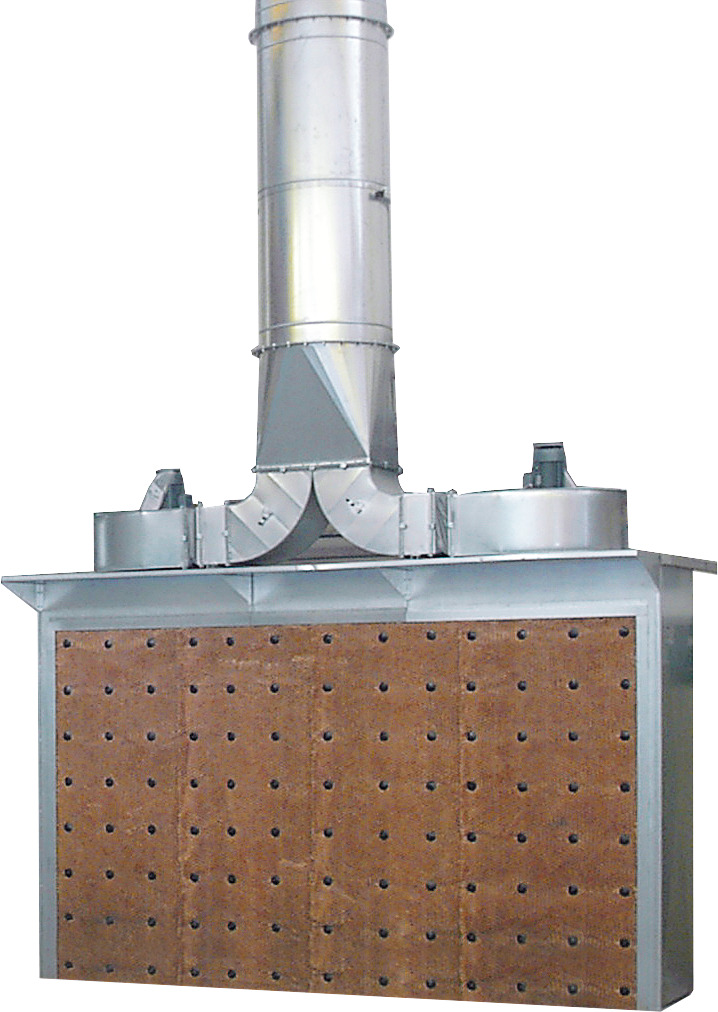

TYPE 90 W

A modern modular system makes it possible to combine the 1 m and 1.5 m wide basic elements, which are equipped with roof sections, into any desired working widths.

TYPE 90 WS

Extraction wall with movable side walls 1 x 480 or 2 x 480 mm deep depending on size and roof section to optimize the flow around the workpieces.

TYPE 90 K

Extraction wall with fixed front end 1000 or 2000 mm deep, depending on size, to separate the painting workstation from other production areas (front end optionally with drive-in slot for crane loading).

Type

10 / 20 / 30 / 40 / 50 / 60 / 70

Working width (mm)

1000 / 1500 / 2000 / 2500 / 3000 / 3500 / 4000

Working height (mm)

2100

Overall height (mm)

2710 / 2780 / 2850 / 2850 / 2780 / 2850 / 2850

Depth (90W/WS) (mm)

750

Fan (model)

NZ350 / NZ400 / NZ450 / NZ450 / 2x NZ400 / 2x NZ450 / 2x NZ450

Exhaust volume (m3 /h)

3600 / 6500 / 8600 / 10000 / 12800 / 15000 / 17000

Motor power (kW)

0.75 / 1.35 / 2.0 / 2.0 / 2x 1.35 / 2x 2.0 / 2x 2.0

Extraction wall type 90 W / 90 WS / 90 K
