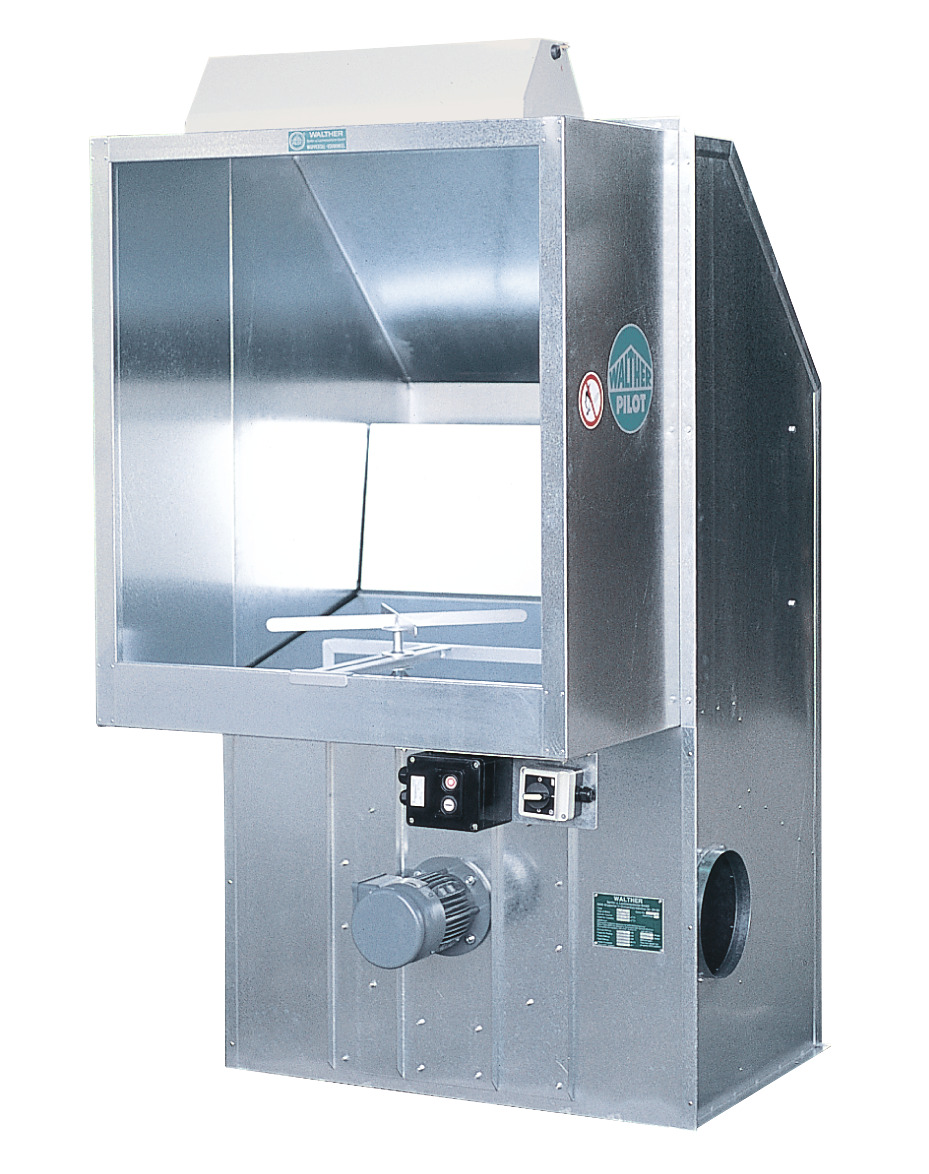

Small spray booth type 77

Spray booth for small workpieces, which are placed on the turnstile or held in the hand during painting.

Overview

Scope of delivery:
Delivered fully assembled

Benefits

Benefit Checkmark

Also suitable for use with larger nozzle sizes / higher atomizer pressure

Technical data

Type
77/1 / 77/2 / 77/3 / 77/4
Exhaust air [m³/h]
2600 / 3100 / 3420 / 3520
Working witdh [mm]
800 / 1000 / 1200 / 1450
Distance to center of pipe connection [mm]
140
Total depth [mm]
1000
Total height [mm]
1900
Fan type
NZ350
Motor [kW]
0.75
Exhaust air connection
can be connected on the left and right
Baffle plates
hooked in
Filter change
possible without tools
Filter system
Multi-layer filter made from waste paper
Screw connection
required on the floor
